MAIN FEATURES

  • Can be used on 70 mm round or octagonal tube.
  • Manual mechanical limit-switch with screw-based progressive adjusting.
  • Universal head for applying on any anchoring plate.
CODE 001Y6080A121MOR 001Y6100A101MOR 001Y6120A081MOR
Torque (Nm) 80 001E002 120
Rpm speed (turns/min) 12 10 MAX 8
Hoisted weight (Kg)* 114 143 171
Limit switch revolutions (revolutions) 23 23 23
Duration of operation (min) 4 4 4
Protection rating (IP) 44 44 44
Absorption (A) 1,65 1,68 1,68
Power (W) 385 393 393

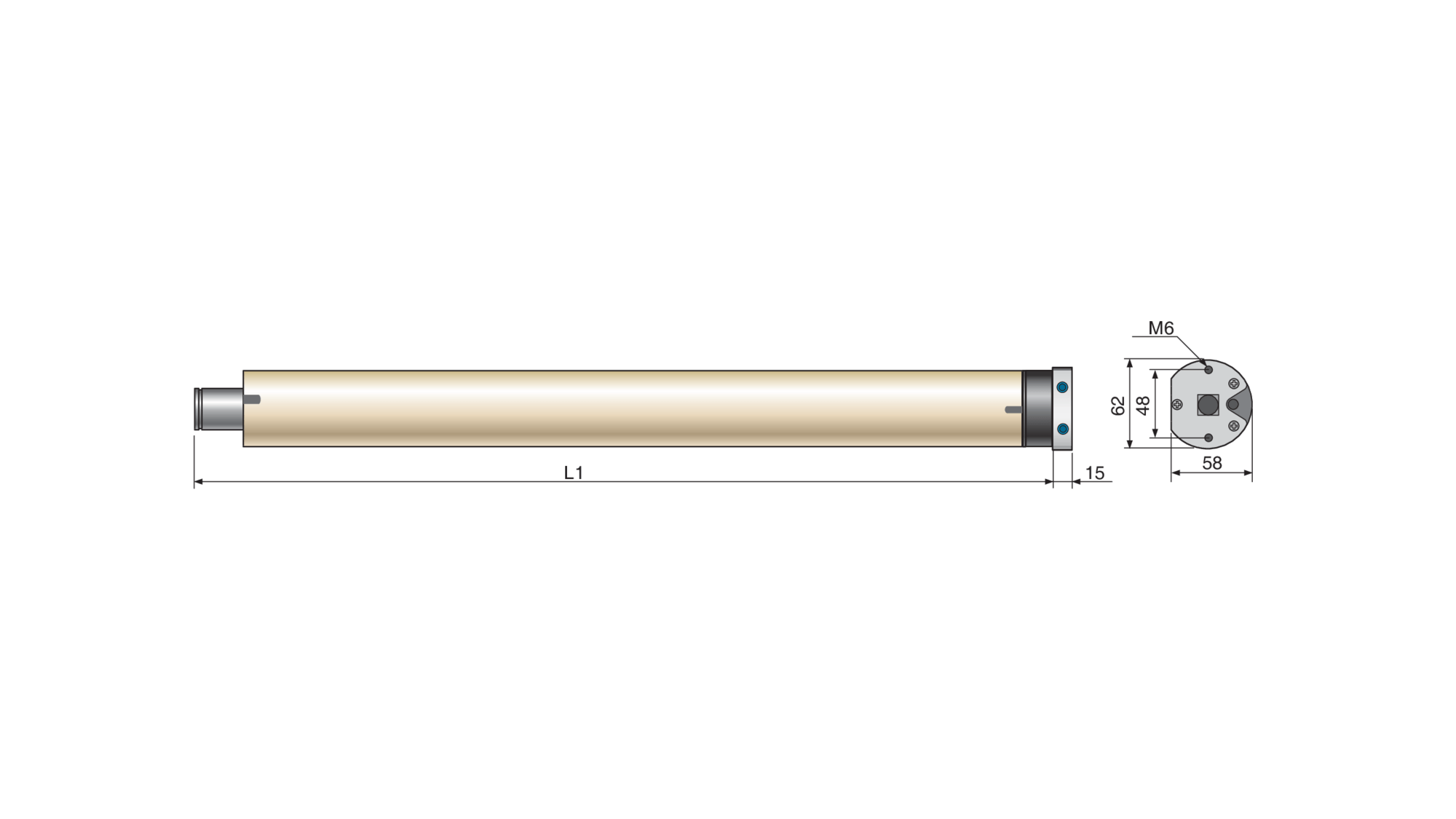

Length (mm) = L1 710 710 730
Weight (Kg) 4,8 4,85 5,1
Package dimensions (mm) 860 x 120 x 120 860 x 120 x 120 860 x 120 x 120
Weight of packed motor (Kg) 5,2 5,2 5,3

OUR RANGE

Octagonal adapters Ø 55 mm

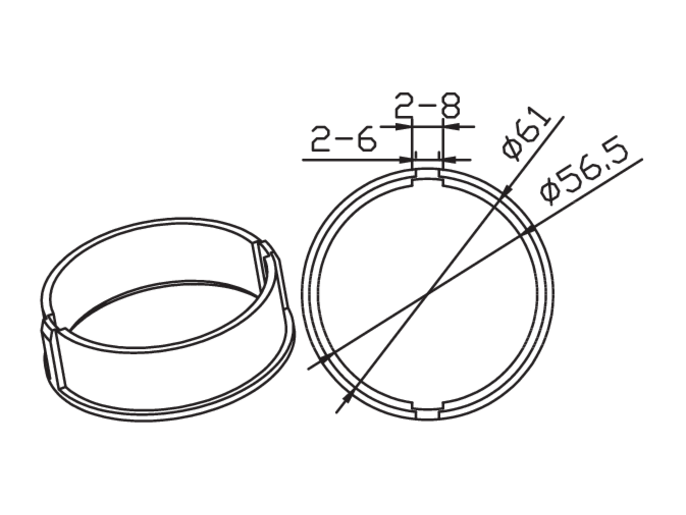

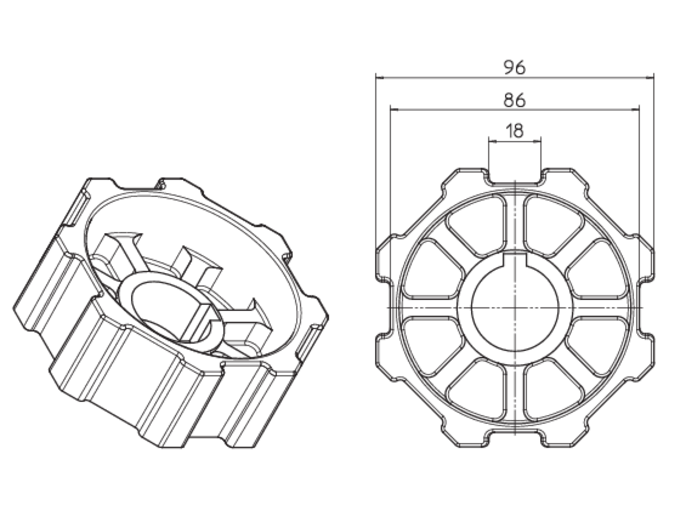

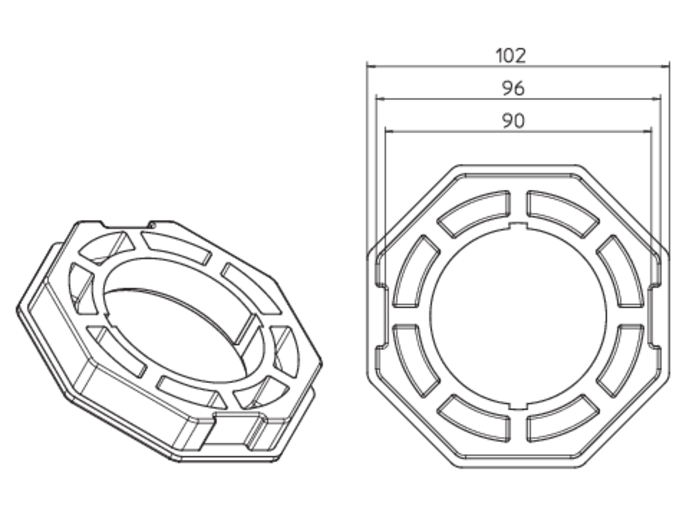

001YK6105

102 x 2 mm Octagonal piece.

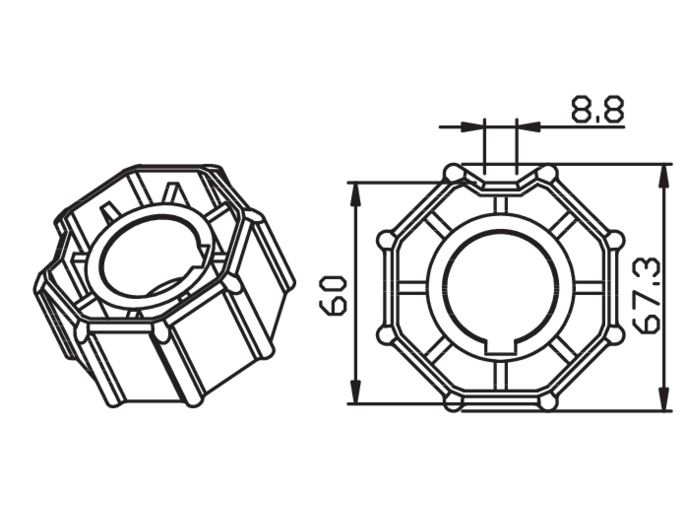

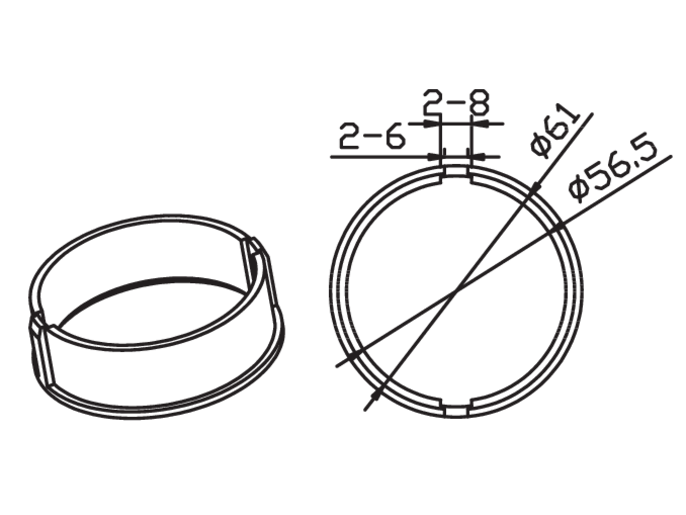

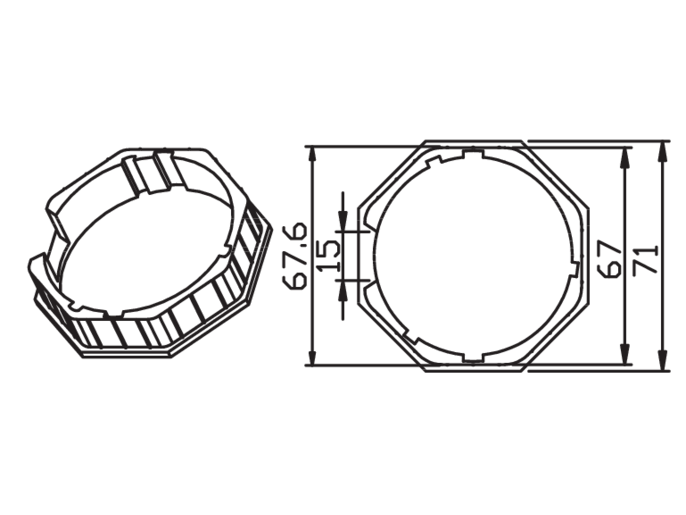

001YK6115

70 x 1 mm octagonal.

Circular adapters Ø 55 mm

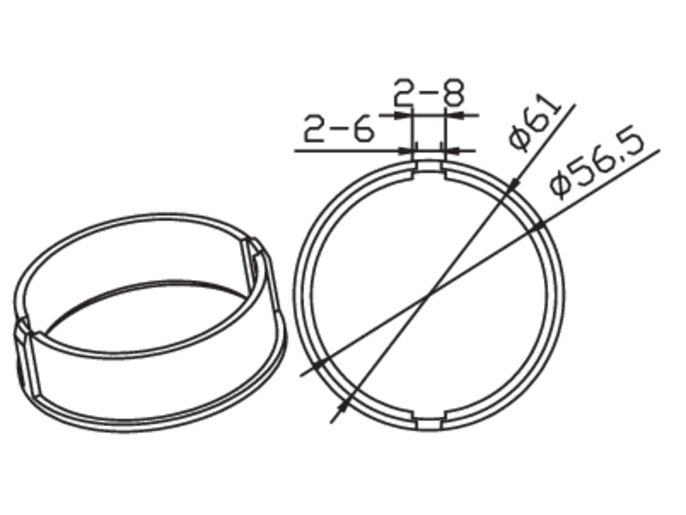

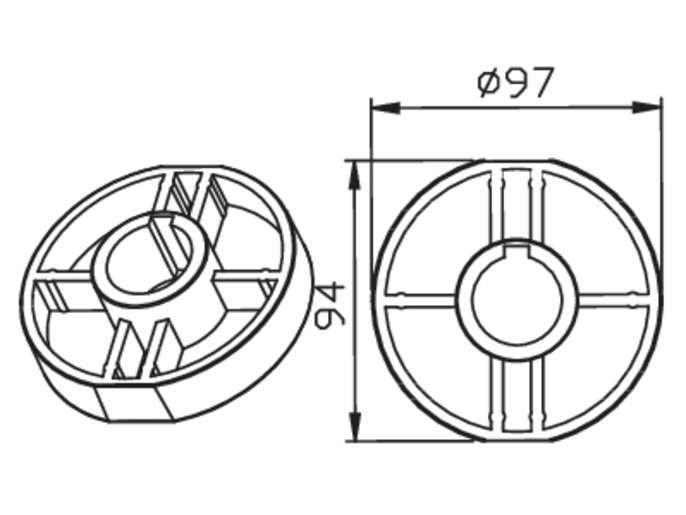

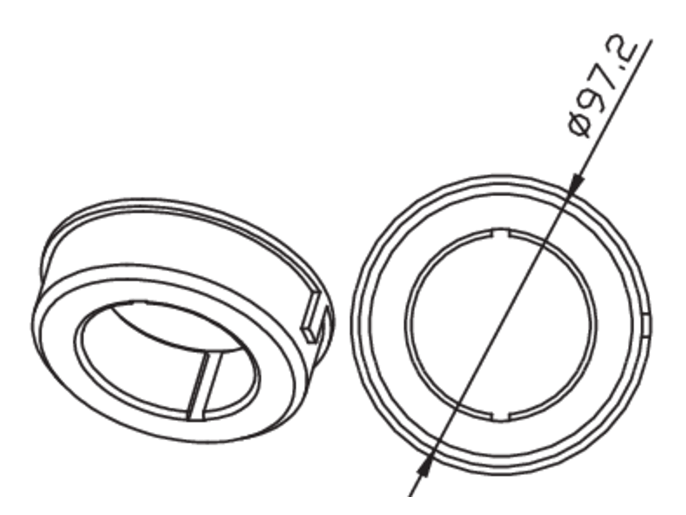

001YK6107

Ring 102.5 x 2.5 mm.

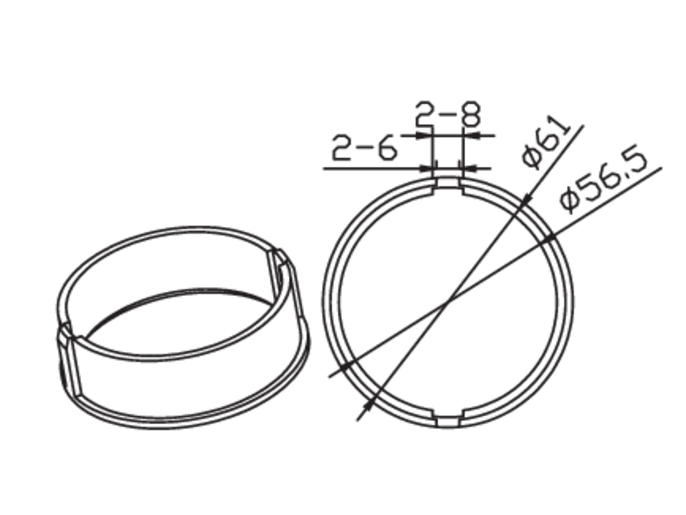

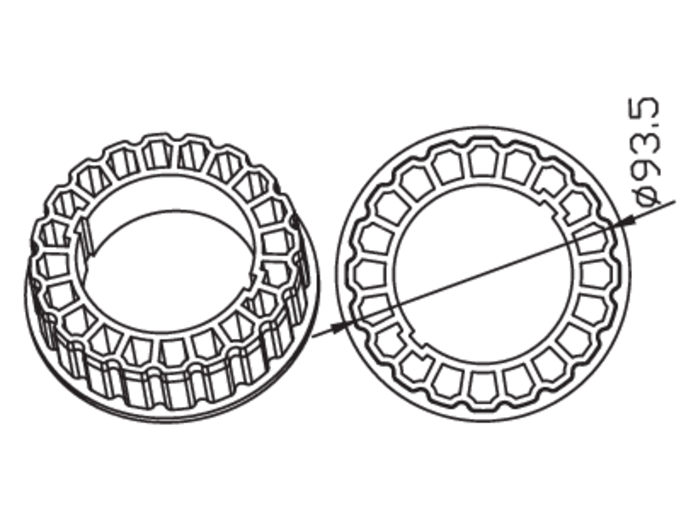

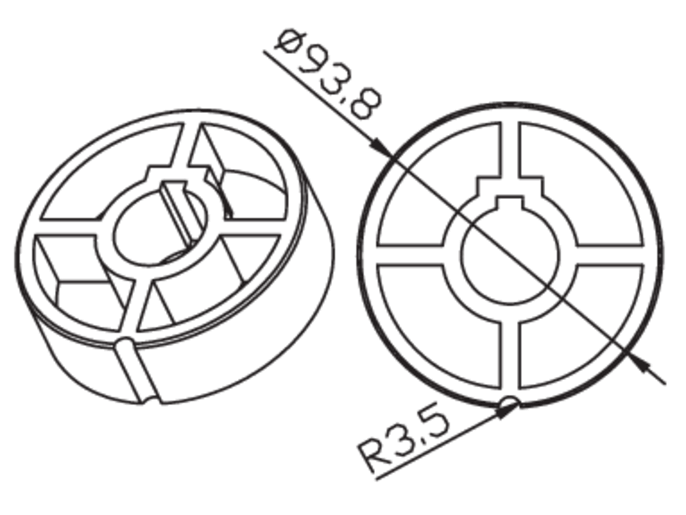

001YK6109

Ring 98 x 1.5 mm.

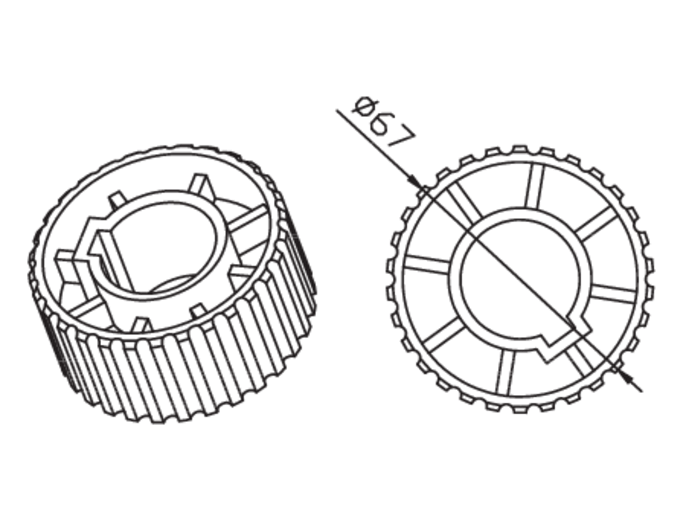

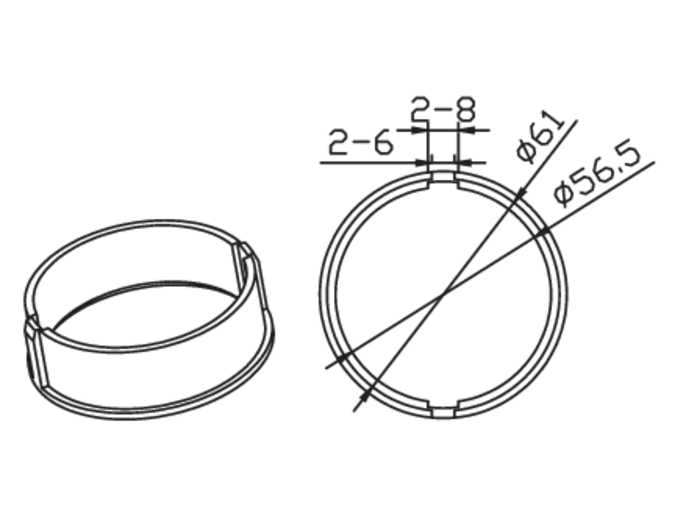

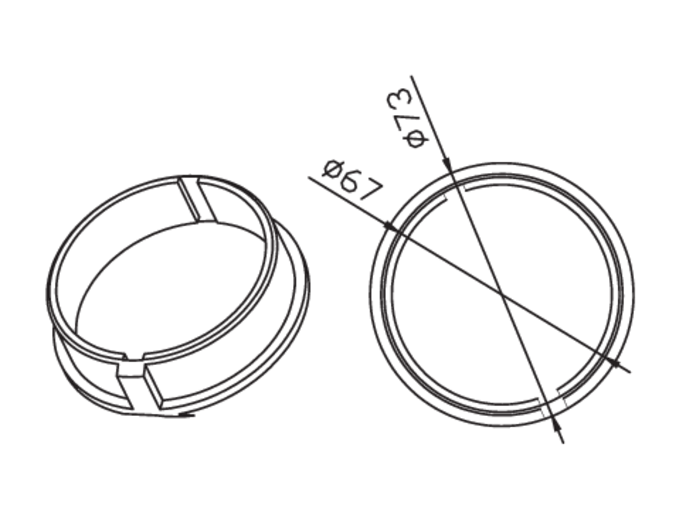

001YK6113

Ring 70 x 1.2 mm.

001YK6116

Adapter crown D.59.

Adapters to head Ø 55 mm

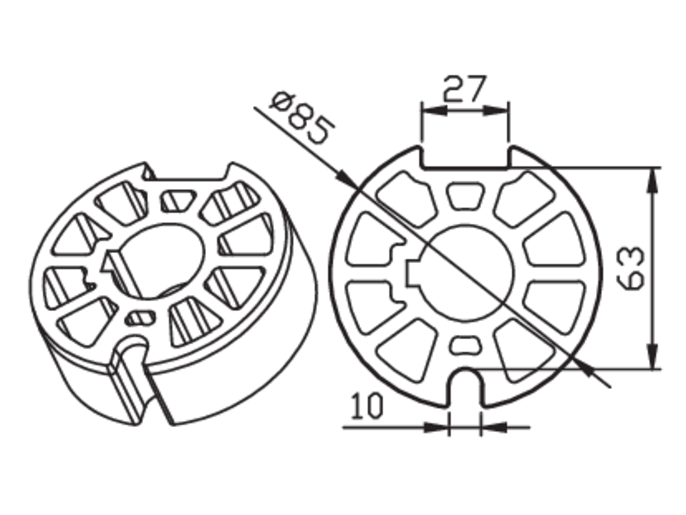

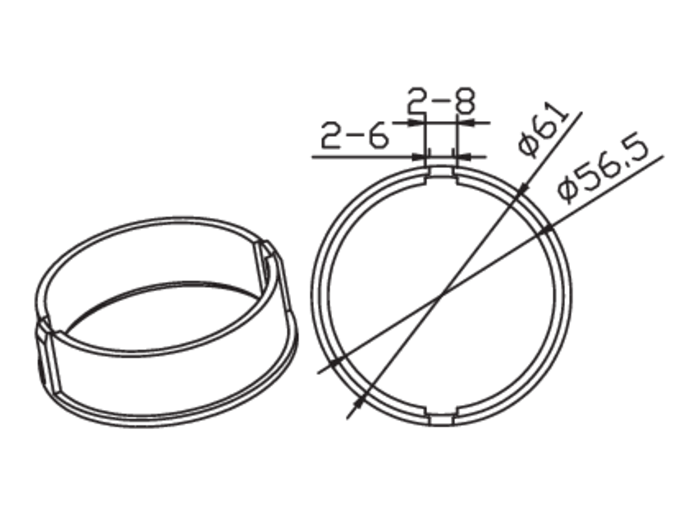

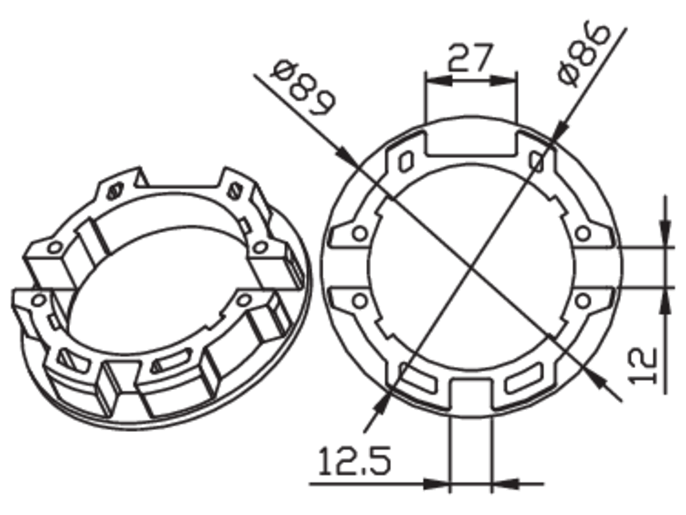

001YK6108

Ring 90 x 1.5 mm.

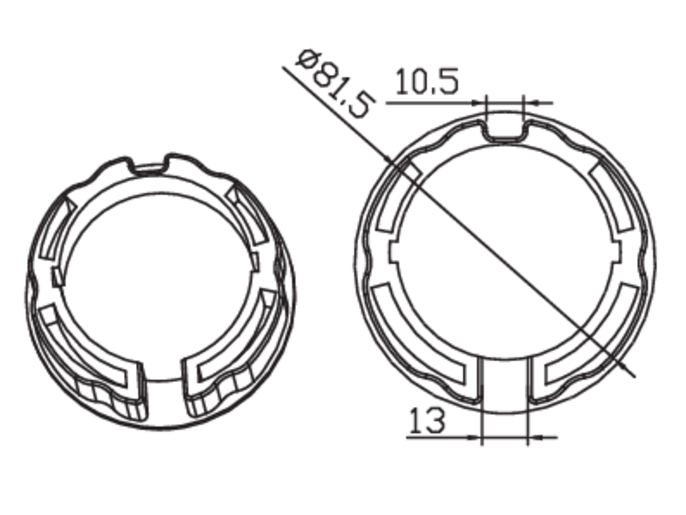

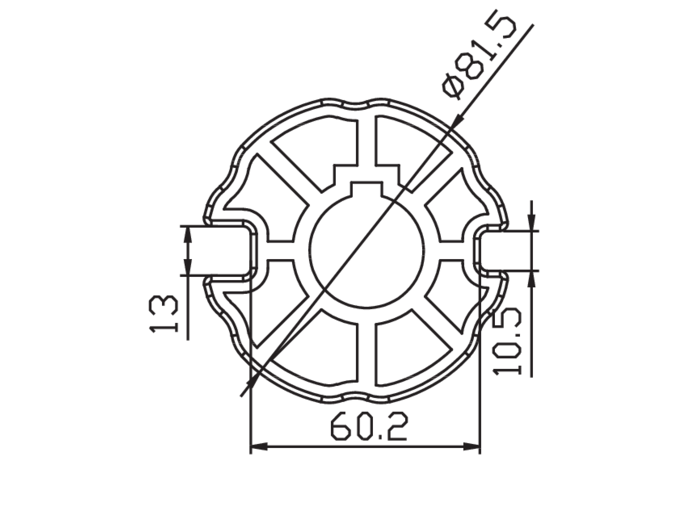

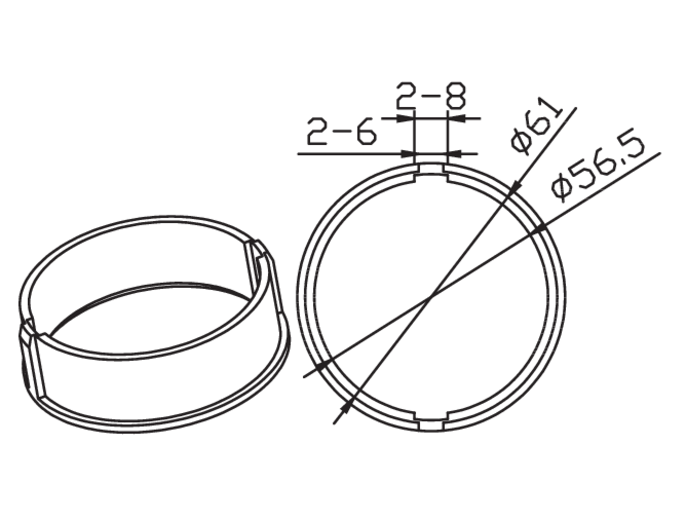

001YK6112

85 x 1 mm ogive.

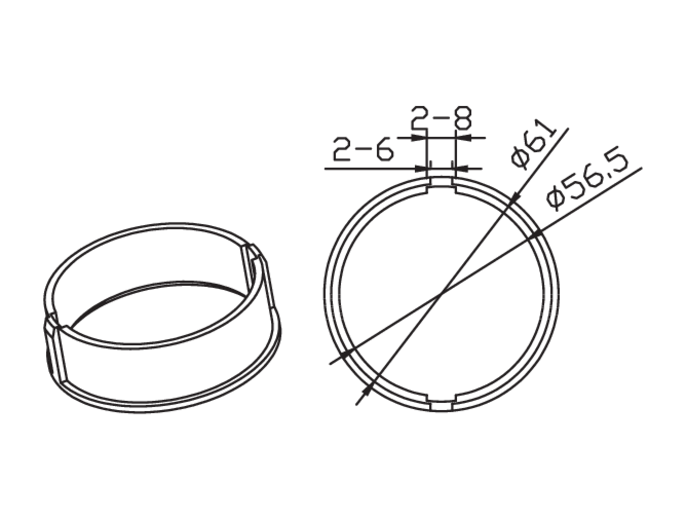

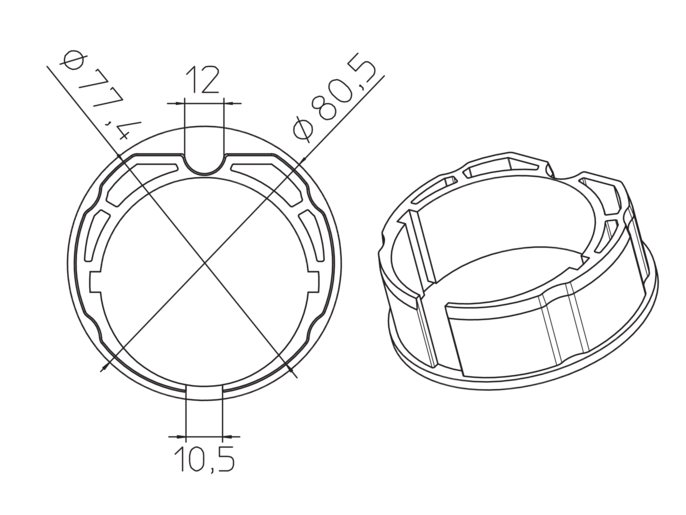

001YK6114

80 mm tilted ogive.

Ø 55 mm supports

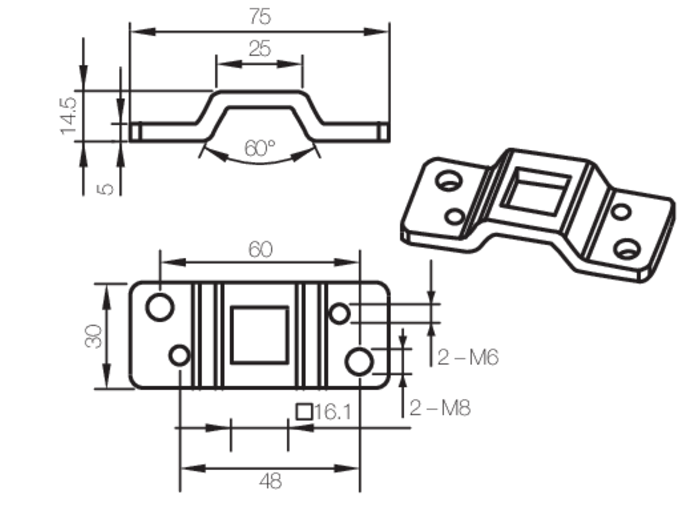

001YM0118

Omega Q16 with double, 48 and 60, center distance and threaded holes.

001YM0119

Omega with Q16 saddle on 100 x 1000 plate.

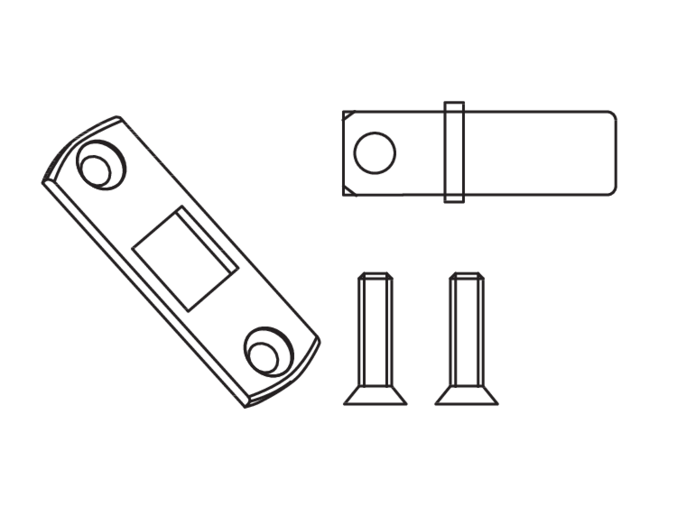

001YM0120

Q16 safety insert for the MO 6.

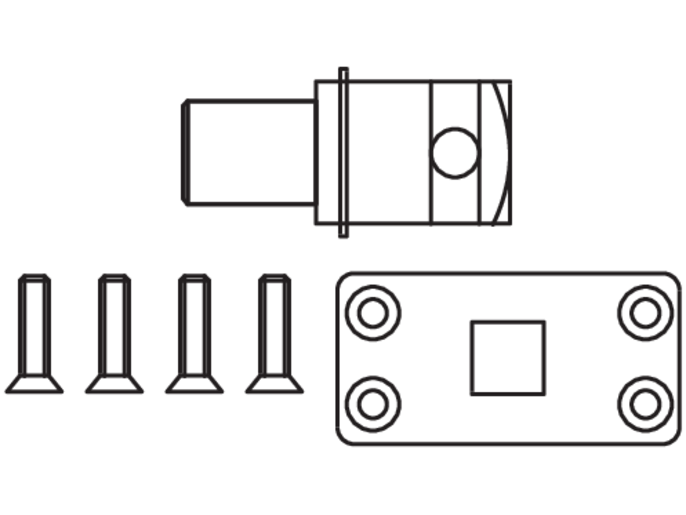

001YM0121

Q16 safety insert for the MOM 6.

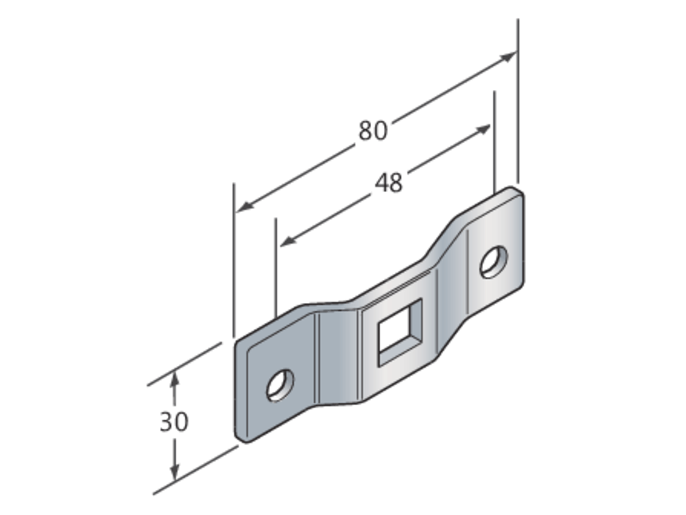

001YM0031

Omega with 48 mm center distance Q16 housing.

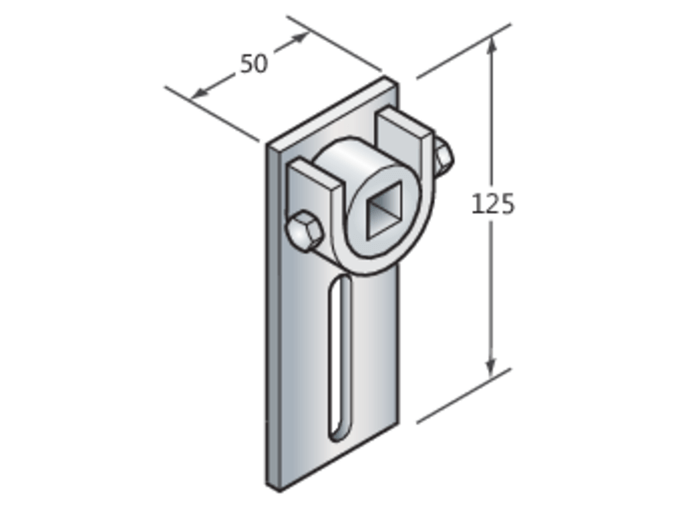

001YM0002

Settable brace with Q16 bushing.

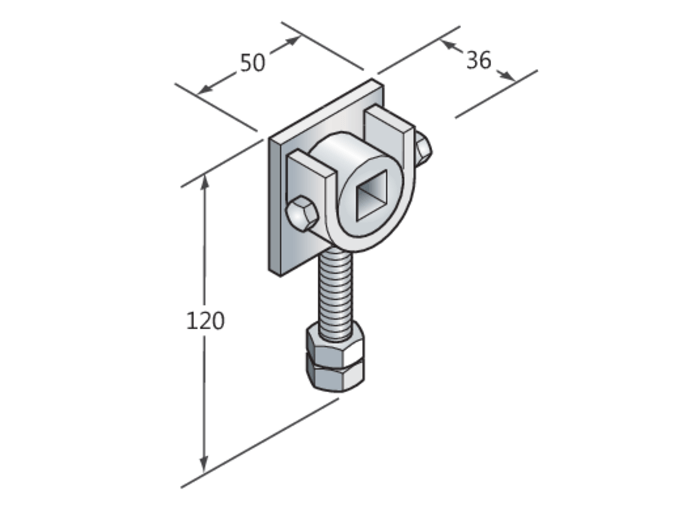

001YM0003

M12 screw brace with Q16 bushing.

001YM0111

Multi-hole plate for: MOM 6 and MO6. Dimensions: 100 x 100 mm.

001YM0112

Plate with pin for: MOM 5 and MO6.

001YM00381500 mm White jointed rod with hook.

001YM0040

45° universal joint with 7mm hexagonal eyelet.

001YM0045

Eyelet with 7 mm hexagonal rod.

001YM0050

90° universal joint with 7 mm hexagonal rod.
