ZLX24

THE ULTIMATE
CONTROL BOARD
FOR 24V SWING
GATE MOTORS

WATCH THE VIDEO >

X

ZLX24SA

ZLX24SA front

2 MODELS

SAME ADVANCED, INTELLIGENT,
PREDICTIVE, ELECTRONIC
FEATURES

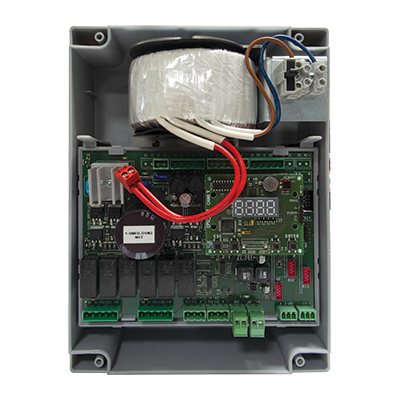

ZLX24MA

ZLX24MA front

ZLX24SA

ZLX24SA dimension

2 MODELS

DIFFERENT
BOX DIMENSIONS

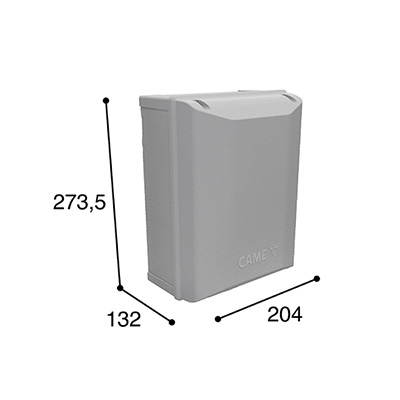

ZLX24MA

ZLX24MA dimension

ZLX24SA

PLUS:
> Graphic display
> 1000 users
> 4 settable inputs
> Output B1 - B2
> Clock module
> PCB plastic cover

2 MODELS

ADVANCED ELECTRONIC FEATURES
FOR TYPICAL USE
OR MORE DEMANDING APPLICATIONS

ZLX24MA

PLUS:
> 7 Segments display
> 250 users
> 2 settable inputs

EASY PROGRAMMING

ZLX24 can be configured using a standard manual procedure, or using a smartphone thanks to CONNECT technology.

The direct plug can be used for connecting the CAME KEY or CAME Gateways, enabling a complete range of additional functions for the local or remote management of the automation.

DISCOVER CAME KEY >

Logo Connect

ADAPTIVE SPEED AND TORQUE TECHNOLOGY

ZLX24 constantly manages acceleration, decelerations and absorbed current for keeping torque and speed always at the set level with any weather condition.

VIRTUAL ENCODER

ZLX24 ensures performance and safety also for motors without Encoder, thanks to the possibility to electronically manage the torque and the obstacle detection.

SMART MOVEMENT CONTROL

It's not necessary to set leaves deceleration manually, thanks to a completely automatic procedure.

EASY FIXING

Equipped with a DIN bar hanger system.
It also matches the existing fixing holes
of other CAME panels, in case of replacement.

EASY CABLING

Tilting and removable board
for wiring in comfortable position.
All the space under the board is available
for storing accessories and cables.

MULTIPLE CONNECTION

ZLX24 can manage both TRADITIONAL and CXN BUS accessories or WIRELESS accessories thanks to RIO SYSTEM

  • up to 8 pairs of PHOTOCELLS
  • up to 2 FLASHING LIGHTS
  • up to 7 command SELECTORS

CXN BUS also allows to get a feedback from each accessory, thanks to the auto configuration function.

DISCOVER CXN BUS TECHNOLOGY >

Logo CXN

CXN
BUS CONNECTION MODES

MIXED connection

Mixed connection

STAR connection

Star connection

DAISY CHAIN connection

Daisy Chain connection
