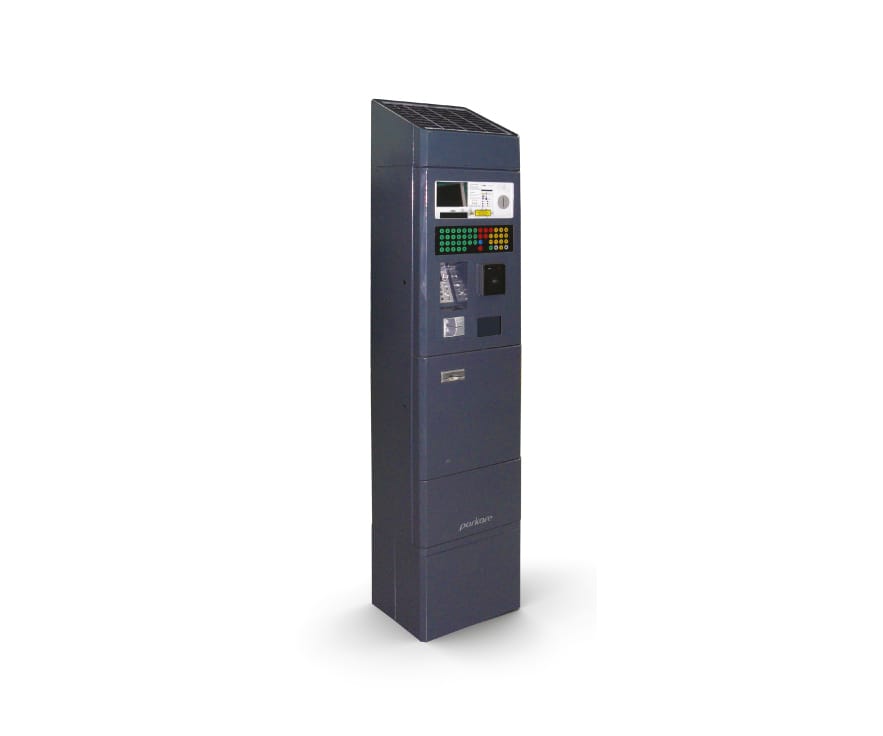

On-street parking system

MAIN FEATURES

Cutting-edge technological solutions: QR, bar codes, TFT screens, NFC, contactless, etc..
The solar panel ensures great operational autonomy, and can operate connect up to the power grid.
Different wireless communication systems (3G, 4G).
Pay with coins, banknotes, EMV (chips, PIN and contactless) or with mobile devices (via App or NFC by using a contactless EMV reader).
Several operating modes are available, like: Pay & Display, Pay by Plate and Pay by Space.
Varoious keyboards availables, Lectors, Payments methods, etc. to be chosen depending on the customers needs.

Large, backlit, color screen makes user interaction easier.
Modern ergonomic design for easier interaction in urban settings.
Guaranteed protection from water and dust.
Tamper-proof doors and special paint coat to ensure maximum resistance against vandalism.
Contactless cards for electric locks and separate, independent access to the coin box.
LEDs to alert as to the state of the machine. These are visible from afar to help operators in their work.

TEMPO ENTERPRISE MANAGEMENT SOFTWARE

Tempo Enterprise is the web application through which, in the client-server architecture context, you can manage all connected parking meters at multi-sites and multi-user facilities, besides controlling security and payments through mobile devices.

The system management software resides with a protected host, which is accessible via web, and which lets you interact with the system from any computer, in any part of the world.

TEMPO PAY & DISPLAY SYSTEM

This offers the ideal tool for controlling parking areas using Smartphones, with a permanent connection to the mobile Communications Network.

MECHANICAL

Height: 1785 mm.
Width: 370 mm.
Depth: 290 mm.
2.0mm thick stainless steel plate.
Finished with oven dried polyester powder paint.
Optional anti-graffiti coating layer.
Anti-leverage doors 8/12 anchor points (top-maintenance / lower-cashbox).
Polycarbonate display window - fire resistant and unbreakable.
Capacitive anti-vandal keyboard.
Fastenings between the body of the machine and pedestal accessible only internally.
Modular design for easy replacements of components and testing.

OPERATING ENVIRONMENT

Temperature: -10 ºC to + 55 ºC.
Maximum relative humidity: 90% non-condensing.

POWER

Battery: 12V, 24Ah and integrated solar panel of 10 W.

PRINTER

Printer with long life head.
Standard ticket of 57 mm. fixed-width and variable length between 95 and 124 mm.
Ticket is sheltered from wind and rain during and after emission.
Tickets supplied in rolls of 3,000 tickets. n Ticket issue time of 2.5 seconds.
Detection of end of roll and low level ticket stock.

CARD / TICKET READER

Anti-vandal protection.
EMV Reader (Europay, Mastercard, Visa) advanced as PCI -PTS 3.0 standard and software RedSýs 4.0 protocol.
Blacklists support, reloading, mixed payments and saving of all transactions.
Proximity reader (contactless) payment card and subscribers, which meets the standards ISO 14443 A / B, PayPassTM MasterCard, Visa and contactless and EMV cards PayWaveTM (optional).
Barcode reader (optional).

COIN ACCEPTOR

Programmable opening and closing shutter (vandal protection).
Pre-paid system: return of the same coin in case of cancellation of the operation.
Accepts up to 15 different currencies. Detection opto electronic and magnetic devices detecting physical characteristics (string detection and anti-lead).

COIN BOX

Capacity approx. 5.5 litres.
Collection by exchange method. The coin box is self-closing when removed.
Configurable collection tickets (voucher or total). Query functions.
Optional inclusion of a black box to control access to the collection.

INFORMATION

Hierarchical access levels to operational, management and financial data including configurations (e.g. tariffs).

DISPLAYS

Backlit Display Operation colour TFT 5.7 “QVGA (320 x 240).
Display time graphic 48 x 16 mm. Displays the time in 4 digits of 9 mm height.
Configurable to show 12 or 24 hour time format.

INDICATORS

LED indicators showing status of the machine which can be viewed from a distance by operator.

COMMUNICATIONS

Bidirectional: downloading of lists, configurations and software; reception history, alarm and maintenance requests.
Shipping operations and transactions in real time.
Double GPRS configuration which enables the operator SIM change without modifying the initial configuration.
Standard : GPRS (2.5G )
Optional: CDMA (3G) and Bluetooth.
Mobile data capture equipment (EMC) PSION.

FUNCTIONS

Capacity 8 MB of internal memory, 32 MB of Flash memory and SD card option for maintenance.
Capacity 10 different rates of any type (table, annulment, resident, etc. . .), All streamable.
Extensive configuration possibilities: schedules, holidays, fares, cards, hardware parameters, etc. . . .
Menus of operation for testing, initialization settings, queries, etc.
Alarm history and intervention.

SOFTWARE AVAILABLE

Tempo Enterprise. Basic package management and configuration for any Windows platform.
