ATS

THE FIRST
TELESCOPIC
MOTOR WITH
CMAX UP TO 200 mm

WATCH THE VIDEO >

X

CAME ATS VIDEO

GATE SIZE UP TO 5 METRES

ATS is available in 2 versions, for wings up to 3 metres and up to 5 metres.

C MAX UP TO 200 mm

ATS can be installed even on very deep posts.

ATS C MAX UP TO 200 mm

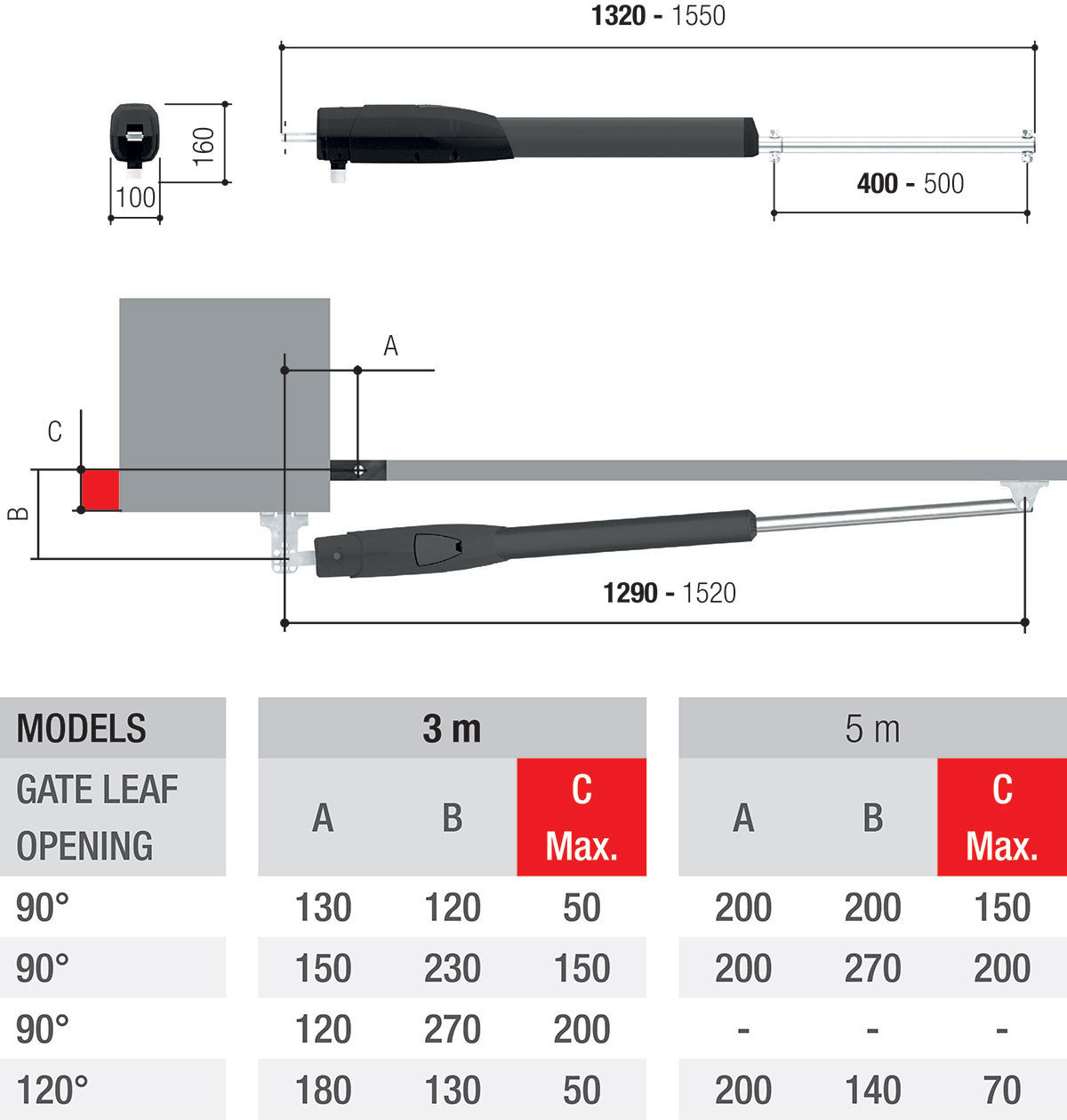

APPLICATION DIMENSIONS

ATS dimensions

DOWNLOAD FULL DATASHEET >

MOVE ATS 3D MODEL
AND TAKE A LOOK AT ATS 360°

RESISTANT AND RELIABLE

The telescopic steel arm is protected by an aluminium casing for strength and resistance to atmospheric agents.

SMOOTH AND SILENT

The bevel gear system ensures smooth and silent movement, as well as a slender shape with modern design.

LOOK AT THE TECHNICAL SPECIFICATION >

24 V MOTOR
WITH ENCODER

The Encoder ensures fluid movement and efficient slow down.

Tested for intesive use not only for residential settings, but also for professional or industrial installation.

The 24V version can also be equipped with the emergency battery system.

ATS side view

ATS is available also in 230V AC version.

EMERGENCY BATTERY SYSTEM

A special system with high performance lithium batteries allows ATS 24V to operate even in the event of a power failure.
This emergency device recharges during normal operation to ensure maximum uptime at all times.

ELECTRONIC LIMIT SWITCHES

ATS is equipped with an advanced electronic system to set the gate travel, simply acting on 2 screws at the end of the telescopic arm.

ATS limit switches
ATS key setup ATS key setup

CAME KEY

CAME KEY allows you to configure ATS quickly and fast, directly through your smartphone and SetUp App.

CAME KEY IS YOUR NEW WORKING TOOL

CAME KEY is an interface for the easy and fast configuration via smartphone with no need for an Internet connection.

  • Rapid operator configuration
  • Board firmware update
  • Transmitter management
  • Backup of configurations both locally and on the cloud and much more!

WATCH THE CAME KEY FULL EXPERIENCE VIDEO >

ATS features

ADDITIONAL FEATURES

  • RIO SYSTEM for the wireless connection of safety devices
  • ENERGY SAVING MODULE for low consumption during stand by
  • TRANSPONDER AND KEYPAD SELECTOR

ATS is compatible with different control boards.

ATS connect
ATS connect

ATS works with CONNECT technology for remote digital control via gateway or locally via CAME KEY.

DISCOVER MORE ABOUT CONNECT >
