TOP

CAME
REMOTE CONTROL

  • New Fixed Code and
    Rolling Code technology
  • Single Frequency and
    Double Frequency
  • To control up to 4
    different automations

Need to replace
your old transmitter?

Find the right model
for your needs >

Rolling code technology

Secure configuration with dynamic code

TOP can be configured directly on the control board of the automation or through smartphone thanks to CONNECT SetUp App.

On site, using CAME KEY

  1. Plug CAME KEY on the control board
  2. Load CONNECT SetUp App
  3. Scan the QR code on the blister and follow instructions

REMOTELY even from your office, using CAME gateways

  1. Connect to the automation through CONNECT SetUp
  2. Scan the QR code on the blister and follow instructions
  3. Send the transmitter to your customer

Rolling code

For professional safe configuration
through App Setup and CONNECT Technology

< DISCOVER MORE

New fixed code

For easy duplication and replacement
of other transmitters

DISCOVER MORE >

The new CAME fixed code technology

Safer, still easy

TOP FIXED CODE can replace or be added to all existing CAME transmitters.

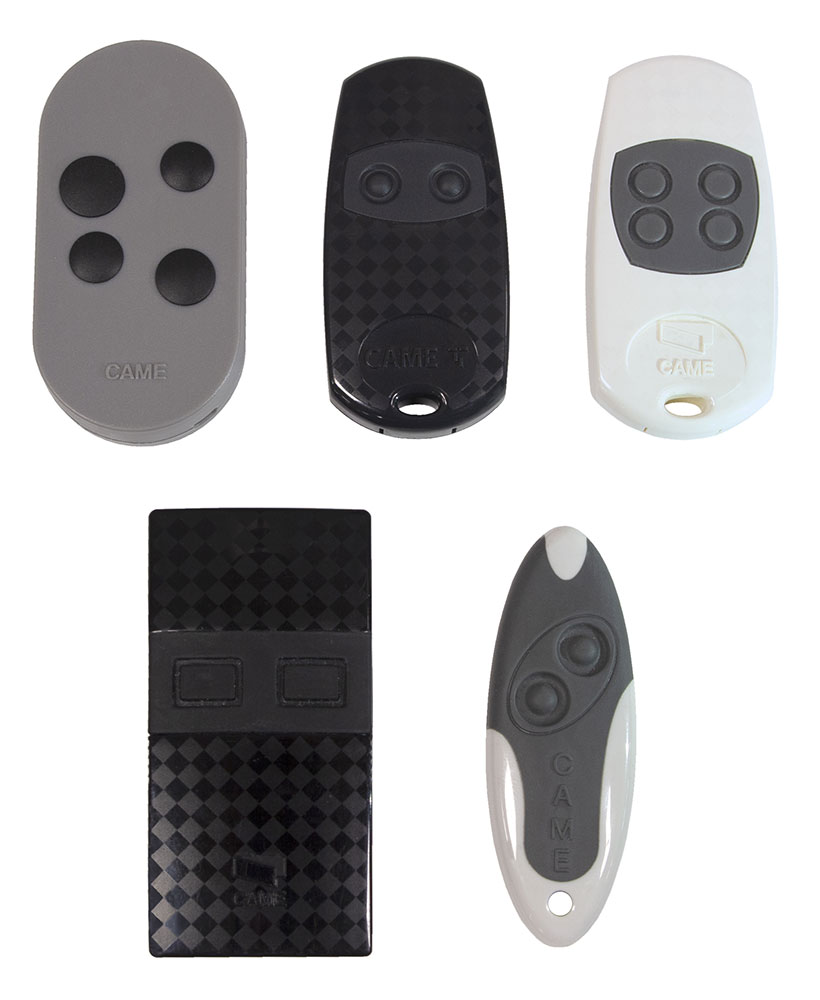

CAME transmitters
Onde radio Onde radio Onde radio Onde radio

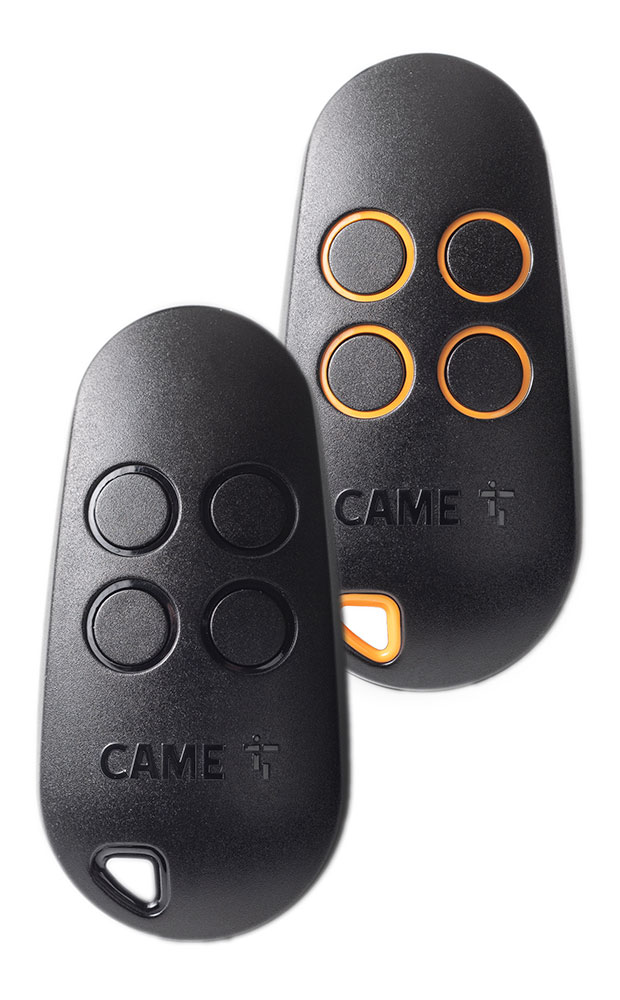

CAME TOP transmitters
Onde radio Onde radio Onde radio Onde radio

TOP Fixed Code can be duplicated only on TTS and TOP itself.

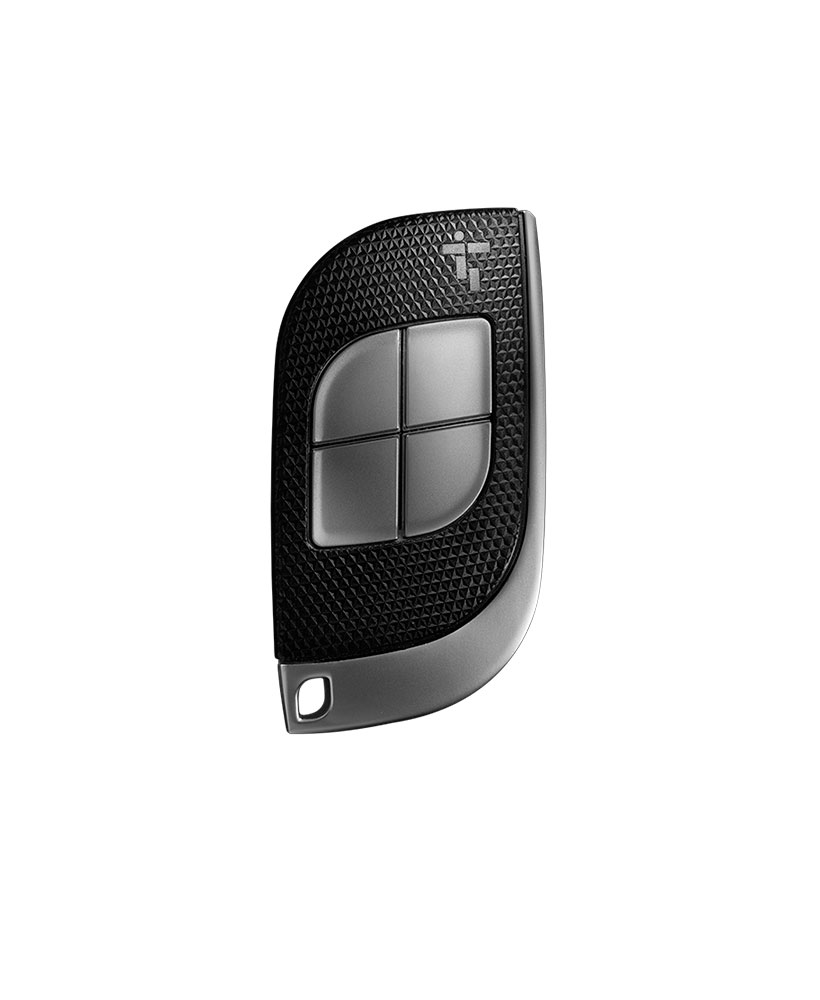

CAME TTS transmitter

Double frequency technology

In case 432 MHz frequency is busy, TOP double frequency version is available.
868 MHz is the default frequency, but it is possible to switch to 432 MHz at any time.

Moreover, when you need to control different automation with 2 different frequencies, TOP allow you to set both on the same transmitter.

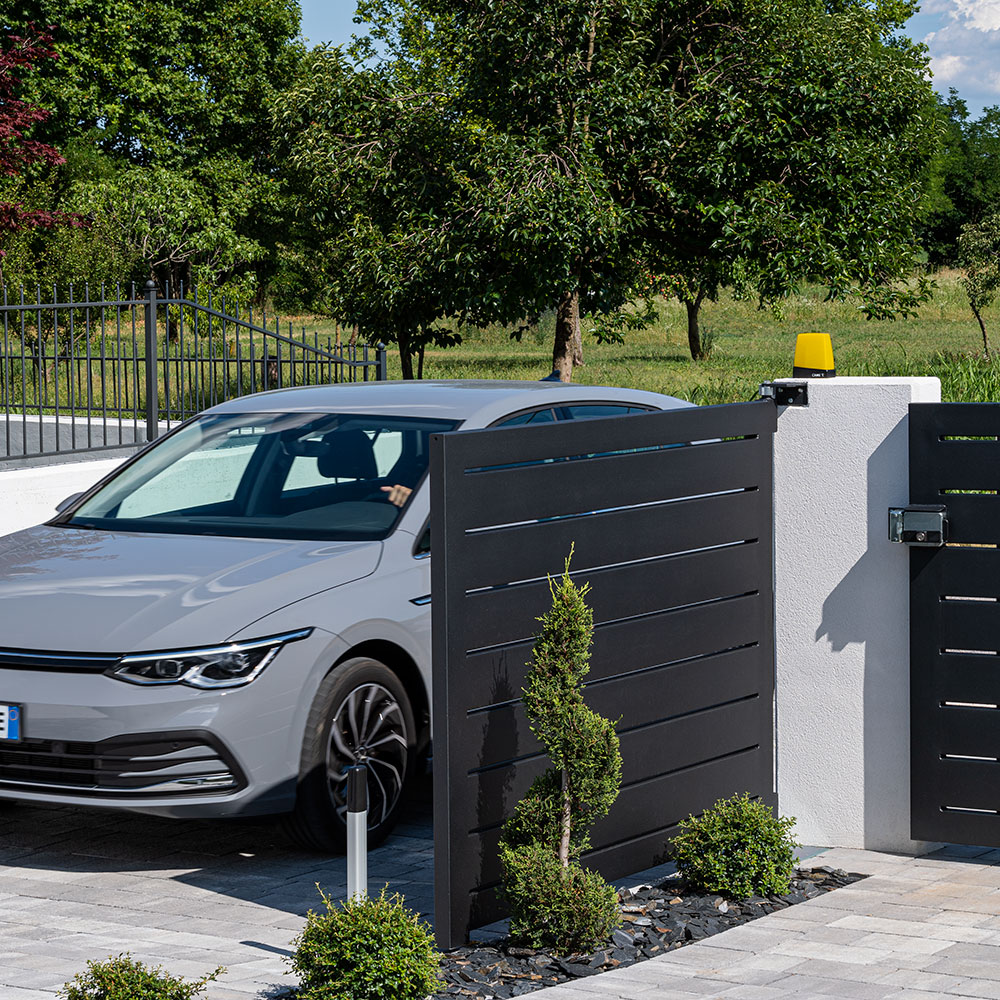

CAME double frequency gate

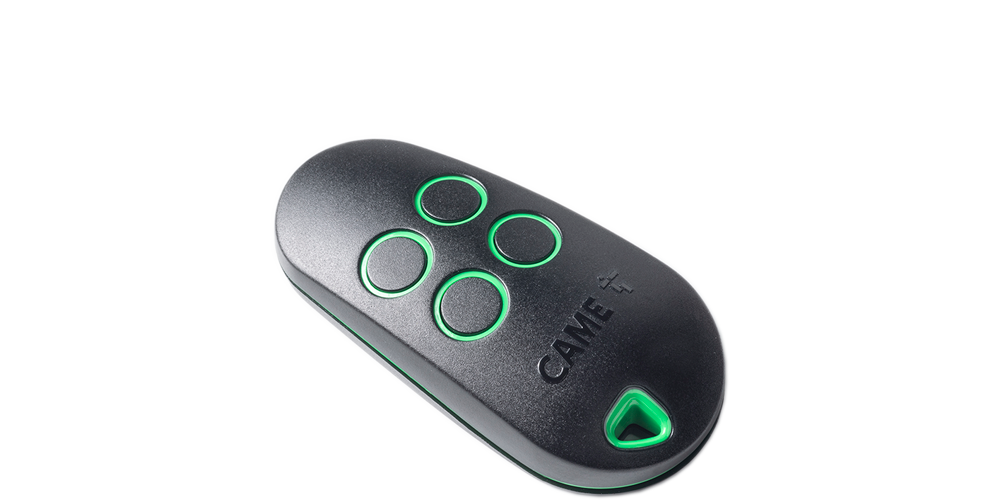

CAME double frequency transmitter CAME 433MHz frequency CAME 868MHz frequency

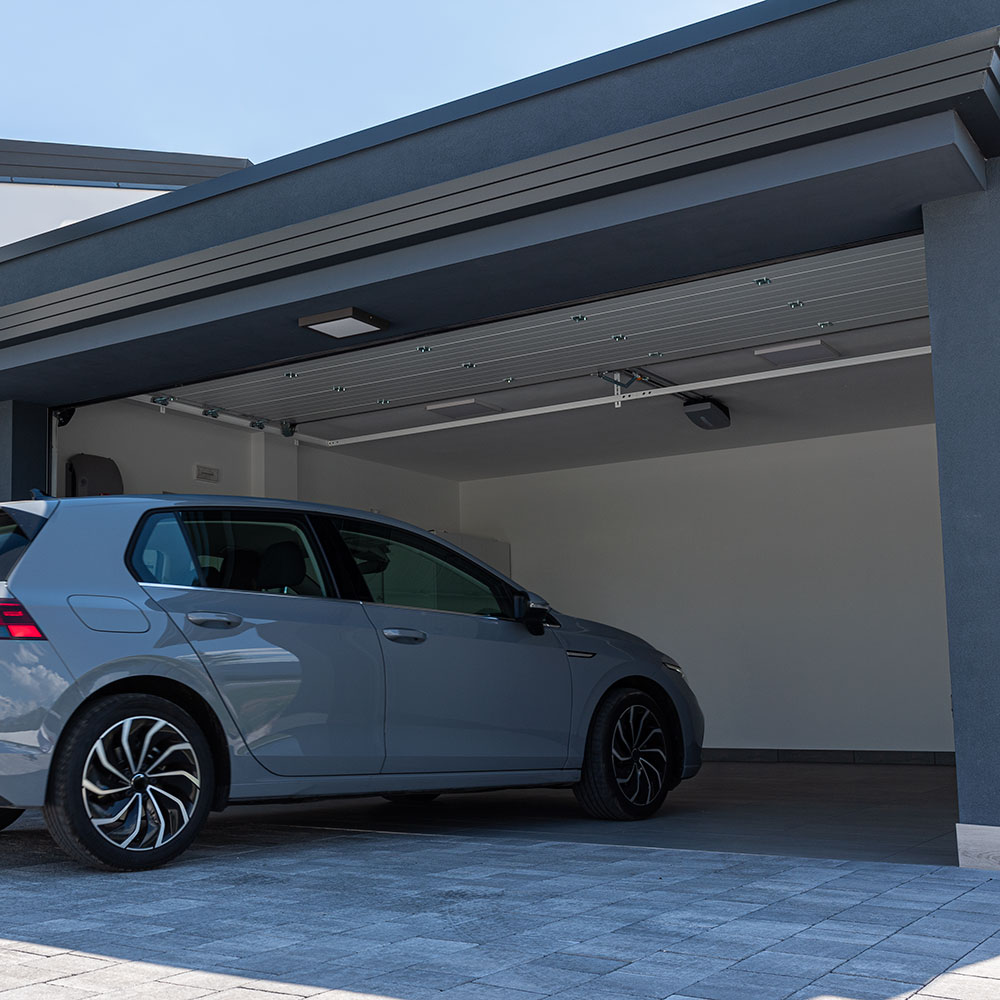

CAME double frequency box

Choose the best solution
for your needs

Need to replace your
old transmitter?

Find the right model
for your needs >

433 MHz frequency 868 MHz frequency
or double frequency
Easy duplication
of new transmitters
Secure configuration
of new transmitter

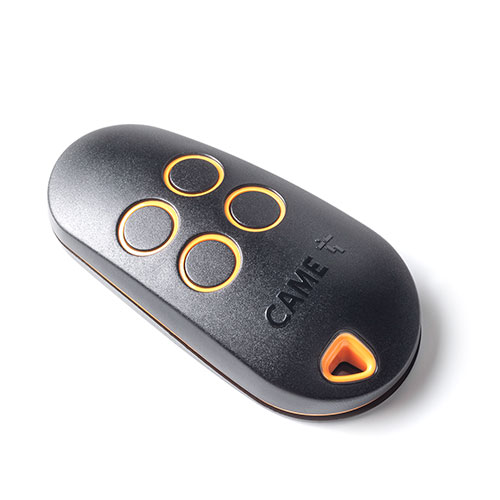

CAME TOP 806TS-0330 806TS-0330

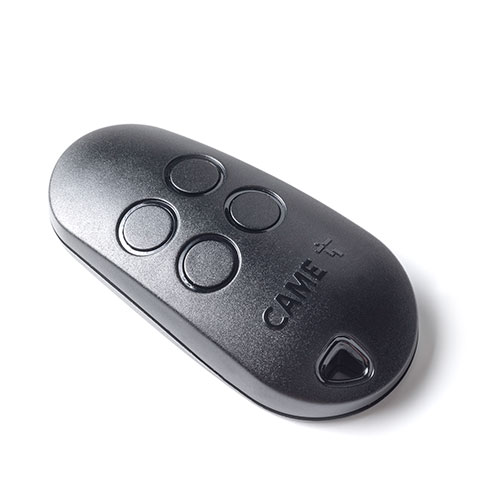

CAME TOP 806TS-0310 806TS-0310

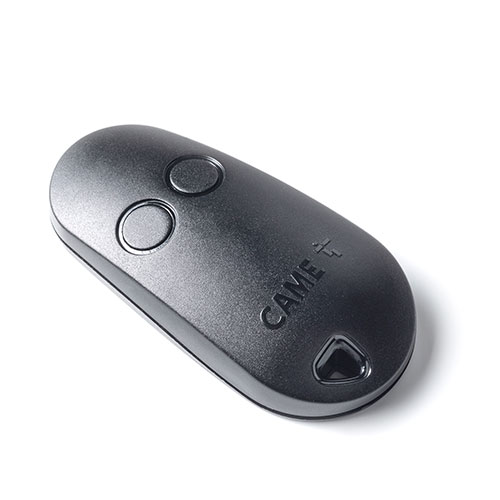

CAME TOP 806TS-0300 806TS-0300

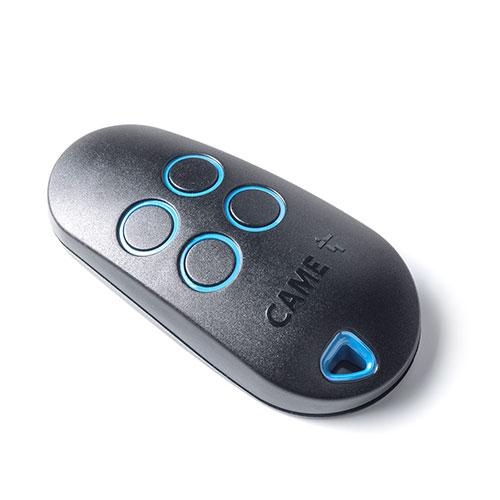

CAME TOP 806TS-0270 806TS-0270

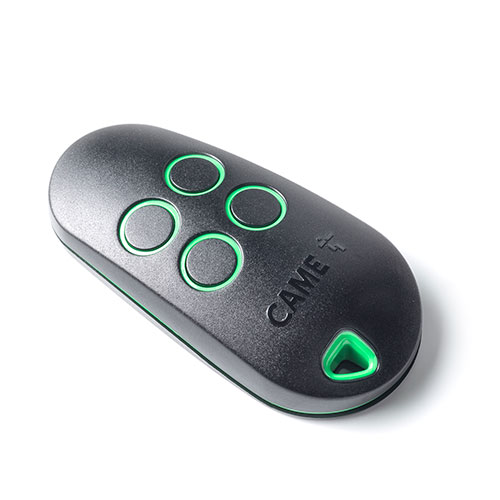

CAME TOP 806TS-0290 806TS-0290

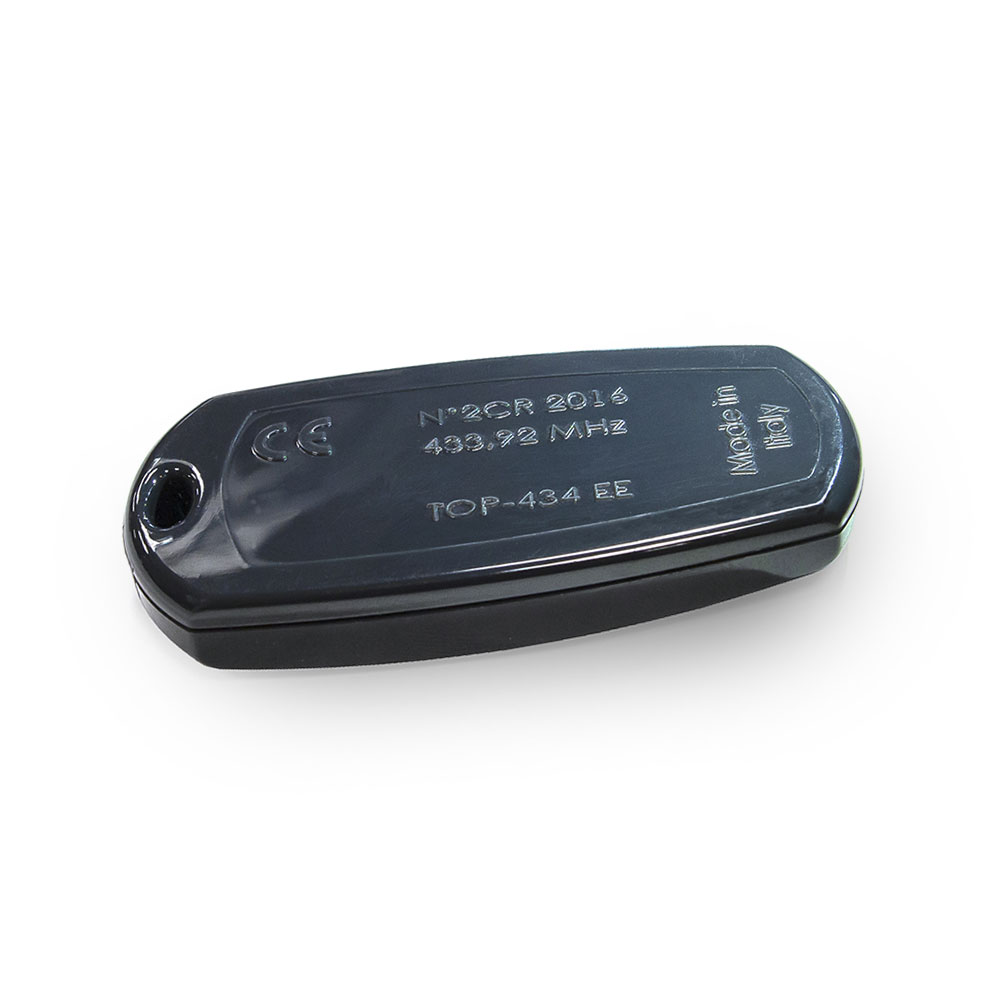

CAME transmitter code CAME transmitter code

Need to replace your old transmitter?

Read the model number on the back of your transmitter and select it from the list here below.




The TOP range

MODELS

806TS-0270

806TS-0290

806TS-0300

806TS-0310

806TS-0330

Technology Rolling Code Rolling Code Fixed Code Fixed Code Fixed Code
Frequency (Mhz) 433,92 433,92 - 868,35 433,92 433,92 433,92 - 868,35
Combinations 4.294.967.896 4.294.967.896 - - -
Buttons/Channel 4 4 2 4 4
Max range of radio (m) 50 ÷ 150 50 ÷ 150 50 ÷ 150 50 ÷ 150 50 ÷ 150
Battery type 1 CR2032 Lithium 1 CR2032 Lithium 1 CR2032 Lithium 1 CR2032 Lithium 1 CR2032 Lithium
Operating temperature (°C) -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55
Material Polycarbonate Polycarbonate Polycarbonate Polycarbonate Polycarbonate
