Main Features

  • State of the art technological solutions: QR, TFT screens, NFC, contactless, etc..
  • Mid-range system with thermal roll of paper and standard printer (QR, bar codes, etc.).
  • The system is designed for tool-less technical maintenance jobs.
  • Stand alone system, with centralised remote control.
  • The automatic pay-station has become a multi-service kiosk. It can be transformed into a 'remote' manual pay-station and offer various products and services for sale. These can be associated to other companies for any promotions or discounts.

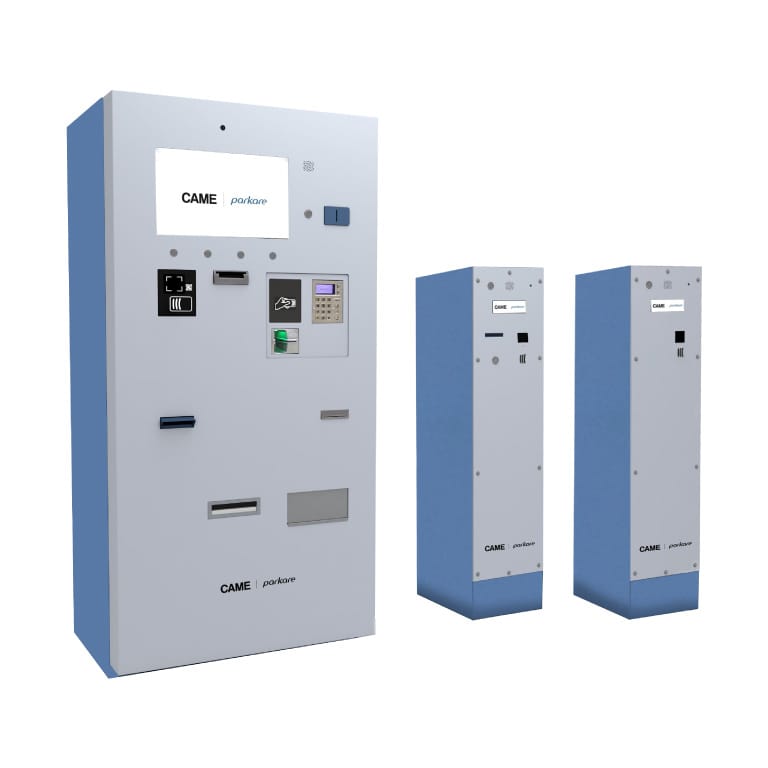

PKM System

Finally, a solution free of any particular base-device, but that lets you process paperless transactions: any credit cards, NFC contact-less technology, Card in / Card out, and so on.

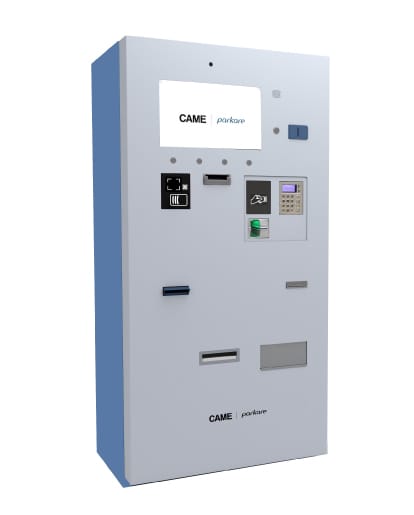

PKM Automatic pay station

The pay station is not just a payment terminal but a complete multifunctional 3-in-one station (information point, advertising and products sale) characterised by a compact design and the use of advanced technologies.

FEATURES

  • 15.6" LVDS Colour TFT display in panoramic format.
  • 4 language options (defined by the client).
  • IP intercom for communication with the control room.
  • 4 operation buttons.
  • Motion sensor to reduce energy consumption.
  • Embedded PC based on architecture x86 and support SSD for data storage.
  • Barcode reader 1D/2D with capacity to read codes on tickets, printed paper and mobile devices.
  • Thermal receipt printer.
  • Electronically regulated internal ventilation system.
  • Coins module with change giving. Accepts up to 16 denominations of different coins and automatic return of 3 different values.
  • 3 self-charging coin hoppers, with a capacity of 700 coins each.
  • 5.5 litres security coin box.
  • Cabinet constructed from 2 mm AP02 steel with antioxidant treatment and oven dried polyester powder paint.
  • Frontal door with a security lock with 3 locking points.
  • Micro sensors for automatic detection: door opening, coin box removal, hoppers removal and note box removal.
  • Interior lighting system.

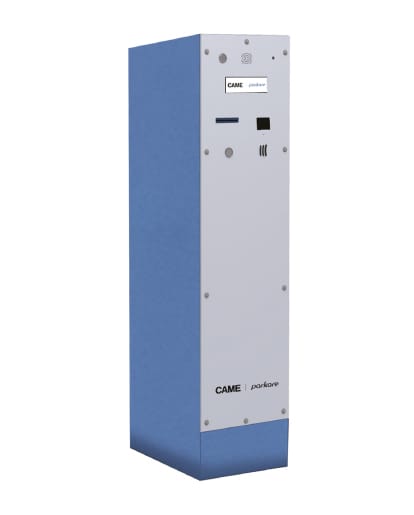

PKM Entry terminal

The PKM entry terminal stands out for its compact design, concentrated on the smallest possible space, full of the power of technology. The PKM entry terminal has a printer, so maintenance gets reduced.

FEATURES

  • User friendly, 240 x 64 pixels graphic display.
  • Buttons to request tickets.
  • 2 language operation (configurable by the client).
  • PC embedded based on architecture x86 and support SSD for data storage.
  • Cabinet constructed from 1,5 mm AISI 430 Stainless Steel with an oven dried polyester powder paint, suitable for outdoor use.
  • Side door with a 3mm anchor point.
  • Ethernet communications (TCP/IP).
  • Barrier controlled by GPIO.
  • Thermal printer to issue tickets in 1D/2D.
  • Interior heating and ventilation system.

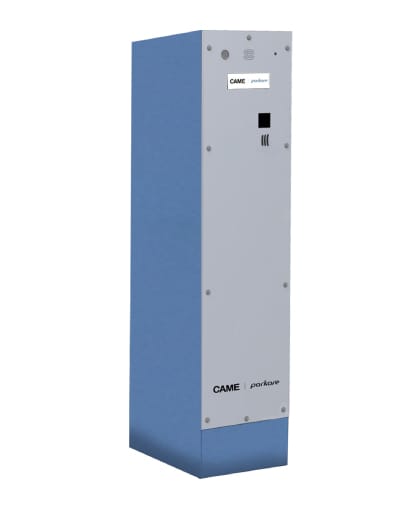

PKM Exit terminal

The PKM exit terminal stands out for its compact design, concentrated on the smallest possible space full of the power of technology.

FEATURES

  • User friendly, 240 x 64 pixels graphic display.
  • 2 language operation (configurable by the client).
  • PC embedded based on architecture x86 and support SSD for data storage.
  • Cabinet constructed from 1,5 mm AISI 430 Stainless Steel with an oven dried polyester powder paint, suitable for outdoor use.
  • Side door with a 3mm anchor point.
  • Ethernet net communications (TCP/IP).
  • Barrier controlled by GPIO
  • 1D/2D reader with capacity to read codes on tickets, printed paper and mobile devices.

PKE Barrier

Innovation and design for all-inclusive safety: these are the most recent additions to the PRK-CA barrier line family.

FEATURES

  • An electronic contact automatically interrupts the power supply voltage as soon as the inspection door is opened.
  • Differentiated sensitivity spring for exceptional balancing of the bar.
  • Command electronics. Protected by a die-cast aluminium guard, it is positioned to make any type of intervention extremely practical.
  • The safety photocells are affixed directly to the barrier body without affecting the aesthetics of the product.
  • A specific security firmware connected to our Lince software is available.
  • Polyester powder painted and galvanized steel housing. Available in dark grey or blue (RAL 5023).

OUR RANGE OF Sliding Gates

BX

Ideal for fitting onto sliding gates.

Related products:

XVia

The motor-powered solution, even transponder-fitted, for for highly trafficked pedestrian passages.

Related products:

Unipark

Ideal for parking guards in residential and public settings.

Related products:

G6 EVO: AUTOMATIC

e bollard is managed by an access control system and is actuated down by the user clearing the way for access.
