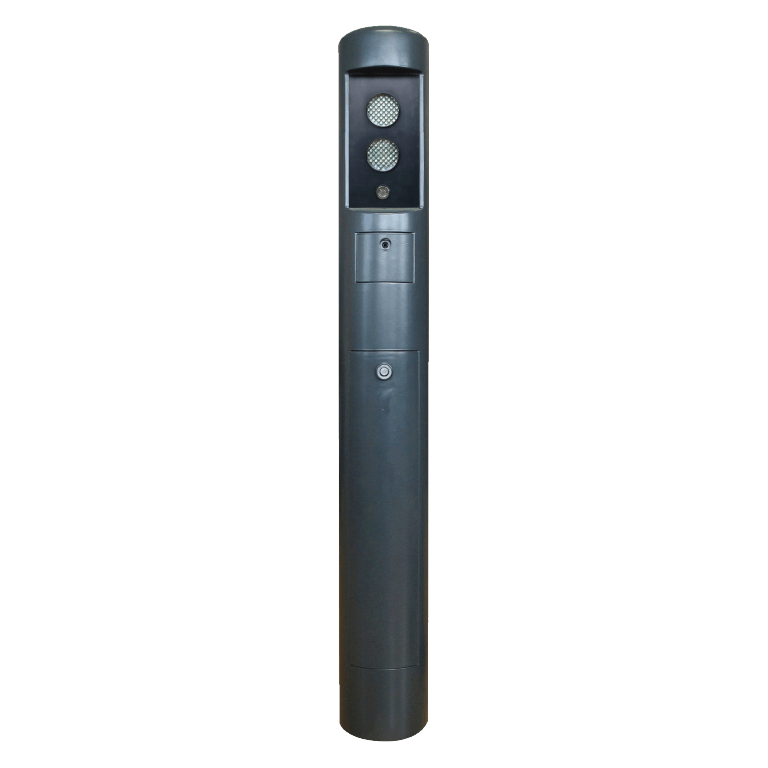

The City1 controller without automation is capable to integrate position lights, control actuators and / or operation logic. The City1 controller is meant to be fixed to the ground on its embedding base. Technical compartment is accessible from the front. A trap door opens onto a push button to force descent of bollard. Finally, a polycarbonate (or aluminum) printed front face with a position light red/amber and/or control actuators.
CITY 1
Material: Steel S355 - 6 mm (high impact resistance)
Dimensions: Ø194mm x H1425mm
Treatment: Protection anti-corrosion par electro-zingage
Finition: Matt finish thermosetting polyester powder top coat (RAL7016 standard)
Isolation: Acoustic and thermal Isolation, thickness 5 mm
Fan at the top part to maintain the airflow
Opening: One lockable access hatch for the emergency stop button
Protection rating: IP54
Front face in screen printed
Front face customizable offers the opportunity to integrate more elements : card reader, keypad, traffic lights, call button…
