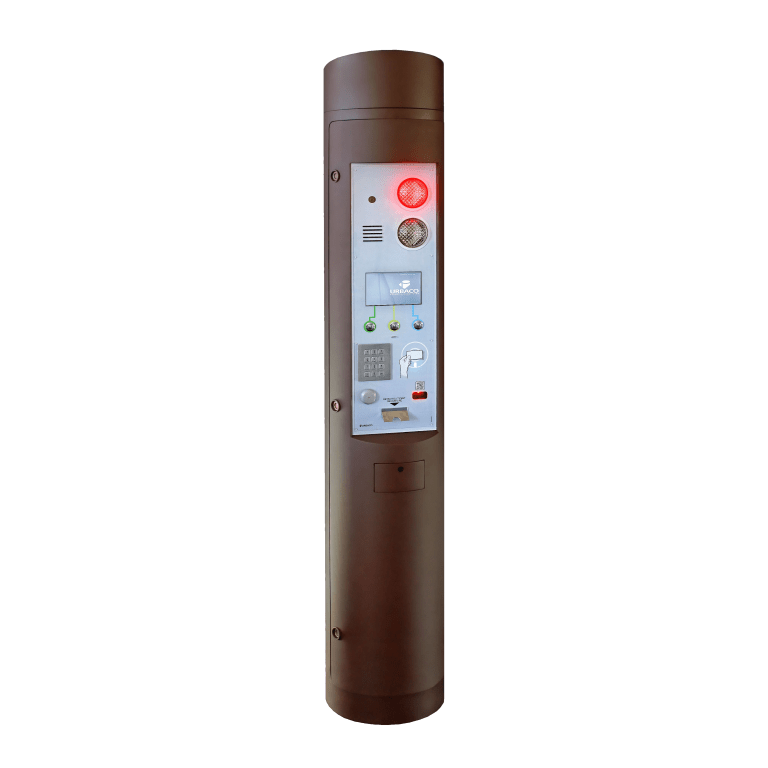

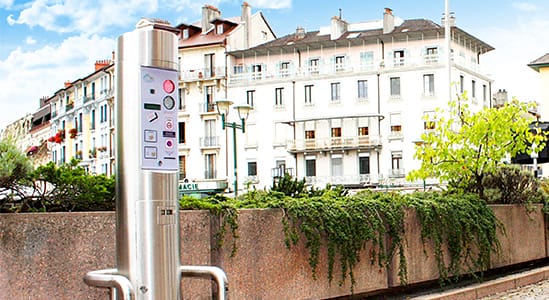

The City 6 EVO totem integrates all operating elements (such as the PLC mounting plate, control devices and signalisation components). It is fitted on the street, on an inset base, allowing a 360° rotation. Its large internal capacity allows the PLC plate and power unit installation inside (external hydraulic pump, pneumatic compressor, etc.). It also enables the network material integration such as fiber optic converters. Equipped with a customisable front face, that comes with mounted traffic lights. Control devices can be easily added on for user interface (RFID card reader, keypad, etc.).
Features
Material: Steel S355 - 6 mm (high impact resistance)
Treatment: Protection anti-corrosion for electro-zingage
Finition: Matt finish thermosetting polyester powder top coat (RAL7016 standard)
Isolation: Acoustic and thermal Isolation, thickness 5 mm -
Fan at the top part to maintain the airflow
Opening: Lock-hinged door
Protection rating: IP54
Front face in screen printed
Dimension: 650 x 210mm
Material: Polycarbonate
Thickness: 8 mm aluminum back face
Resistance: IK10
