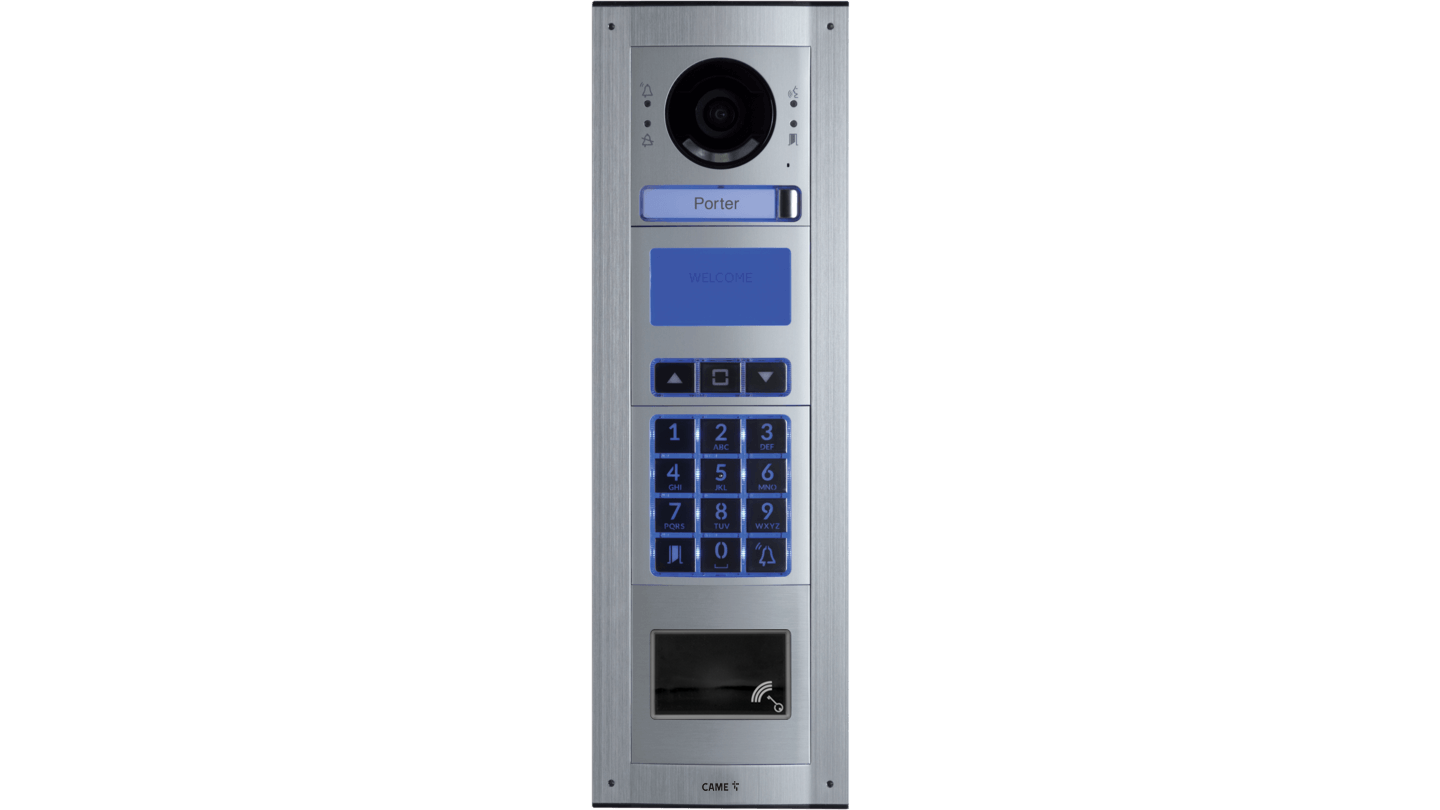

MTM is an extremely extensive modular range: it is furnished with modules that function on 5 different systems and that allow numerous functions to be performed. The basic design makes the external unit attractive on all surfaces and, at the same time, functional in daily use. The aluminium satin finishes ensure brightness and long duration, while the attention to the details enabled small refinements such as the elimination of the speaker holes and the dual colour backlighting of the keys.
Designed to provide unlimited functionality in even the most restricted spaces. From the ultra compact single module to the versatile four module units, MTM has the solution.
 |
 |
 |
 |
|
|---|---|---|---|---|
| Size | 1 Module | 2 Modules | 3 Modules | 4 Modules |
| Width* | 130mm | 130mm | 130mm | 130mm |
| Height | 136mm | 226mm | 316mm | 406mm |
| Depth* | 13mm | 13mm | 13mm | 13mm |
*Recess-mounted without Rain-hood
| MODELS | MTMV/01 | MTMV/08 | MTMV/IP | MTMA/01 | MTMAL/01 | MTMA/08 | MTMA/IP | MTMA/GSM | MTMA/200 | MTM8C | MTM8C/200 | MTMBFVS | MTMKB | MTMDY | MTMRFID | MTMMI | MTMMC | MTMNA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions (mm) | 85 x 85 x 35 | 85 x 85 x 35 | 85 x 85 x 35 | 85 x 85 x 35 | 85 x 85 x 35 | 85 x 85 x 35 | 85 x 85 x 35 | 85 x 85 x 35 | 85 x 85 x 35 | 85 x 85 x 35 | 85 x 85 x 35 | 85 x 85 x 35 | 85 x 85 x 35 | 85 x 85 x 35 | 85 x 85 x 35 | 85 x 85 x 35 | 85 x 85 x 35 | 85 x 85 x 35 |
| Internal dimensions (mm) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 85 X 85 X 32 | - |
| Packaging dimensions (mm) | 156 x 57 x 110 | 156 x 57 x 110 | 156 x 57 x 110 | 156 x 57 x 110 | 156 x 57 x 110 | 156 x 57 x 110 | 156 x 57 x 110 | 156 x 57 x 110 | 156 x 57 x 110 | 156 x 57 x 110 | 156 x 57 x 110 | 156 x 57 x 110 | 156 x 57 x 110 | 156 x 57 x 110 | 156 x 57 x 110 | 156 x 57 x 110 | 156 x 57 x 110 | 156 x 57 x 110 |
| Power supply (V) | 16 ÷ 18 DC | 14 ÷ 18 DC | 12 ÷ 24 DC | 16 ÷ 18 DC | 14 ÷ 18 DC | 14 ÷ 18 DC | 12 ÷ 24 DC | 14 ÷ 24 AC/DC | 12 DC | 10.7 - 18 DC | 14 - 18 AC | 10.7-18 DC | 10.7-18 DC | 10.7-18 DC | 12 ÷ 24 DC | 10.7-18 DC | - | 12 - 24 AC/DC |
| PoE power supply | - | - | IEEE 802,3af (W) | - | - | - | IEEE 802,3af (W) | - | - | - | - | - | - | - | - | - | - | - |
| Consumption in stand-by mode (mA) | 70 | 30 | 70 | 70 | 65 | 30 | 70 | 50 | 4 | - | 15 | 20 | 20 | 55 | 35 | - | - | 35 |
| Max. absorption (mA) | 220 | 120 | 250 | 220 | 200 | 70 | 250 | 120 | 60 | 25 | 15 | 55 | 55 | 250 | 90 | 25 | - | 90 |
| Operating temperature (°C) | -25 ÷ +55 | -25 ÷ +55 | -25 ÷ +55 | -25 ÷ +55 | -25 ÷ +55 | -25 ÷ +55 | -25 ÷ +55 | -25 ÷ +55 | -25 ÷ +55 | -25 ÷ +55 | -25 ÷ +55 | -25 ÷ +55 | -25 ÷ +55 | -25 ÷ +55 | -25 ÷ +55 | -25 ÷ +55 | - | -25 ÷ +55 |
| Protection rating (IP) | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | - | 54 | 54 |
| Video standard | PAL/NTSC | PAL/NTSC | H.264 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Resolution (pixels) | - | - | - | - | - | - | - | 1280 x 720 | - | - | - | - | - | - | - | - | - | - |
| 900 MHz GSM EGSM signal strength | - | - | - | - | - | - | - | 33 dBm | - | - | - | - | - | - | - | - | - | - |
| 1800 MHz GSM DCS signal strength | - | - | - | - | - | - | - | 30 dBm | - | - | - | - | - | - | - | - | - | - |
| Color | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Natural anodised satin-finish aluminium | - |
