Entry and Exit terminals

PKX entry and exit terminals, which are part of our ‘open platform’, feature a 7-inch screen for high visibility in a panoramic format, as well as an issuance autonomy of more than 5,000 tickets at the entry terminals.

They have been designed with simplicity and ease in their structure and configuration, so that they can operate without interruption, requiring minimal maintenance.

Their compatibility with the most advanced version of our PMS LINCE 7 allows the configuration of any operating mode, from the most traditional, with ticket issuance, to scenarios with dynamic entry and exit - ticketless and free-flow.

Automatic Payment Station

Designed to improve car park profitability, the PKX Automatic Payment Station that is part of our ‘open platform’, has been designed with low maintenance and high availability components that turns it into a complete multifunction station suitable for reliable operation in self-attended mode.

It is capable of handling any type of payment while acting as an information point, assistance, advertising, product and customised services sales, thanks to features such as the 23.8-inch portrait format screen.

It maintains its compatibility with the most advanced version of our PMS LINCE 7, thus allowing the configuration for all payment types, from the most traditional based on a physical ticket, to the ticketless scenarios based on license plate payment from the APS (virtual ticket).

Customise your Car Park

The standard PKX terminals are supplied in dark grey and black (5368A0837 y RAL 9005) with metraquilat front. Optionally, a wide variety of colours is available, fully customisable for each client, according to the RAL colour chart or other bespoke colours. and admits all types of graphic designs to provide them with sophistication and/or adaptation to the desired corporate image.

The TGIC-free, oven-dried powder coating with polyester resins is specially formulated for the lacquering of aluminium and steel surfaces, where maximum outdoor resistance is required. The elements protected with this type of lacquer have excellent weather and sun light resistance, complying with the international QUALICOAT specifications.

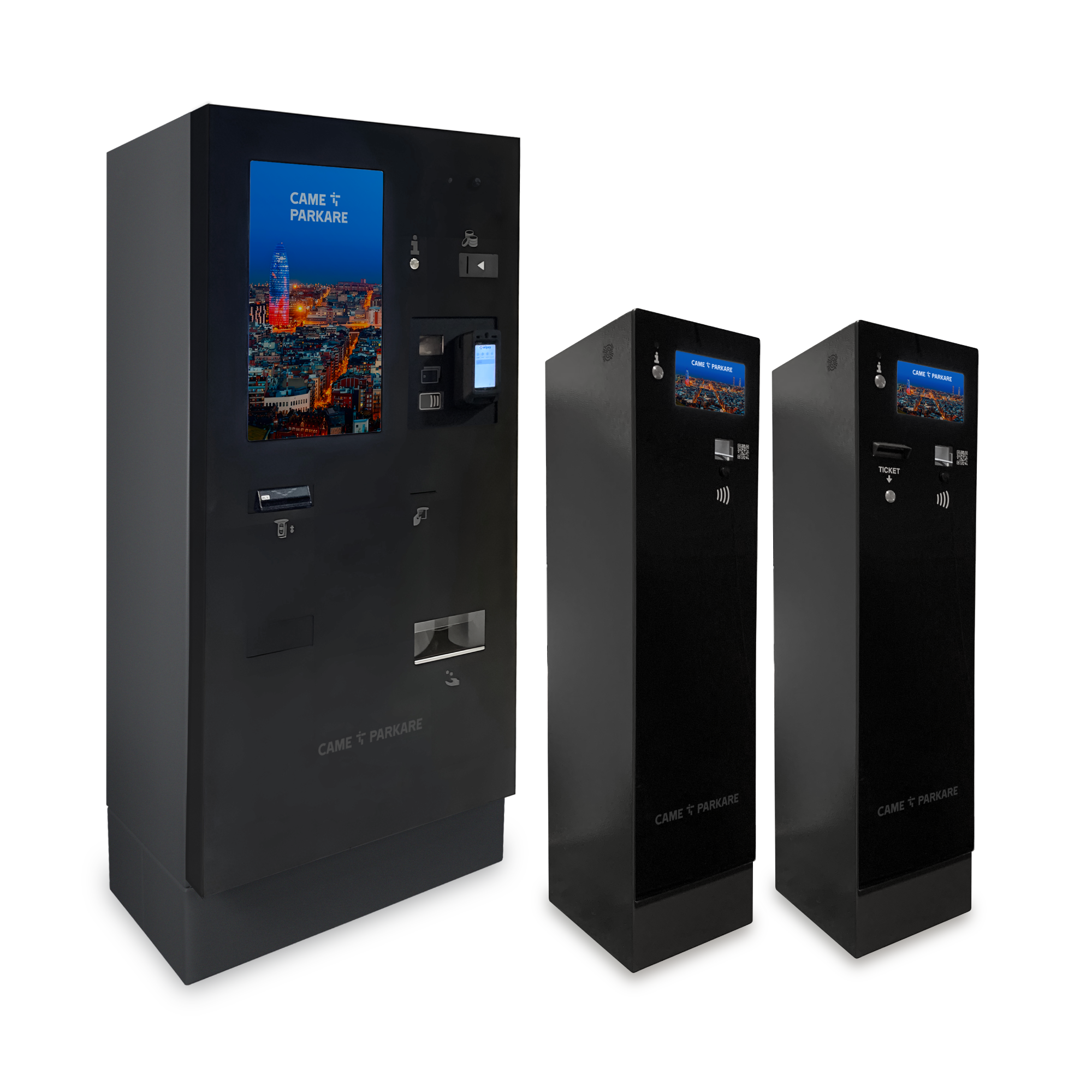

PKX System

The broad range of peripherals that meet a full spectrum of requirements, plus the latest improvements, have boosted the operational reliability and increased end-user satisfaction.

PKX Automatic Payment Station

Low maintenance and high availability components that turns it into a complete multifunction station suitable for reliable operation in self-attended mode.

FEATURES

User interface

  • 23.8” touch screen in portrait format.
  • Operation in 4 languages (defined by the customer).
  • IP intercom based on SIP protocol for communication with the central office.
  • Sleep mode for low power consumption.
  • Low-latency facial camera integrable with the intercom.
  • High-brightness outdoor screen (optional).

Components

  • Embedded PC based on x86 architecture with SSD storage.
  • Internal ventilation system.
  • Heating system.
  • RFID proximity card reader for subscriber control and integrated QR reader with the capacity to read codes on ticket support, printed paper and mobile devices (smartphones, tablets...).
  • Thermal receipt printer and/or ticket issuer.
  • Uninterruptible power supply system (UPS), which allows the cashier to complete ongoing operations in the event of a power failure.

Payment Modules

  • EMV reader for credit card with chip and proximity payments (NFC). Keyboard module the introduction of PIN code, optional.
  • Ask availability for approval in different countries.
  • Banknote reader, with capacity to read 64 different banknotes on 4 sides and escrow function.
  • It has a 300 banknote stacker (optional).
  • Banknote acceptor with recycler system (optional).
  • It has multiescrow and recycling capacity for 2 denominations, with up to 30 banknotes in each recycler hopper. Single slot.
  • Coins module with change giving, accepting up to 16 denominations of different coins and automatic return of 4 different values.
  • 3 self-charging coin hoppers, with capacity of 750 coins/each.
  • 1 manual reload hopper (optional) configurable for 750 coins or 1.500 coins capacity.

External finish and security

  • 2 mm AP02 steel sheet cabinet, with anti-corrosion coating and powder-coated with polyester resins, free of TGIC.
  • Front door with security lock and multiple locking points.
  • Micro sensors for detection: door opening, lock, coin box removal, hoppers removal and note box removal.
  • Height x Width x Depth (mm): 1485* x 740 x 500.

*different available heights (1485 – 1685 mm)

PKX Entry Terminal

Designed with simplicity and ease, operating without interruption, requiring minimal maintenance.

FEATURES

User interface

  • 7” widescreen display.
  • Multi-language operation.
  • Sleep mode for low power consumption.

Components

  • Embedded PC based on x86 architecture with SSD storage.
  • 2” thermal printer with a long-lasting printhead, integrated cutter, and ticket presence detector.
  • Capable of issuing barcode or QR code tickets and printing parking access details (date, time, terminal number...).
  • Ticket roll ( 58 x 190 x 25,4 ) made of thermal paper with a weight of 105g/m².
  • End-of-roll detection.
  • Internal ventilation system.
  • Heating system.
  • RFID proximity card reader for subscriber control and integrated QR reader.
  • IP intercom based on SIP protocol for communication with the central office.
  • Pinhole camera for facial image capture.

Communications

  • Ethernet communications protocol (TCP/IP).
  • Barrier controlled via GPIO and/or IP intercom.

External finish and security

  • 1.5 mm AISI 430 stainless steel housing, polyester powder-coated and oven-dried, suitable for outdoor use.
  • Single side door.
  • Height x Width x Depth (mm): 1095 x 270 x 325.

Other Features

  • Self-adjusting vehicle presence detection: Single (passenger cars), Double (passenger cars and motorcycles)
  • Ticket issuance: manual activation (button) or automatic (vehicle presence).

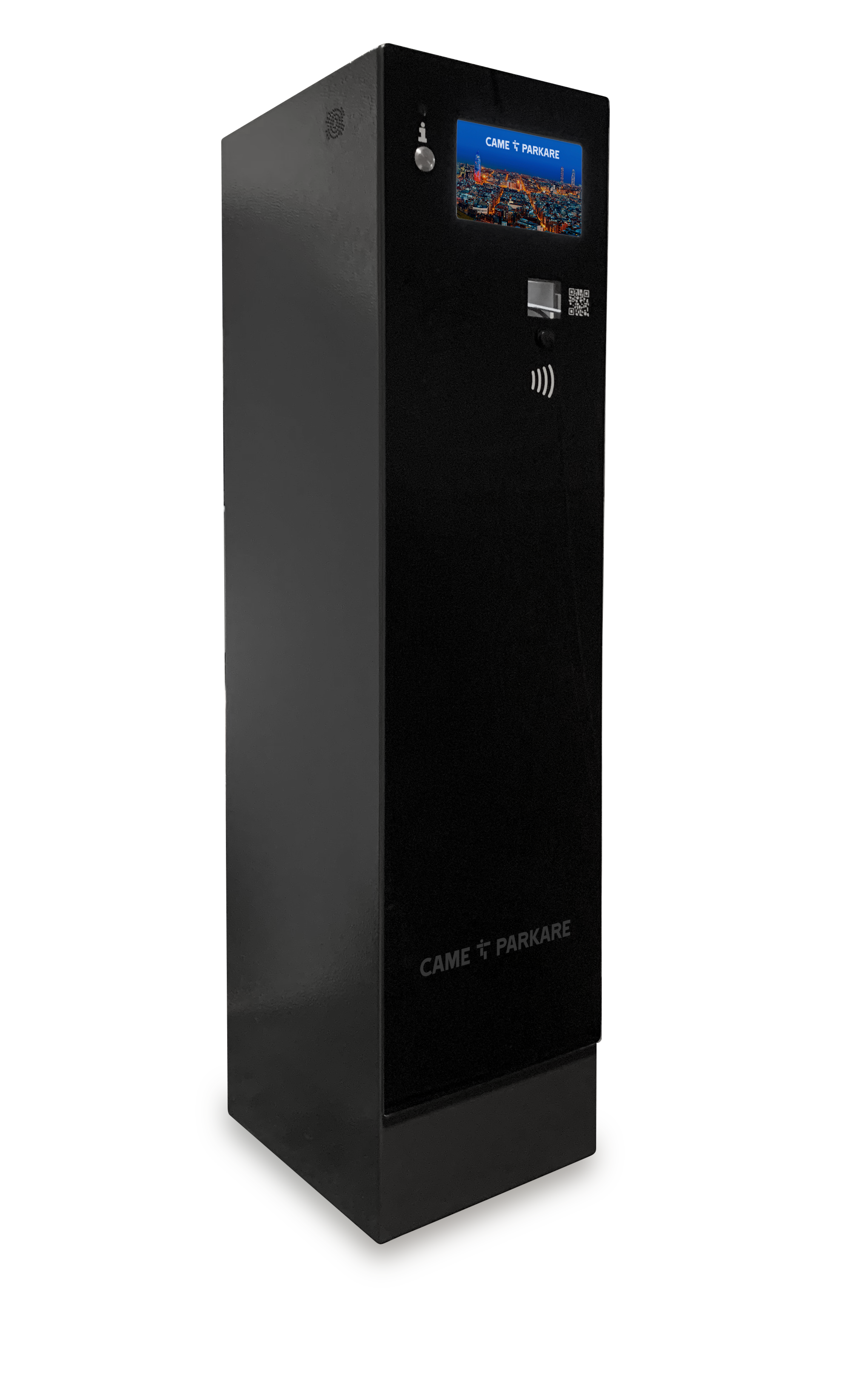

PKX Exit Terminal

Designed with simplicity and ease, operating without interruption, requiring minimal maintenance.

FEATURES

User interface

  • 7” widescreen display.
  • Multi-language operation.
  • Sleep mode for low power consumption.

Components

  • Embedded PC based on x86 architecture with SSD storage.
  • Internal ventilation system.
  • Heating system.
  • RFID proximity card reader for subscriber control and integrated QR reader.
  • IP intercom based on SIP protocol for communication with the central office.
  • Pinhole camera for facial image capture.

Communications

  • Ethernet communications protocol (TCP/IP).
  • Barrier controlled via GPIO and/or IP intercom.

External finish and security

  • 1.5 mm AISI 430 stainless steel housing, polyester powder-coated and oven-dried, suitable for outdoor use.
  • Single side door.
  • Height x Width x Depth (mm): 1095 x 270 x 325.

Other Features

  • Self-adjusting vehicle presence detection: Single (passenger cars), Double (passenger cars and motorcycles)

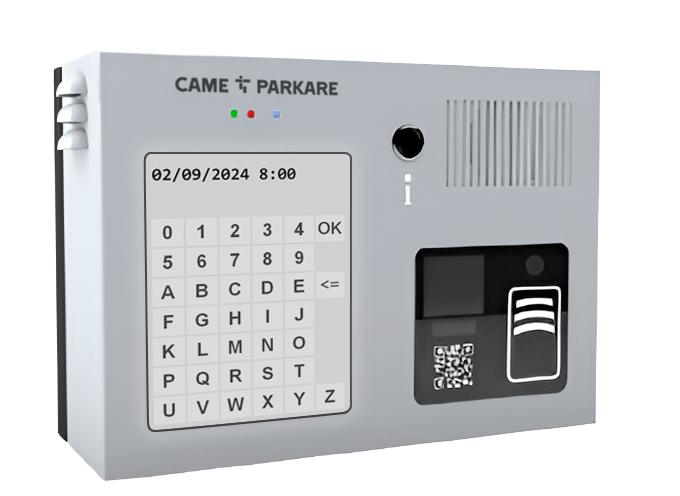

PKX Pedestrian Access Reader

CAME Parkare's door access system allows pedestrian access for users and season ticket holders with any identification (RFID, TAG, magnetic stripe, barcode, QR) or by inserting the number plate.

FEATURES

User interface

  • 6.5’ touch screen, including an alphanumeric keyboard.
  • SIP based protocol IP Intercom for communications with Central IP Intercom.
  • Low latency face camera, integrable with intercom.
  • Green LED for power.
  • Red (unidentified) and green (identified) operating LEDs.
  • User presence detector.

Components

  • 1D/2D (QR) barcode reader, capable of reading printed tickets and mobile devices (smartphones, tablets...).
  • Proximity card reader.
  • Embedded PC based on x86 architecture and SSD support for data storage.
  • Electric security lock (power supply not included).
  • Technical box (inside).
  • Associated door status signal or input: opened or closed.
  • Internal ventilation system.
  • Cabinet AISI 430 stainless steel housing, powdercoated polyester, oven-dried, suitable for outdoor use.

Communications

  • Ethernet communications protocol (TCP/IP).
  • Barrier controlled by GPIO.

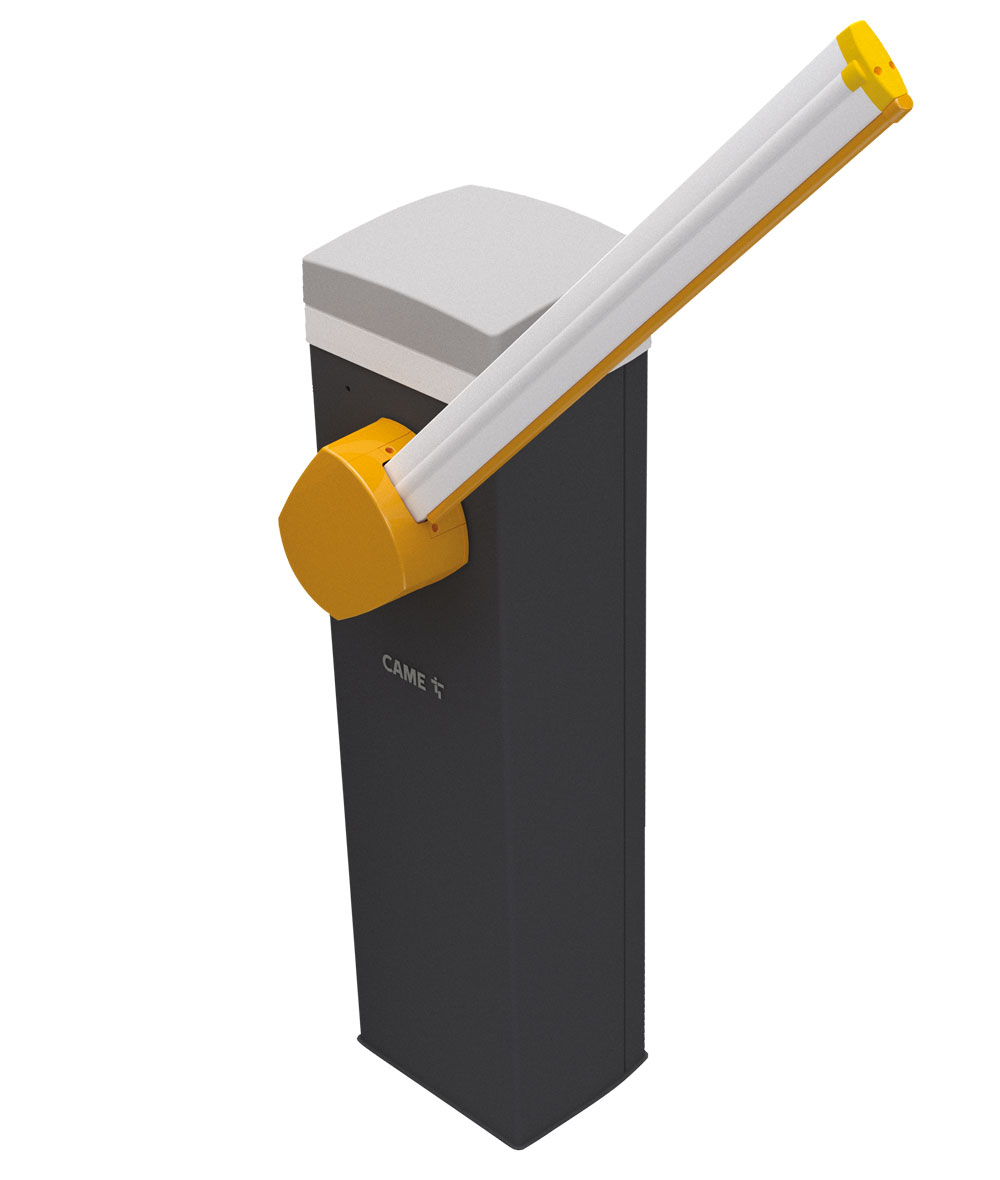

GARD PX Barrier

Developed to meet the most demanding needs in high duty cycle facilities

The GARD PX Barrier has been developed to meet the most demanding needs in high duty cycle facilities. It is equipped with a brushless motor, which makes it possible to offer:

  • Minimal maintenance due to the absence of brushes in the motor.
  • Ability to maintain or increase torque at different speeds.
  • Brushless motors have a smaller size, better heat dissipation, lower noise and higher operating speeds.

Thanks to brushless technology, opening manoeuvring speeds of 1.2 to 2.4 seconds are achieved, depending on the boom length, operating its motion with advanced and linear control. Other advanced features include easy access to control electronics, as well as a wide range of accessories, operations counter for preventive maintenance and a practical system of boom unlocking by safety key, in case the parking operator so requires.

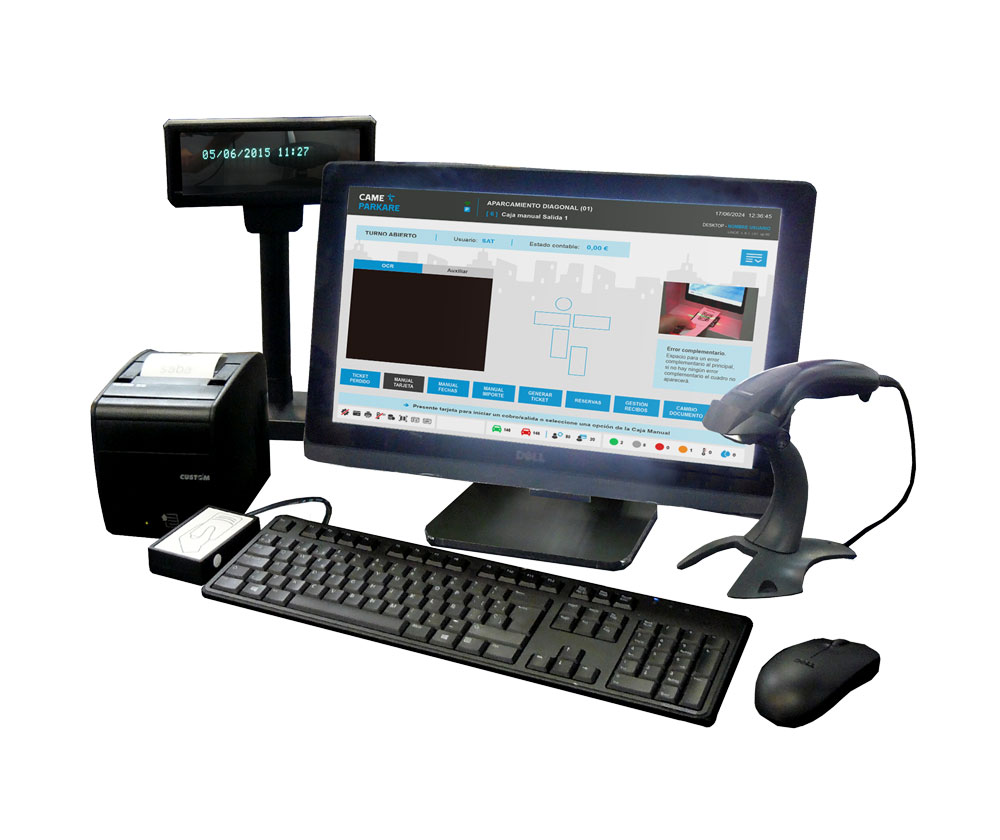

Manual Cashier

A complete support point on site, close to the user and with capacity to receive payment, manage season holders or cards of the system, operate with the data of the system and solve any eventuality.

FEATURES

The Manual Cashier is a complete point of face-to-face assistance, close to the user and with the capacity to collect stays, manage subscribers or system cards, operate with parking data and solve any eventuality. All in one.

It offers maximum functionality and power in the minimum space.

The Manual Cashier features Lince software with a new user interface and touch screen for easy system management. From the cashier, not only is it possible to collect parking charges but it gives access to many other features.

  • Proprietary software for parking control and management LINCE 7.0.
  • Access restricted by identification and differential key according to user profiles.
  • Automatic rates calculation.
  • Collection and validation of tickets. Recoding and printing of the entry ticket, once paid, for use at the exit validator.
  • Product generation. Coding, recording of system cards, service, subscribers or vouchers.
  • Multiple payment means. Admission of any payment method (cash, discounts, vouchers, credit).
  • Troubleshooting. Admission of payment of illegible or lost tickets, time exceeded, etc.
  • Access control. Barrier opening / closing from the keyboard (Manual Cashier exit mode).
