MAIN FEATURES

  • Satin "stainless steel effect" structure set up for the integration of CAME barriers Ø 40 mm.
  • Set up for housing one or 2 activation radars.
  • Control board with buttons and display.
  • Set up for additional boards for CAME control devices with internal management up to 150 users.
  • Integration with third-party access control with passage activation and position feedback (open/closed) via clean contacts.
  • Luminous crown to warn when the gate leaf is moving and signal operation status.
  • Paired operation (Master - Slave) in the case of double leaves, for passages exceeding 1200 mm.
  • Buzzer for signalling forcing attempts.
  • During power outages the passage can be freed up in either direction.

Modular and safe installation for quick passages

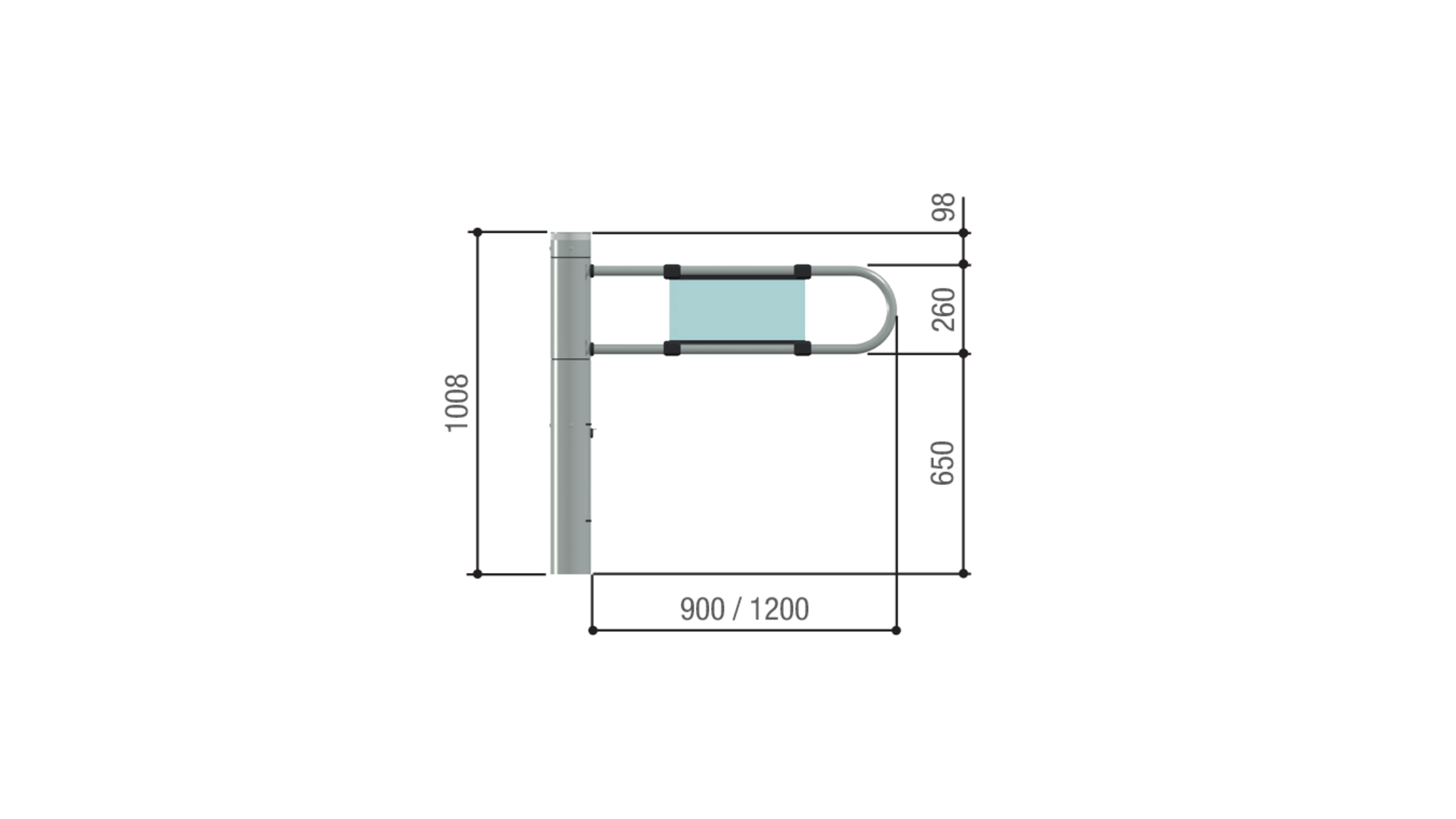

  • Min. leaf length (mm)900 (PSSL90)
  • Max. leaf length (mm)1200 (PSSL120)

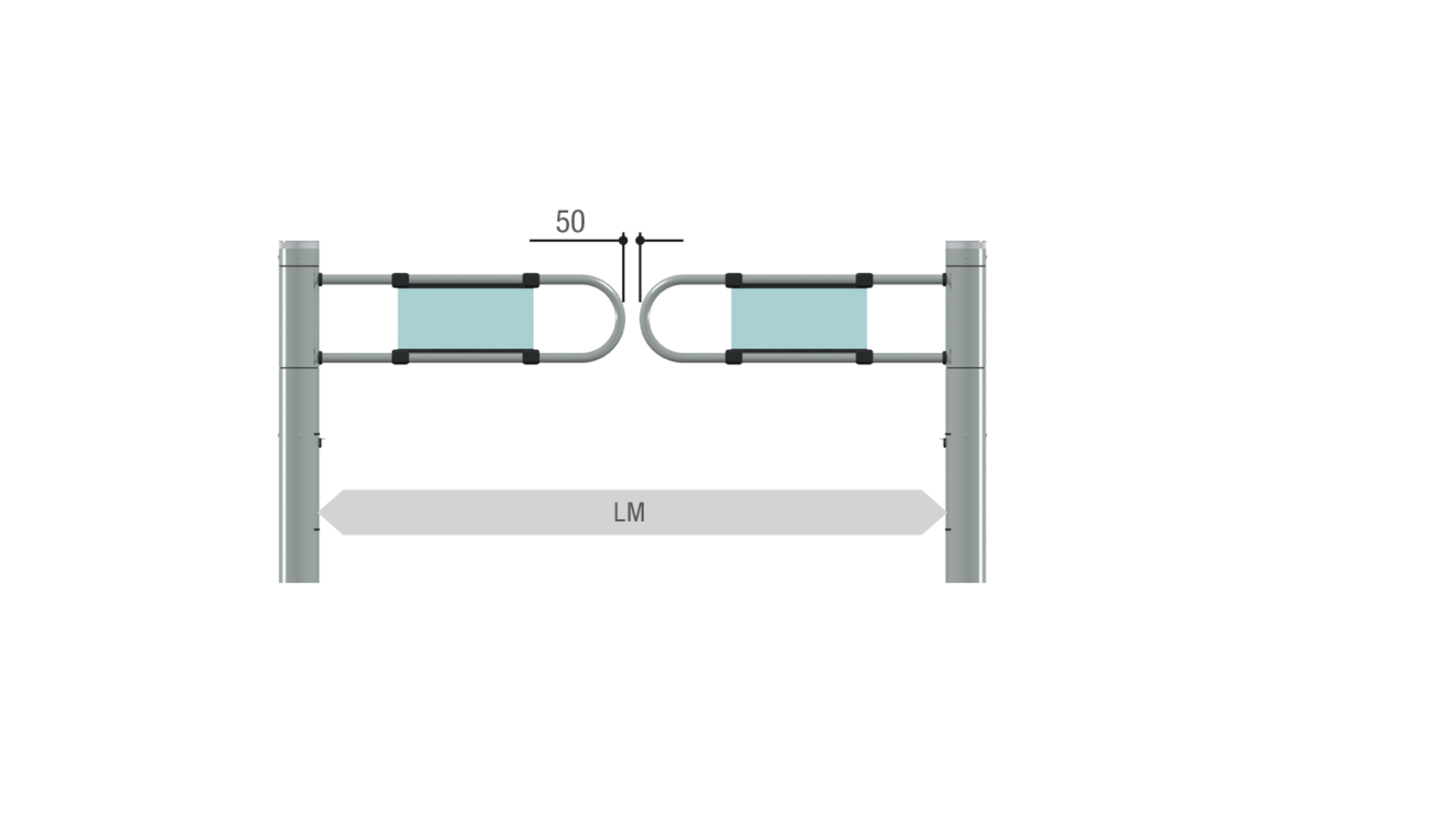

  • Min. clearance width (mm)1850
  • Max. clearance width (mm)2450
  • Max. leaf opening (°)90
MODELS PSSLN40
Protection rating (IP) 40
Power supply (V - 50/60 Hz) 120 - 230 AC
Power (W) 120
Max number of passages/min.* 12
Opening speed at 90° (s) 1
Operating temperature (°C) -20 ÷ +55

OUR RANGE

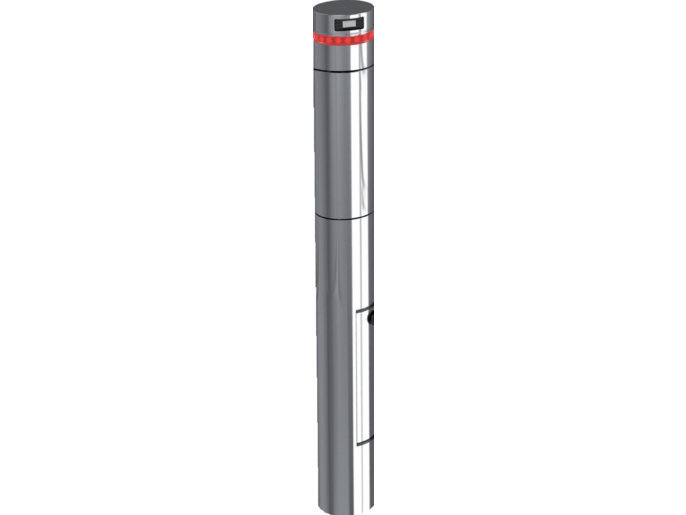

24 V DC motor-powered swing-leaf turnstile

001PSSLN40

Bidirectional motor-powered swing-leaf turnstile made of aluminum, complete with control board and LED indicators.

Download FASCICOLO PSSLN40 MULTI4 A5 (IT, EN, FR, RU)
Download SALOON conformity declaration (CE)
Download SALOON 40 conformity declaration (CE ROHS)

Accessories

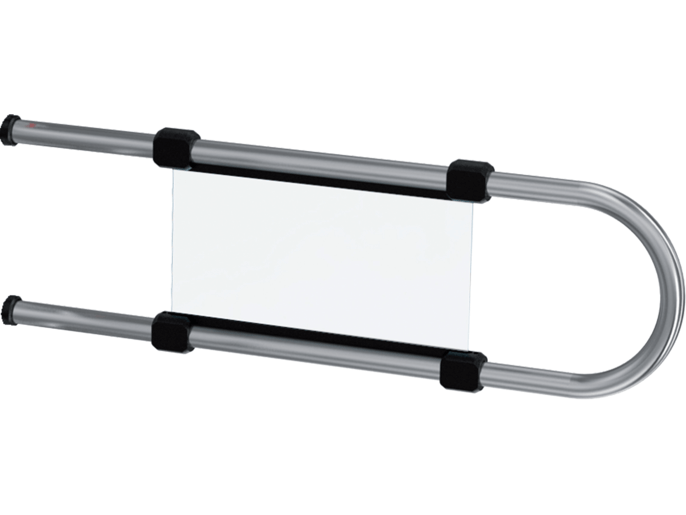

001PSSL90

Aluminium gate leaf L = 900 mm.

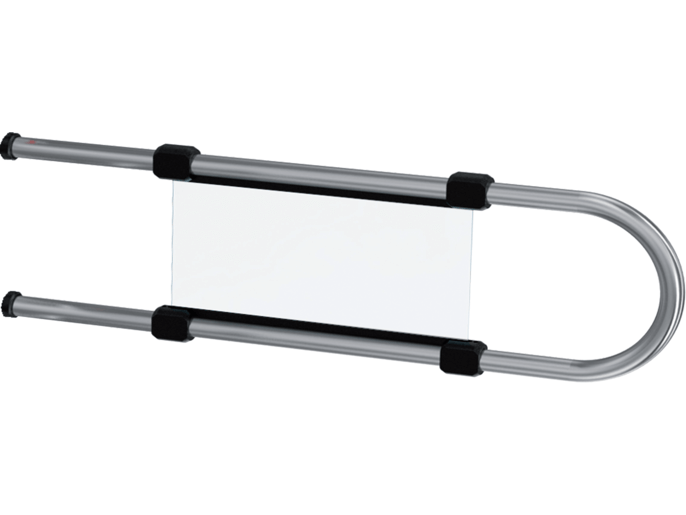

    001PSSL120

    Aluminium gate leaf L = 1200 mm.

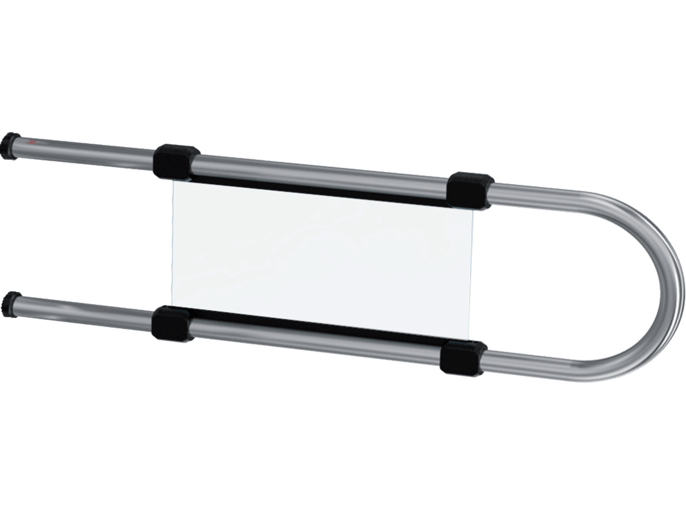

      001PSSLC

      Customized aluminum leaf.(L = from 600 to 1,200 mm, notify us of the dimensions you want, when ordering).

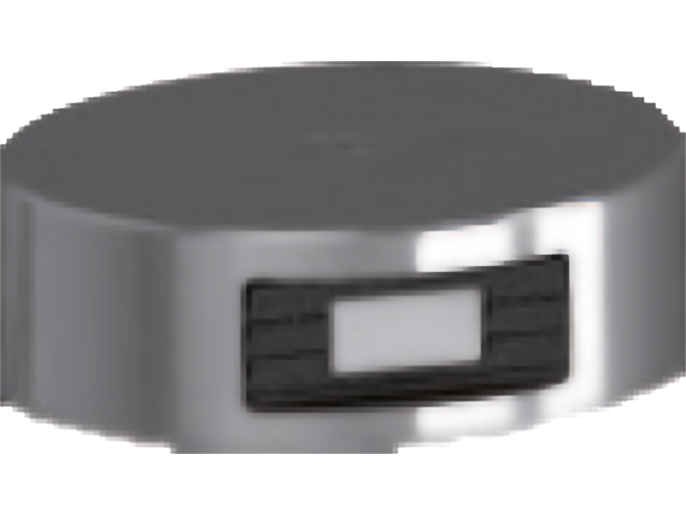

        001PSSA01

        Automatic-opening activation microwave radar.

        Download FASCICOLO PSSA01 MULTI (IT, EN, FR, DE, ES, NL, PT, PL, RU)

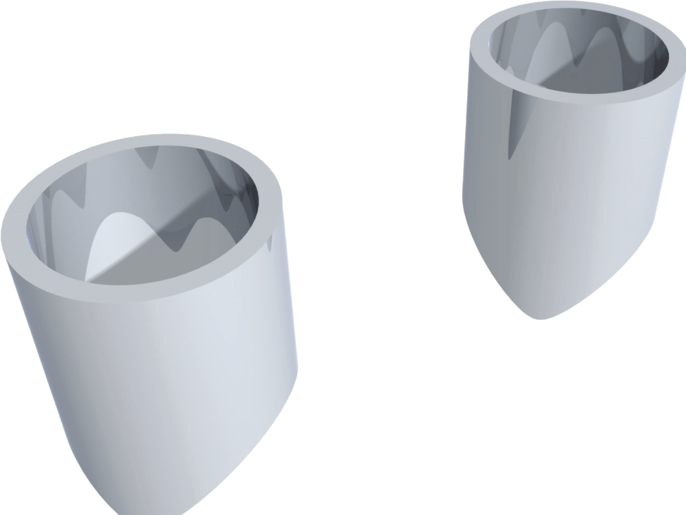

          001PSSA03

          Kit containing two chrome-finish plastic couplers for fitting the crowd barriers.

          Download FASCICOLO PSSA03 / PSSA04

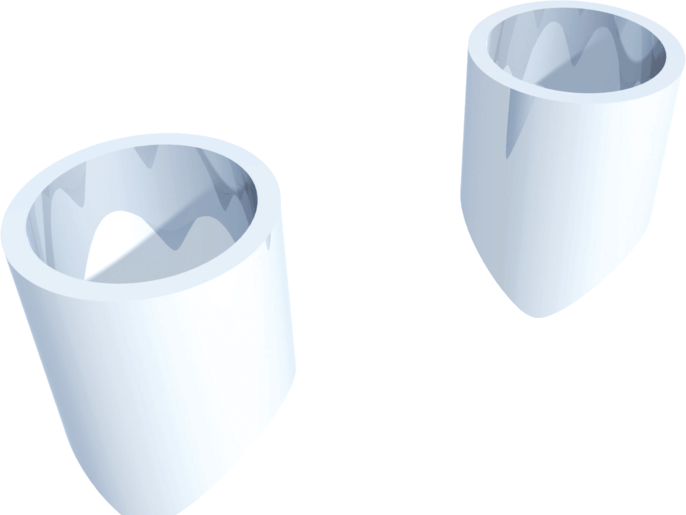

            001PSSA04

            Kit containing two AISI 304 steel couplers for fitting the crowd barriers.

            Download FASCICOLO PSSA03 / PSSA04
