MAIN FEATURES

All of the regular or dimmerable light points, the shutter or awning motors, the gates and automated doors can thus be controlled from a single point or from several points around the home.
You can now manage the system via one-touch solution scenarios.
Moreover, since all of the installed devices are connected via one bus cable, you can expand and upgrade the system, at any time, to fit changing needs or lifestyles, whether the home is finished, furnished, inhabited or, restructured.

OUR RANGE

CONTROL MODULES WITH TOUCH-SENSITIVE KEYS

OH/6ITC BK

It features six digital inputs controlled by touch-sensitive keys on the glass plate. Each input can be programmed with all the functions available to the system. The keys have an LED to show the on/off state of their corresponding controlled output. Direct bus connection. Auxiliary power-supply 12 ÷ 24. Installation on standard 3-module rectangular box. Black.

Download Fascicolo OH/2-4-3-6 ITC MULTI9 A3 (IT, EN, FR, DE, ES, NL, PT, PL, RU)
Download OH/XITC conformity declaration (CE)

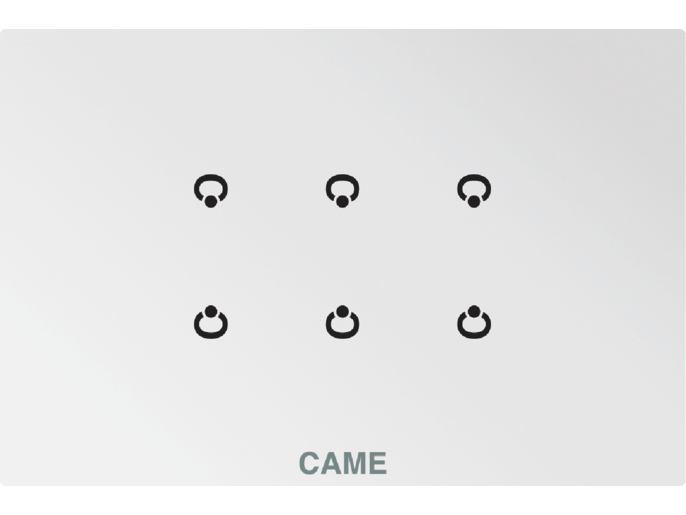

OH/6ITC WH

It features six digital inputs controlled by touch-sensitive keys on the glass plate. Each input can be programmed with all the functions available to the system. The keys have an LED to show the on/off state of their corresponding controlled output. Direct bus connection. Auxiliary power-supply 12 ÷ 24. Installation on standard 3-module rectangular box. White.

Download Fascicolo OH/2-4-3-6 ITC MULTI9 A3 (IT, EN, FR, DE, ES, NL, PT, PL, RU)
Download OH/XITC conformity declaration (CE)

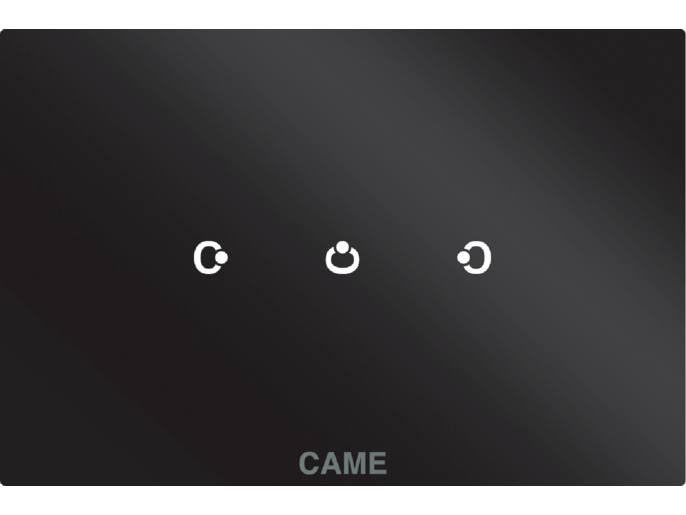

OH/3ITC BK

It features three digital inputs controlled by touch-sensitive keys on the glass plate. Each input can be programmed with all the functions available to the system. The keys have an LED to show the on/off state of their corresponding controlled output. Direct bus connection. Auxiliary power-supply 12 ÷ 24. Installation on standard 3-module rectangular box. Black.

Download Fascicolo OH/2-4-3-6 ITC MULTI9 A3 (IT, EN, FR, DE, ES, NL, PT, PL, RU)
Download OH/XITC conformity declaration (CE)

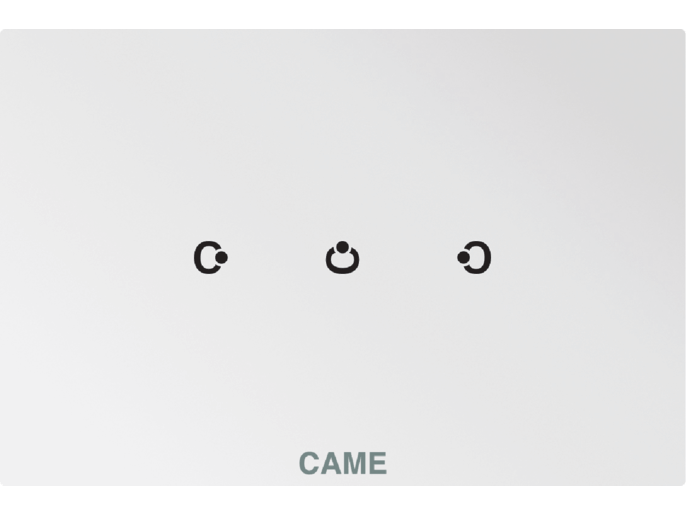

OH/3ITC WH

It features three digital inputs controlled by touch-sensitive keys on the glass plate. Each input can be programmed with all the functions available to the system. The keys have an LED to show the on/off state of their corresponding controlled output. Direct bus connection. Auxiliary power-supply 12 ÷ 24. Installation on standard 3-module rectangular box. White.

Download Fascicolo OH/2-4-3-6 ITC MULTI9 A3 (IT, EN, FR, DE, ES, NL, PT, PL, RU)
Download OH/XITC conformity declaration (CE)

OH/4ITC BK

It features four digital inputs controlled by touch-sensitive keys on the glass plate. Each input can be programmed with all the functions available to the system. The keys have an LED to show the on/off state of their corresponding controlled output. Direct bus connection. Auxiliary power-supply 12 ÷ 24. Installation on standard round box (60 mm diameter). Black.

Download Fascicolo OH/2-4-3-6 ITC MULTI9 A3 (IT, EN, FR, DE, ES, NL, PT, PL, RU)
Download OH/XITC conformity declaration (CE)

OH/4ITC WH

It features four digital inputs controlled by touch-sensitive keys on the glass plate. Each input can be programmed with all the functions available to the system. The keys have an LED to show the on/off state of their corresponding controlled output. Direct bus connection. Auxiliary power-supply 12 ÷ 24. Installation on standard round box (60 mm diameter). White.

Download Fascicolo OH/2-4-3-6 ITC MULTI9 A3 (IT, EN, FR, DE, ES, NL, PT, PL, RU)
Download OH/XITC conformity declaration (CE)

OH/2ITC BK

It features two digital inputs controlled by touch-sensitive keys on the glass plate. Each input can be programmed with all the functions available to the system. The keys have an LED to show the on/off state of their corresponding controlled output. Direct bus connection. Auxiliary power-supply 12 ÷ 24. Installation on standard round box (60 mm diameter). Black.

Download Fascicolo OH/2-4-3-6 ITC MULTI9 A3 (IT, EN, FR, DE, ES, NL, PT, PL, RU)
Download OH/XITC conformity declaration (CE)

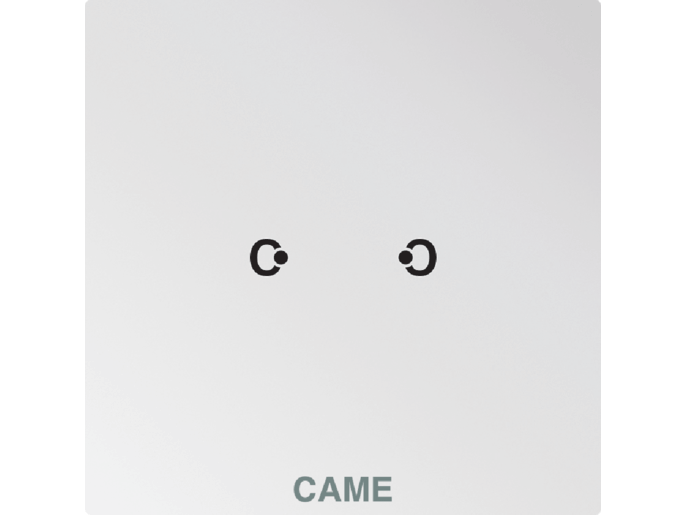

OH/2ITC WH

It features two digital inputs controlled by touch-sensitive keys on the glass plate. Each input can be programmed with all the functions available to the system. The keys have an LED to show the on/off state of their corresponding controlled output. Direct bus connection. Auxiliary power-supply 12 ÷ 24. Installation on standard round box (60 mm diameter). White.

Download Fascicolo OH/2-4-3-6 ITC MULTI9 A3 (IT, EN, FR, DE, ES, NL, PT, PL, RU)
Download OH/XITC conformity declaration (CE)

STANDARD INDUSTRY PLAQUES

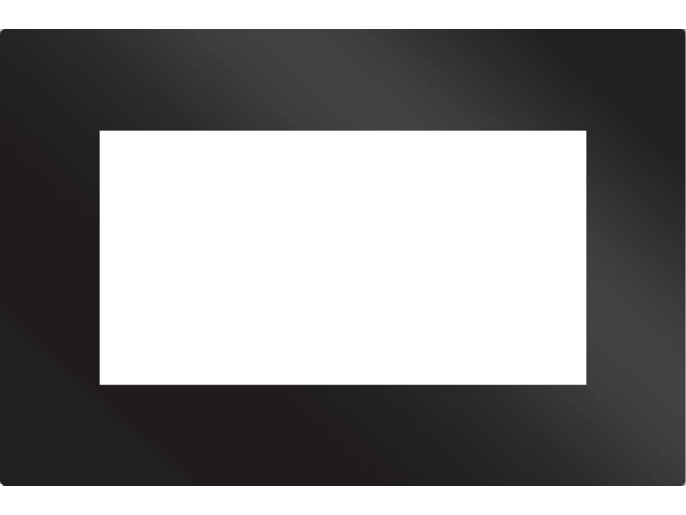

PLV3M BK

Can be used with the BTicino Axolute series. Installation on standard 3-module rectangular box.

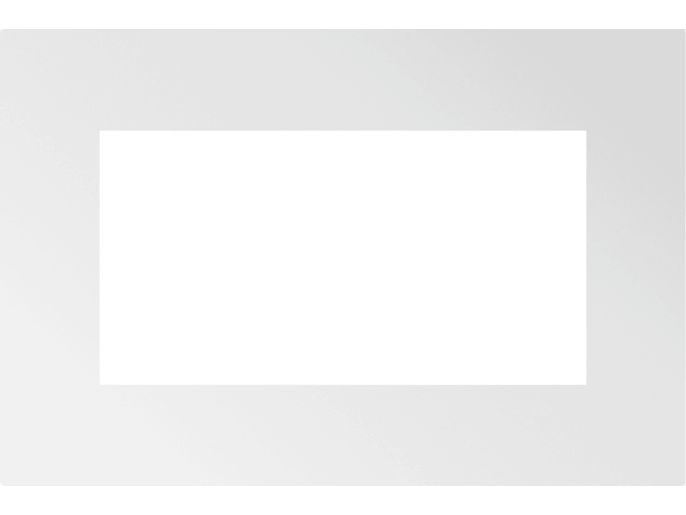

PLV3M WH

Can be used with the BTicino Axolute series. Installation on standard 3-module rectangular box.

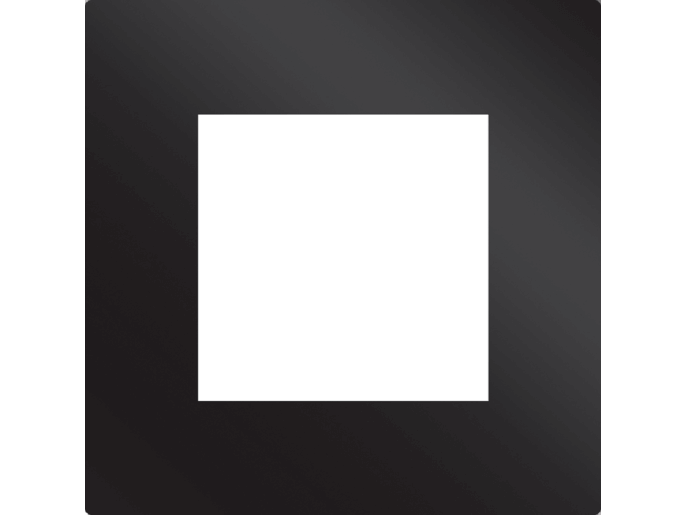

PLV2M BK

Can be used with the BTicino Axolute series. Installation on standard round box (60 mm diameter).

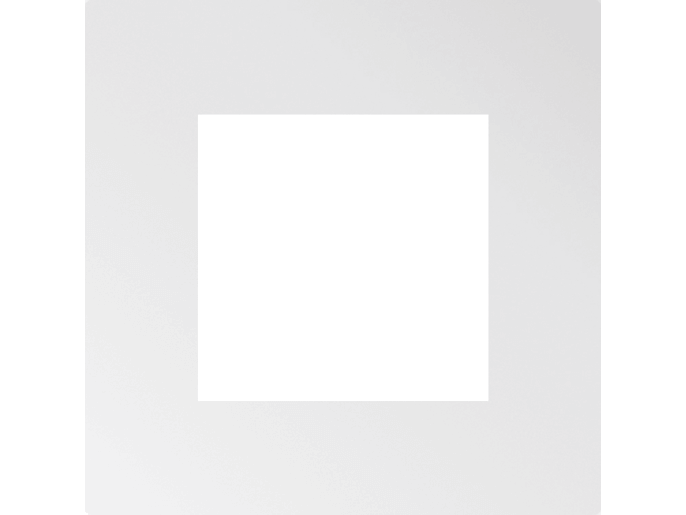

PLV2M WH

Can be used with the BTicino Axolute series. Installation on standard round box (60 mm diameter).

DIGITAL INPUT AND OUTPUT MODULES

OH/6I

It features six digital inputs for connecting control devices, such as buttons or detector output contacts. The container can be installed in a switchboard on a DIN rail or built into the bottom of the box.

Download OH/6I conformity declaration (CE)

OH/4I

It features four digital inputs for connecting control devices, such as buttons or detector output contacts, plus four O.C. outputs for connecting alert LEDS, to pair up with a system's outputs, to have visual feedback on the state of the controlled load. The container can be installed in a switchboard on a DIN rail or built into the bottom of the box.

Download FASCICOLO OH/4I MULTI6 A3 (IT, EN, FR, DE, ES, PT)
Download OH/4I conformity declaration (CE)

OH/RP

It features one relay output with an NO contact for controlling an electric load. The container can be installed in a switchboard on a DIN rail or built into the bottom of the box.

Download FASCICOLO OH/RP MULTI4A A4 (IT, EN, FR, RU)
Download Declaration of conformity

OH/2RP

It features two relay output with an NO contact for controlling electric loads. It is for expanding - to three - the outputs of the OH/RP module to which it is always paired with. The container can be installed in a switchboard on a DIN rail or built into the bottom of the box.

Download FASCICOLO OH/2RP MULTI4A A5 (IT, EN, FR, RU)

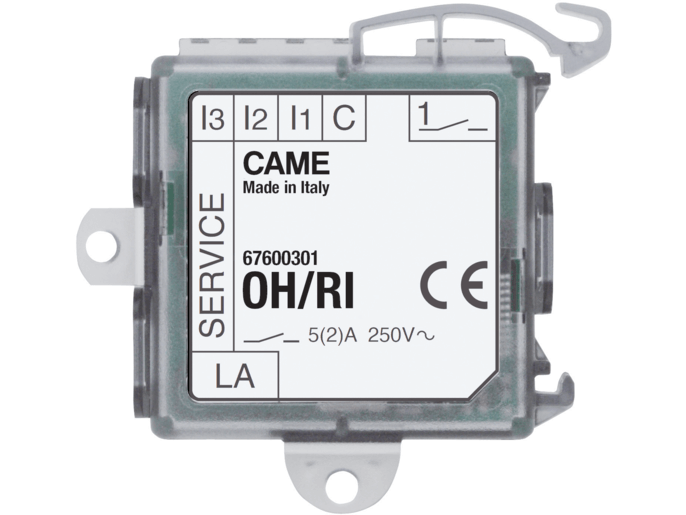

OH/RI

It features one relay output with an NO contact for controlling an electric load and three digital inputs for connecting control devices, such as buttons or detector output contacts. The container can be installed in a switchboard on a DIN rail or built into the bottom of the box.

Download FASCICOLO OH/RI MULTI6 A3 (IT, EN, FR, DE, ES, PT)
Download Dichiarazione di Conformità - OH/RI

OH/3RPI

It features three relay outputs with an NO contact for controlling electric loads and three digital inputs for connecting control devices, such as buttons or detector output contacts. The container can be installed in a switchboard on a DIN rail or built into the bottom of the box.

Download FASCICOLO OH/3RPI MULTI4A A4 (IT, EN, FR, RU)
Download OH/3RPI conformity declaration (CE)

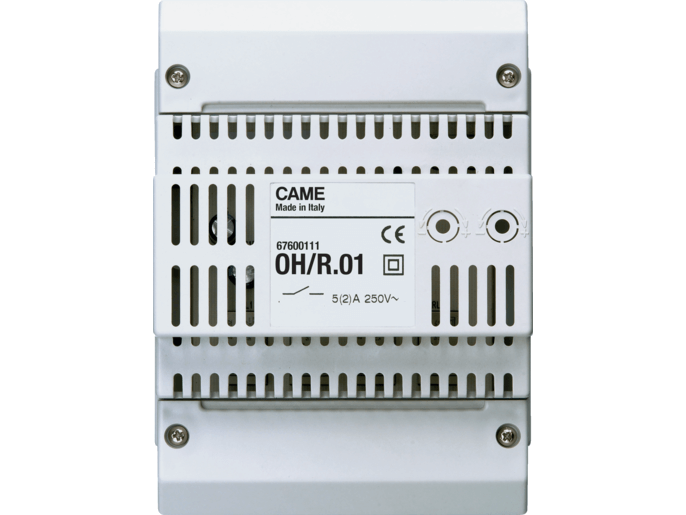

OH/R.01

It features four relay outputs with an exchanger C-NO-NC contact for controlling electric loads and four digital inputs for connecting control devices, such as buttons or detector output contacts. The container can be installed in a switchboard on a DIN rail

Download FASCICOLO OH/R.01 MULTI6 A3 (IT, EN, FR, DE, ES, PT)

OH/RI4416

It features four relay outputs with a C-NO-NC contact for controlling electric loads and four digital inputs for connecting control devices, such as buttons or detector output contacts. The outputs can be manually activated via the four selectors fitted on the front panel. The container can be installed in a switchboard on a DIN rail.

Download FASCICOLO OH/RI4416 MULTI4A A3 (IT, EN, FR, RU)

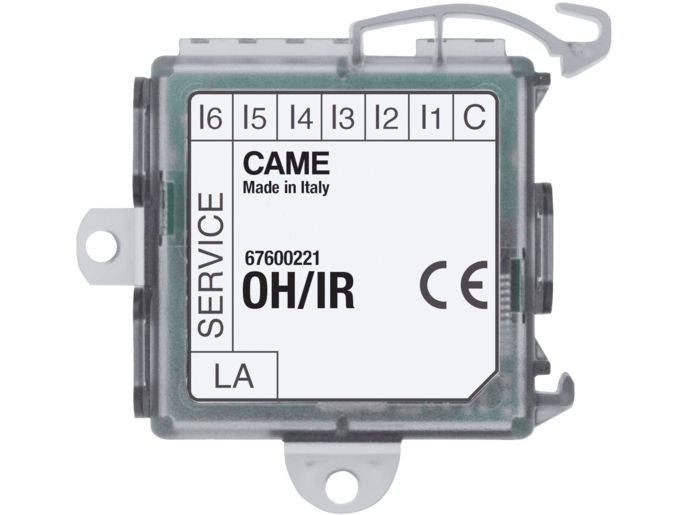

OH/IR

It features an IR receiver for talking to the OH/IRTX10 remote control fro which it gets its commands, plus two digital inputs for connecting control devices, such as buttons or detector output contacts. The container can be installed in a switchboard on a DIN rail or built into the bottom of the box.

Download FASCICOLO OH/IR MULTI6 A3 (IT, EN, FR, DE, ES, PT)

OH/IRTX01

It features twelve keys, which can be programmed as system inputs for sending as many commands to the home-automation system.

Download FASCICOLO OH/IRTX01 MULTI6 A5 (IT, EN, FR, DE, ES, PT)

MODULES FOR CONTROLLING OPERATORS

OH/MA

It features 3 relay outputs for controlling motor-powered devices and 3 inputs for locally controlling the corresponding outputs (Up, Down, Stop). The container can be installed in a switchboard on a DIN rail or built into the bottom of the box.

Download FASCICOLO OH/MA MULTI4A A4 (IT, EN, FR, RU)
Download OH/MA conformity declaration (CE)

OH/CRP

It is for controlling 8 Came automation systems, for example, Sipario automatic doors or Fast40 gate operators, by connecting the home-automation bus to the Came CRP operator bus. The container can be installed in a switchboard on a DIN rail or built into the bottom of the box.

Download FASCICOLO OH/CRP MULTI4A A4 (IT, EN, FR, RU)
Download OH/CRP conformity declaration (CE)

ANALOG INPUT AND OUTPUT MODULES

OH/AI4

It features four 0-10 V analog inputs; 4 - 20 mA and 2 impulse-counter inputs (0 - 256 Khz) for measuring the signals coming from devices with analog outputs (anemometers, light sensors, humidity detectors, and so on). The casing lets you install it on the control panel, on DIN guides or recess-mount it on the bottom of the box.

Download FASCICOLO OH/AI4 MULTI6 A3 (IT, EN, FR, DE, ES, PT)
Download OH/AI4 conformity declaration (CE)

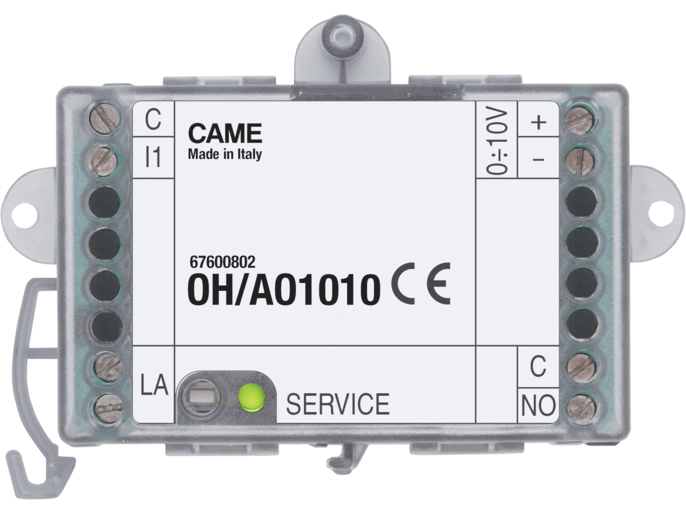

OH/AO1010

It features one 0 - 10 V analog input, one relay output with NO contact for powering on and off the corresponding connected electrical load, plus one input for connecting control devices, such as buttons. The container can be installed in a switchboard on a DIN rail or built into the bottom of the box.

Download FASCICOLO OH/AO1010 MULTI6 A4 (IT, EN, FR, DE, ES, PT)
Download FASCICOLO OH/AO1010 MULTI4A A3 (IT, EN, FR, RU)

OH/AO4010

It features four 0-10V analog outputs, four NO-contact relay outputs to power on and off any corresponding, connected power-loads, and, four inputs for connecting control devices, such as buttons. The container can be installed in a switchboard on a DIN rail.

Download FASCICOLO OH/AO4010 MULTI4A A3 (IT, EN, FR, RU)

OH/DI300

It features a 3W to 300W one-channel dimmer for controlling lighting and one input for connecting control devices such as buttons. The container can be installed in a switchboard on a DIN rail.

Download FASCICOLO OH/DI300 MULTI4A A3 (IT, EN, FR, RU)
