PKM

The new PKM range shares several features with the high-end PKE system, but the end cost is lower and therefore
more within limited budgets.

MAIN FEATURES

State of the art technological solutions: QR, TFT screens, NFC, contactless, etc..
Mid range system with thermal roll of paper and standard printer (QR, bar codes, etc.).
The system is designed for tool-less technical maintenance jobs.
The automatic pay-station has become a multi-service kiosk. It can be transformed into a 'remote' manual pay-station and offer various products and services for sale. These can be associated to other companies for any promotions or discounts.
Stand alone system, with centralized remote control.

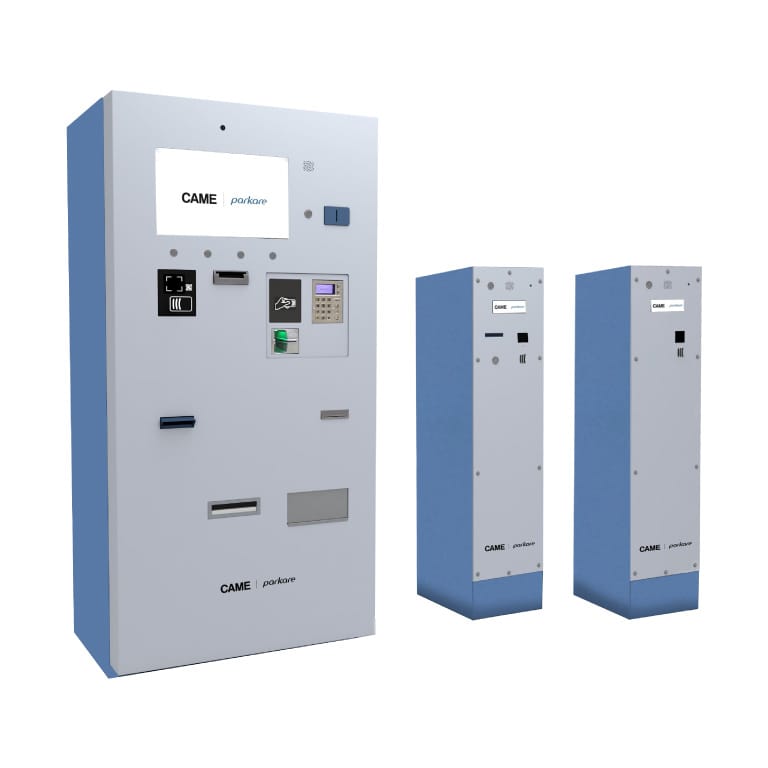

PKM System

Finally, a solution free of any particular base-device, but that lets you process paperless transactions: any credit cards, NFC contact-less technology, Card in / Card out, and so on.

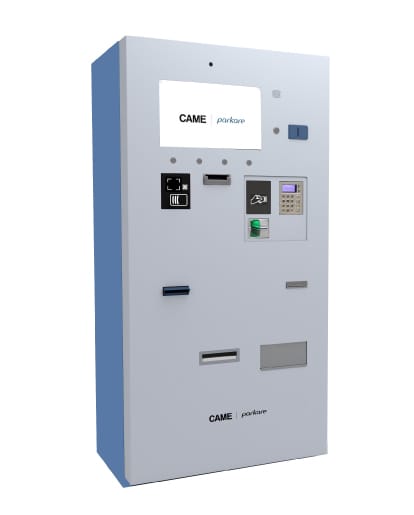

PKM AUTOMATIC PAY STATION

The pay station is not just a payment terminal but a complete multifunctional 3-in-one station (information point, advertising and products sale) characterised by a compact design and the use of advanced technologies.

FEATURES:

15.6" LVDS Colour TFT display in panoramic format.
4 language options (defined by the client).
IP intercom for communication with the control room.
4 operation buttons.
Motion sensor to reduce energy consumption.
Embedded PC based on architecture x86 and support SSD for data storage.
Barcode reader 1D/2D with capacity to read codes on tickets, printed paper and mobile devices.
Thermal receipt printer.
Electronically regulated internal ventilation system.
Coins module with change giving. Accepts up to 16 denominations of different coins and automatic return of 3 different values.
3 self-charging coin hoppers, with a capacity of 700 coins each.
5.5 litres security coin box.
Cabinet constructed from 2 mm AP02 steel with antioxidant treatment and oven dried polyester powder paint.
Frontal door with a security lock with 3 locking points.
Micro sensors for automatic detection: door opening, coin box removal, hoppers removal and note box removal.
Interior lighting system.

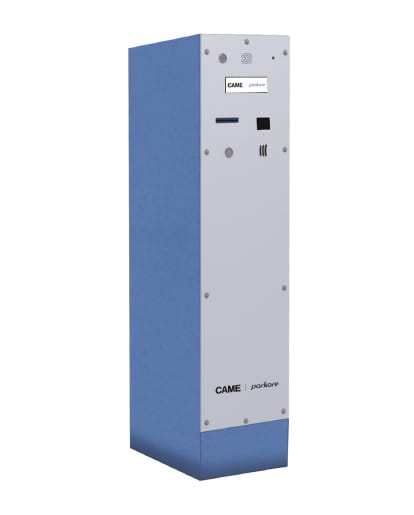

PKM ENTRY TERMINAL

The PKM entry terminal stands out for its compact design, concentrated on the smallest possible space, full of the power of technology. The PKM entry terminal has a printer, so maintenance gets reduced.

FEATURES:

User friendly, 240 x 64 pixels graphic display.
Buttons to request tickets.
2 language operation (configurable by the client).
PC embedded based on architecture x86 and support SSD for data storage.
Cabinet constructed from 1,5 mm AISI 430 Stainless Steel with an oven dried polyester powder paint, suitable for outdoor use.
Side door with a 3mm anchor point.
Ethernet communications (TCP/IP).
Barrier controlled by GPIO.
Thermal printer to issue tickets in 1D/2D.
Interior heating and ventilation system.

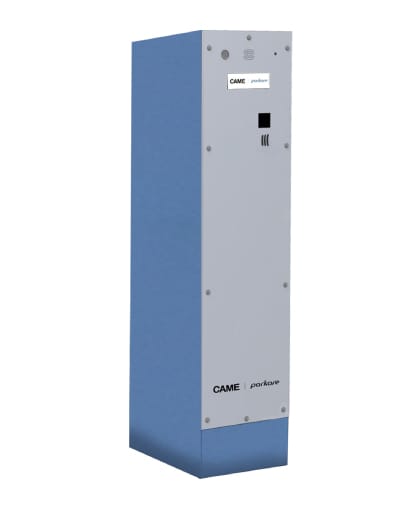

Terminale di uscita

Il terminale di uscita PKM si distingue per il suo design compatto che concentra nel minimo spazio possibile tutte le più avanzate funzioni tecnologiche. Il terminale di uscita PKM non ha parti mobili - identifica gli utenti occasionali leggendo i ticket

FEATURES:

Display grafico da 240 x 64 pixel di uso intuitivo.
2 lingue opzionali (configurabili dal cliente).
PC integrato basato sull'architettura x86 ed SSD per la memorizzazione dei dati.
Struttura in acciaio inossidabile AISI 430 da 1,5 mm con verniciatura a polveri di poliestere essiccata in forno.
Porta laterale con punto di ancoraggio di spessore 3 mm.
Comunicazioni Ethernet (TCP/IP).
Barriera controllata da GPIO.
Lettore di codici a barre su ticket, carta stampata e dispositivi mobili.

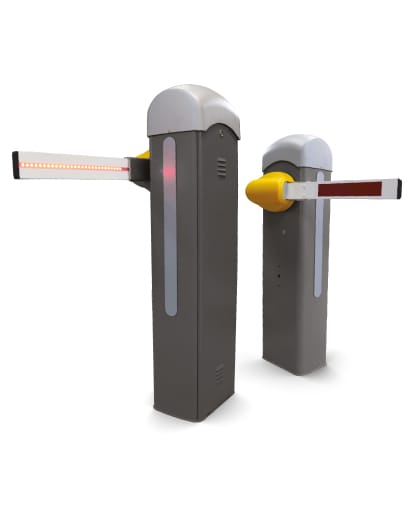

BARRIER PRK-CA

Innovation and design for all-inclusive safety: these are the most recent additions to the PRK-CA barrier line family.

FEATURES:

An electronic contact automatically interrupts the power supply voltage as soon as the inspection door is opened.
Differentiated sensitivity spring for exceptional balancing of the bar.
Command electronics. Protected by a die-cast aluminium guard, it is positioned to make any type of intervention extremely practical.
The safety photocells are affixed directly to the barrier body without affecting the aesthetics of the product.
A specific security firmware connected to our Lince software is available.
Polyester powder painted and galvanized steel housing. Available in dark grey or blue (RAL 5023).

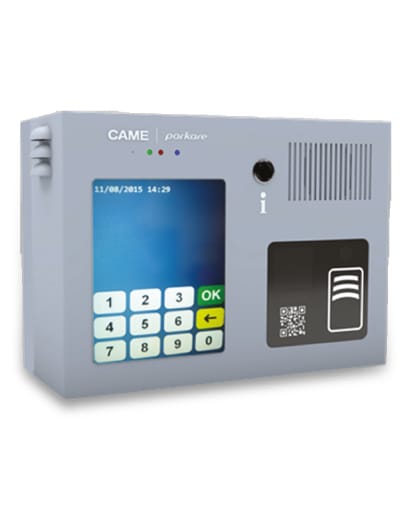

PKM DOOR ACCESS SYSTEM

Parkare's door access system allows pedestrian access for users and season ticket holders with any identification (RFID, TAG, magnetic stripe, barcode, QR) or by inserting the number plate.

FEATURES:

Barcode reader 1D/QR, with capacity for reading codes in tickets, printed paper and mobile devices.
Proximity card reader.
PC embedded based on architecture x86 and support SSD for data storage.
Electromagnetic security lock (power supply not included).
Technical box (interior).
Touch screen 6.5", which includes an alphanumeric keyboard.
IP intercom for communication with the back office.
Green LED on.
Red LED operation (unidentified) and green (identified).
Presence detector of the user.
Stainless steel AISI 430 painted in polyester and
oven-dried, suitable for outdoor use.
Ethernet net communications.
I/O signs: opto isolated.
Option ‘On Line’ or ‘Off Line’.
Available as standard in signal yellow and white aluminium (RAL 1003 & 9006), blue and white aluminium (RAL 5023 & 9006) or dark grey and white aluminium (5368A0837 & RAL 9006).

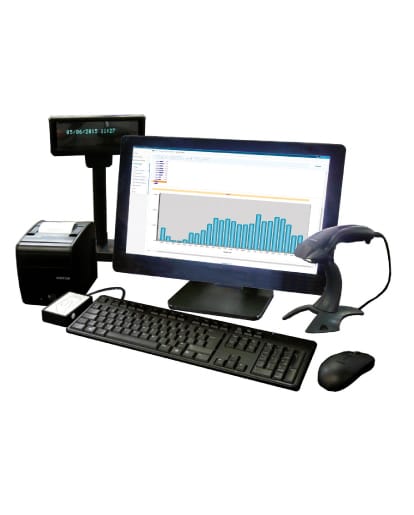

PKM MANUAL CASHIER

A complete support point on site, close to the user and with capacity to receive payment, manage season holders or cards of the system, operate with the data of the system and solve any eventuality.

FEATURES:

All-in-one latest generation computer.
USB mouse and keyboard.
Windows operating system.
Cash drawer with automatic opening.
Display for the customer that shows date and time of the system and the fee to pay.
Receipt printer, end of day audit reports and manual tickets/vouchers.
Barcode reader.
Proximity card reader RFID.
Ethernet communications (TCP-IP).

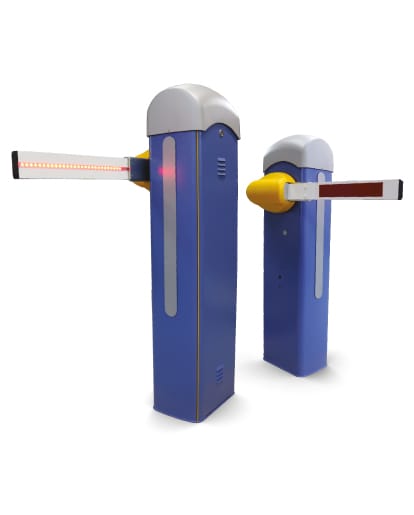

PKM BARRIER

Innovation and design for all-inclusive safety: these are the most recent additions to the PRK-CA barrier line family.

FEATURES:

An electronic contact automatically interrupts the power supply voltage as soon as the inspection door is opened.
Differentiated sensitivity spring for exceptional balancing of the bar.
Command electronics. Protected by a die-cast aluminium guard, it is positioned to make any type of intervention extremely practical.
The safety photocells are affixed directly to the barrier body without affecting the aesthetics of the product.
A specific security firmware connected to our Lince software is available.
Polyester powder painted and galvanized steel housing. Available in dark grey or blue (RAL 5023).
