The full-height system for controlling high-traffic passages
Full-height turnstiles
We can do customer-requested customized RAL paint jobs.
Deliveries take place at least 15 working days from receipt of order.
| MODELS | PSGS3 | PSGD3 | PSGS4 | PSGD4 |
|---|---|---|---|---|
| Protection rating (IP) | 44 | 44 | 44 | 44 |
| Power supply (V - 50/60 Hz) | 120 - 230 AC | 120 - 230 AC | 120 - 230 AC | 120 - 230 AC |
| Stand-by consumption (W) | 22 | 44 | 22 | 44 |
| Weight (Kg) | 360 | 670 | 430 | 800 |
| Max number of passages/min.* | 10 MAX | 10 MAX | 10 MAX | 10 MAX |
| Operating temperature (°C) | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 |

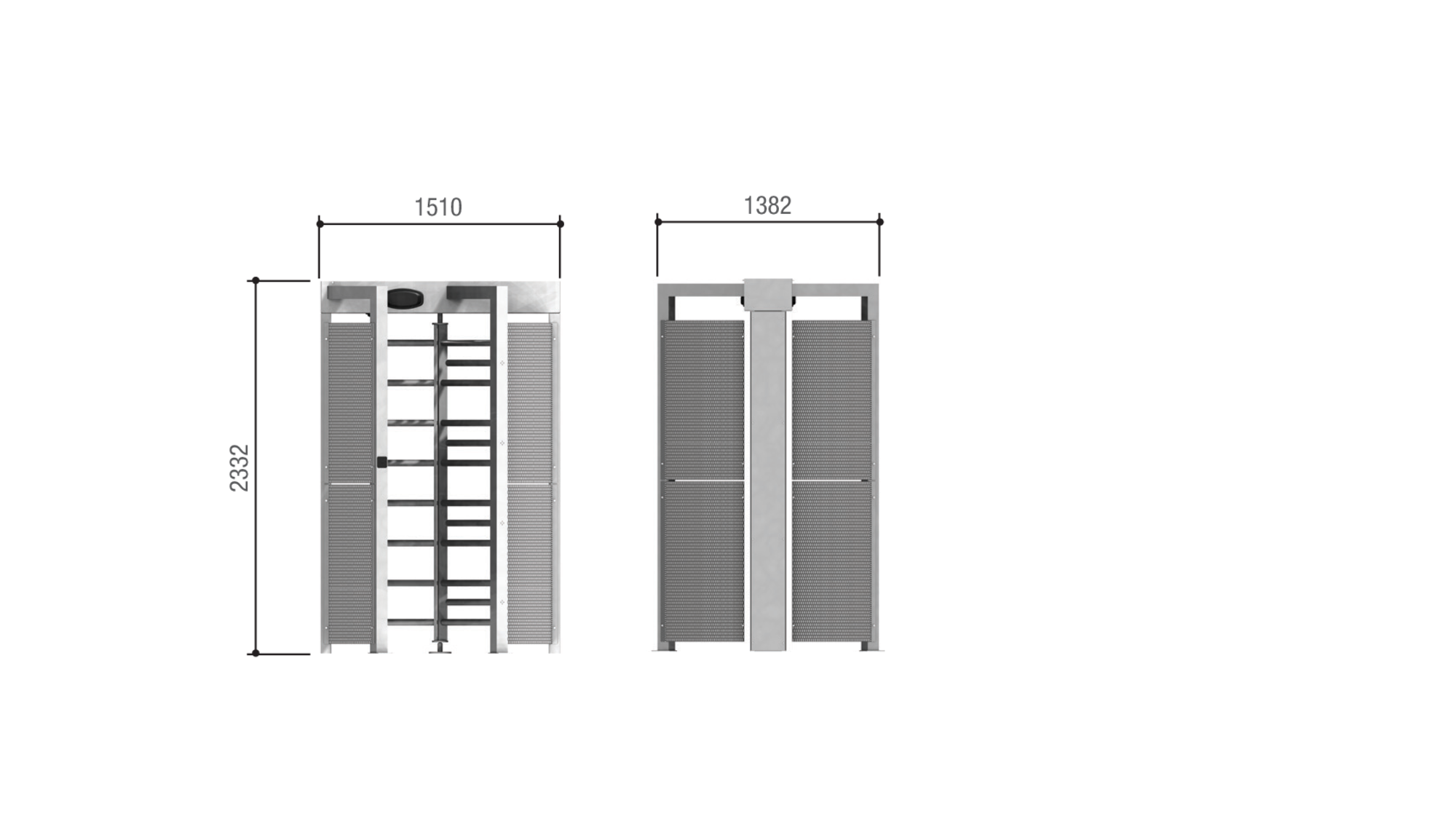

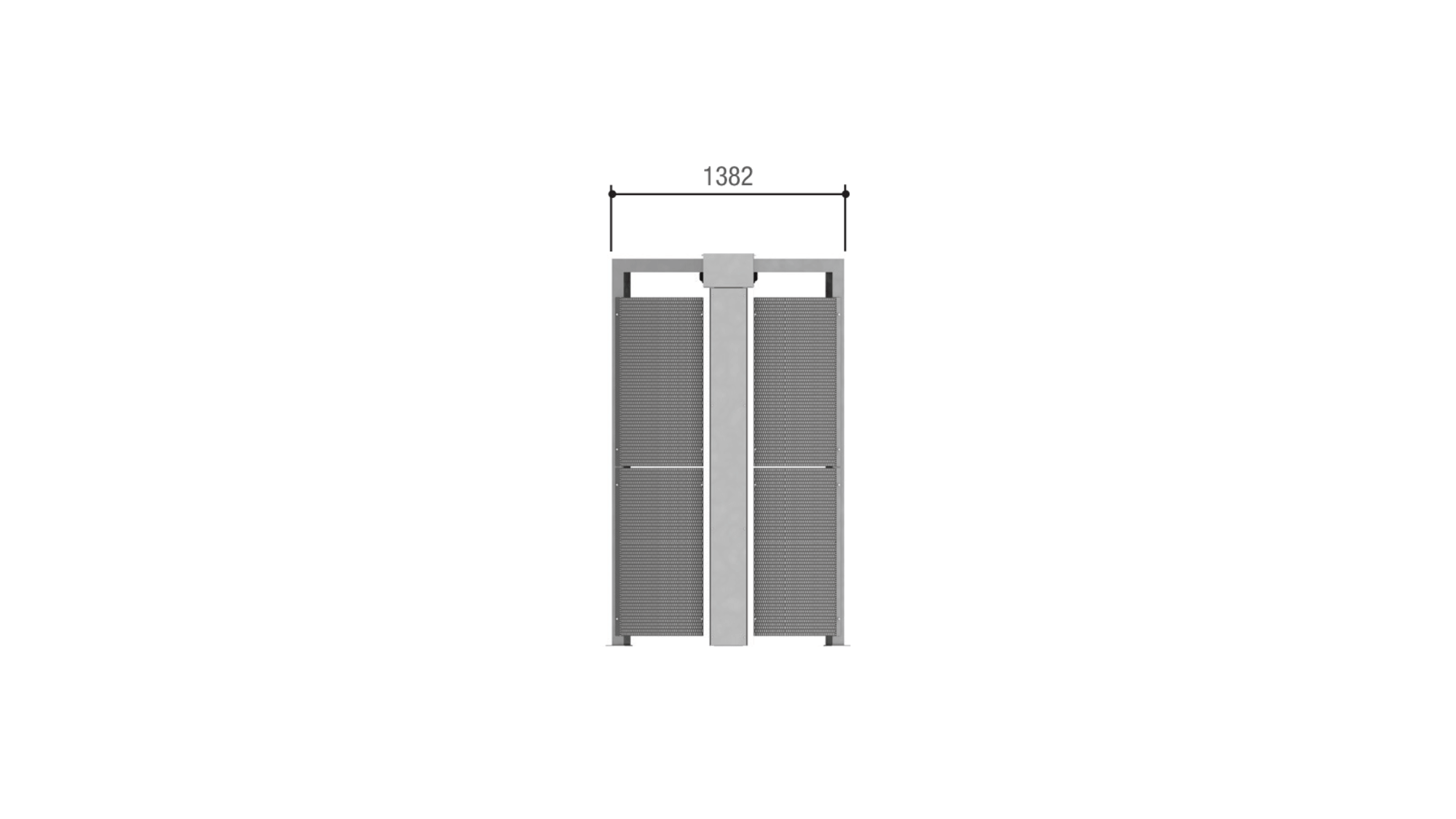

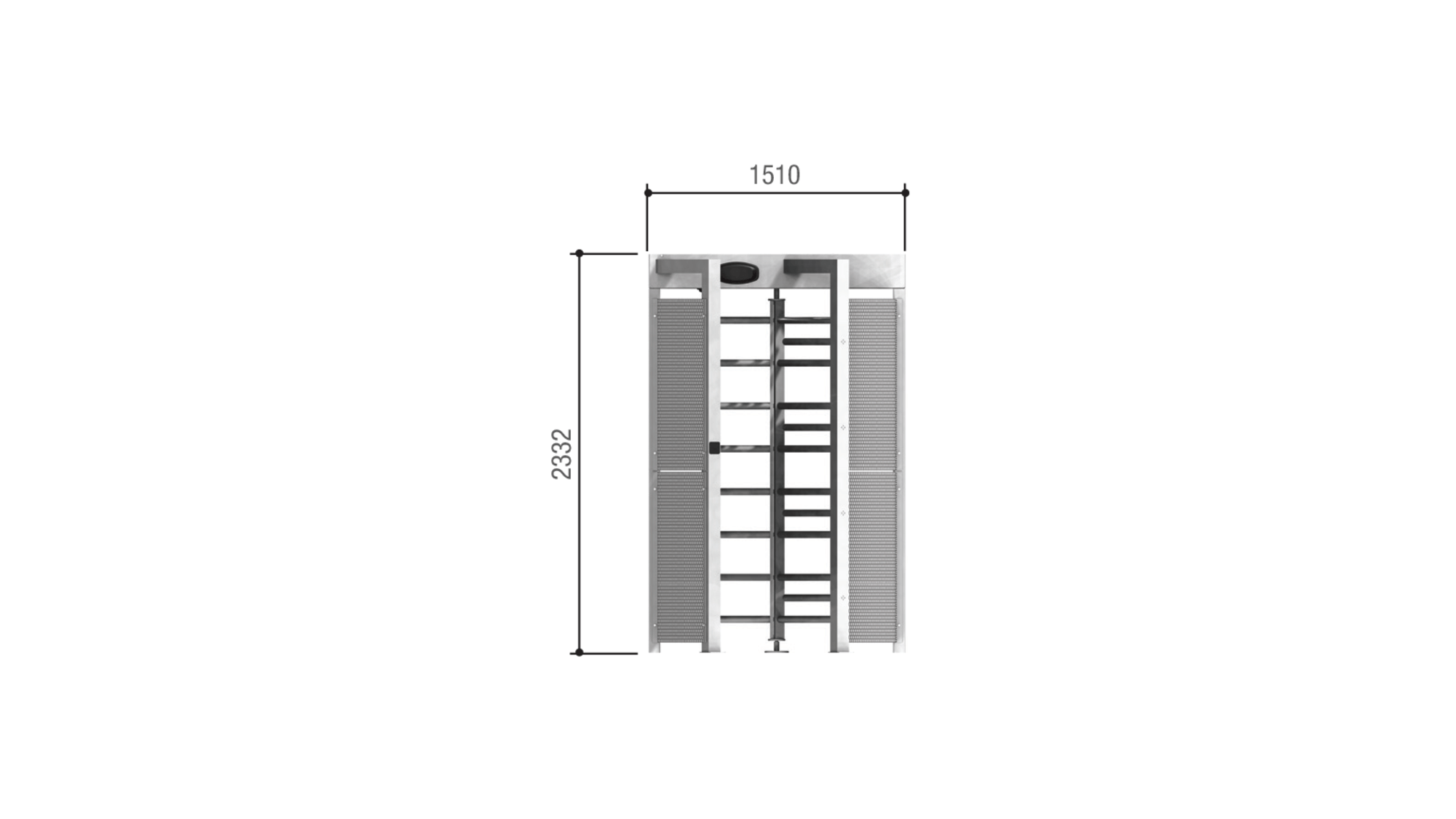

Bidirectional electromechanical single full-height turnstile with three 120° sectors - structure made of RAL 7035 coated galvanized steel, complete with control board and hydraulic brake, LED directional indicators, multifunction display and courtesy light.
Download FASCICOLO GUARDIAN 3 SETTORI MULTI (IT, EN, FR, RU)
Download GUARDIAN conformity declaration (CE)

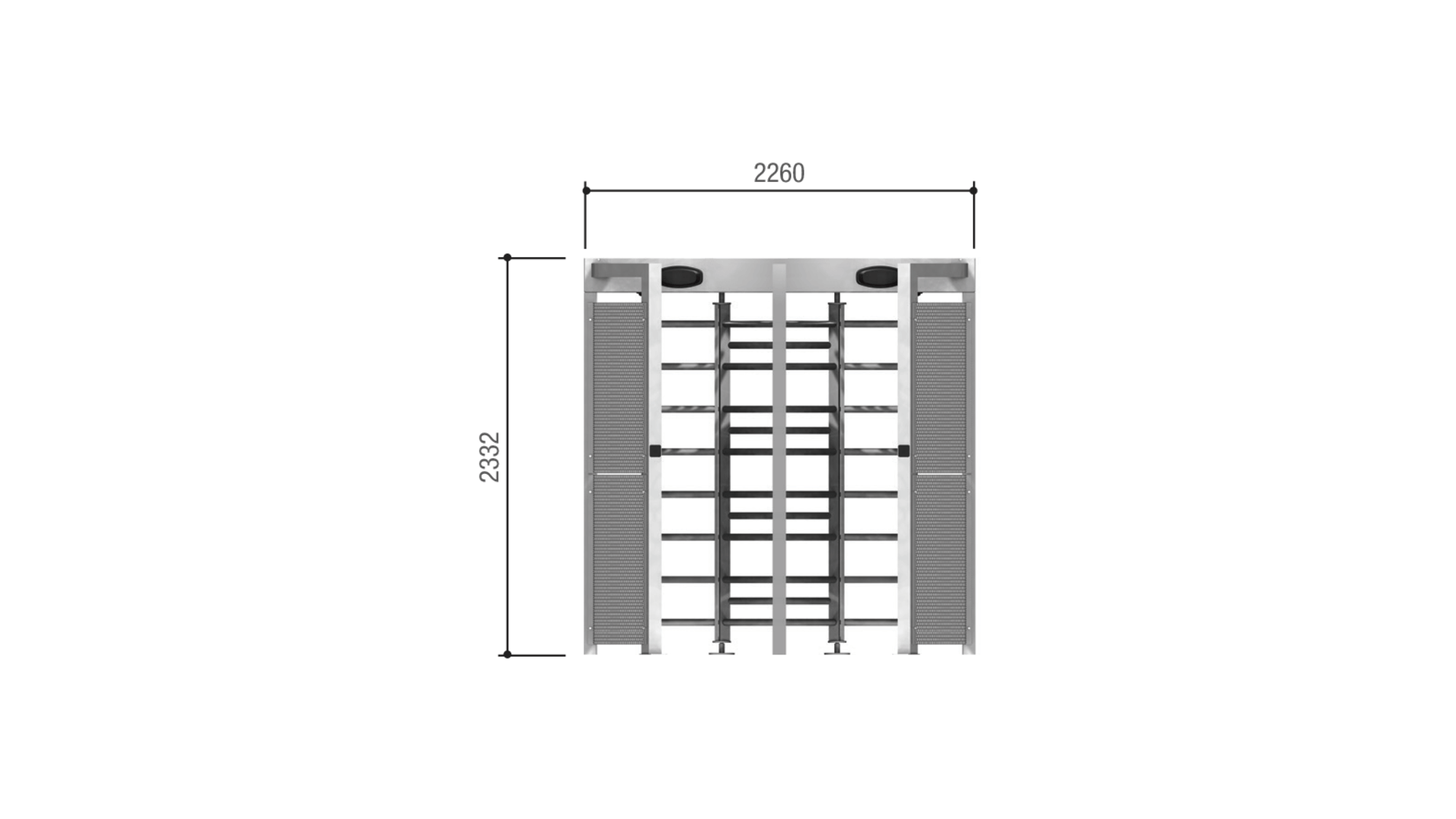

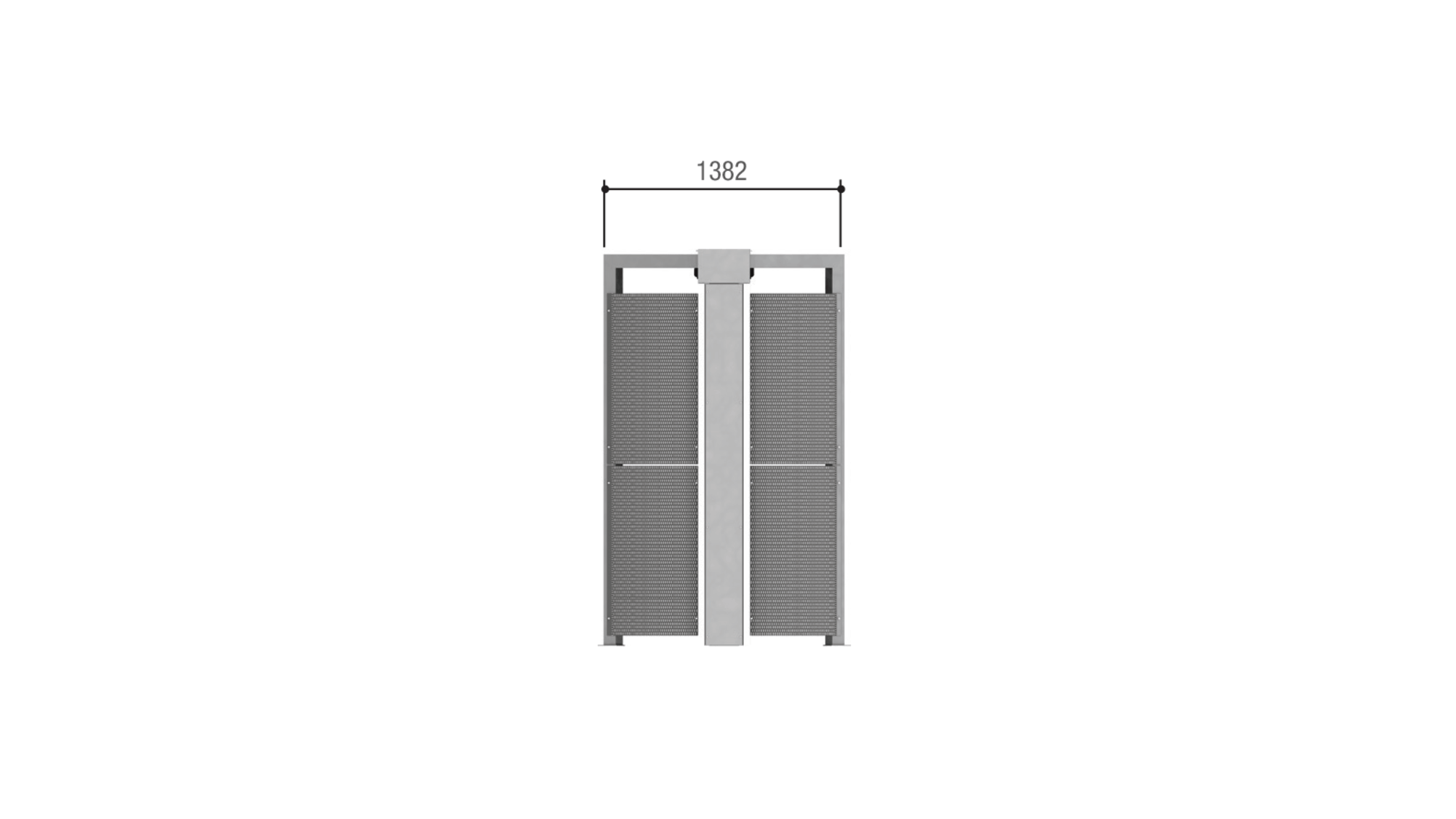

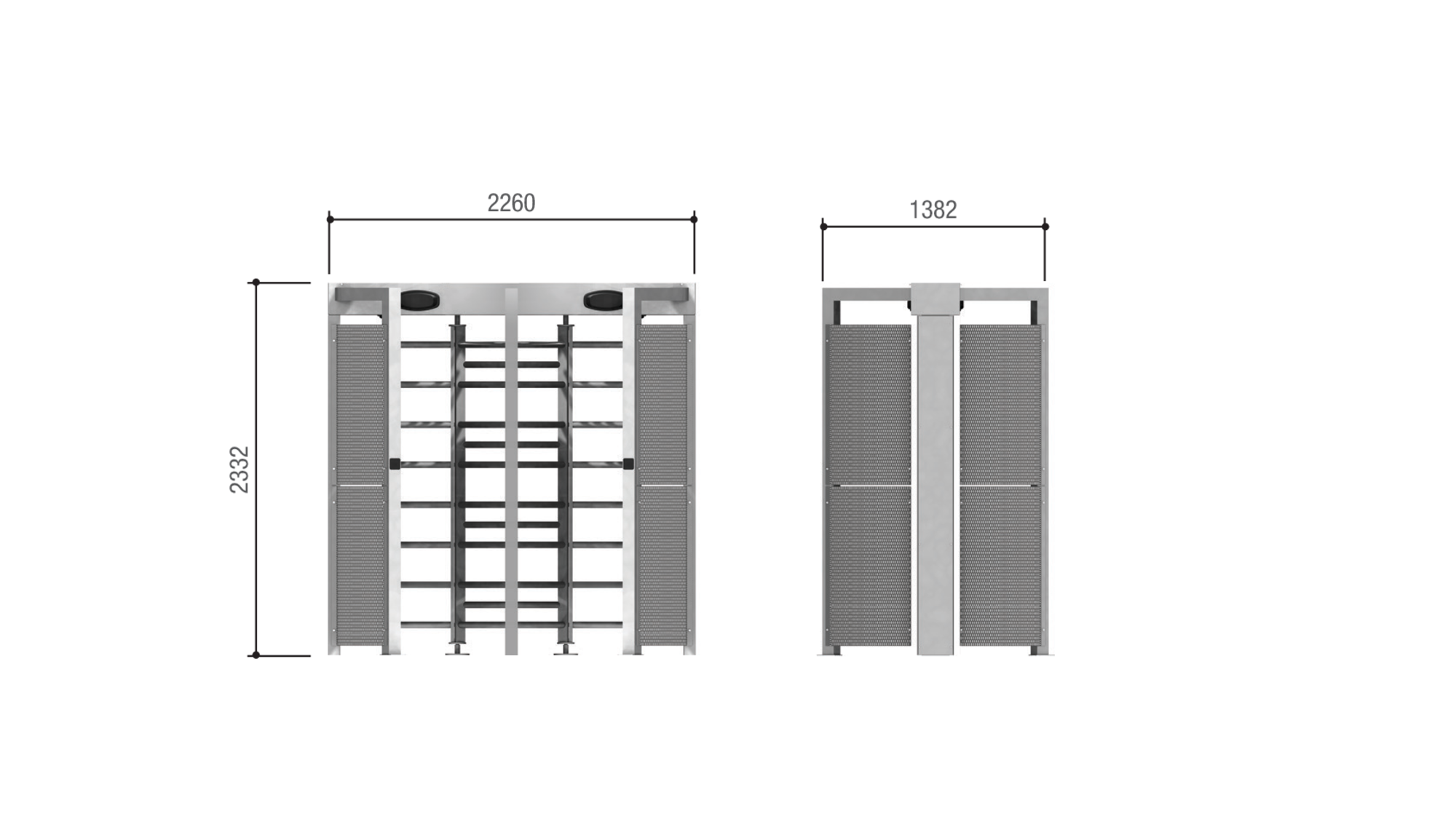

Bidirectional electromechanical full-height double turnstile with three 120° sectors - structure made of RAL 7035 coated galvanized steel, complete with control board and hydraulic brake, LED directional indicators, multifunction display and courtesy light.
Download FASCICOLO GUARDIAN 3 SETTORI MULTI (IT, EN, FR, RU)
Download GUARDIAN conformity declaration (CE)

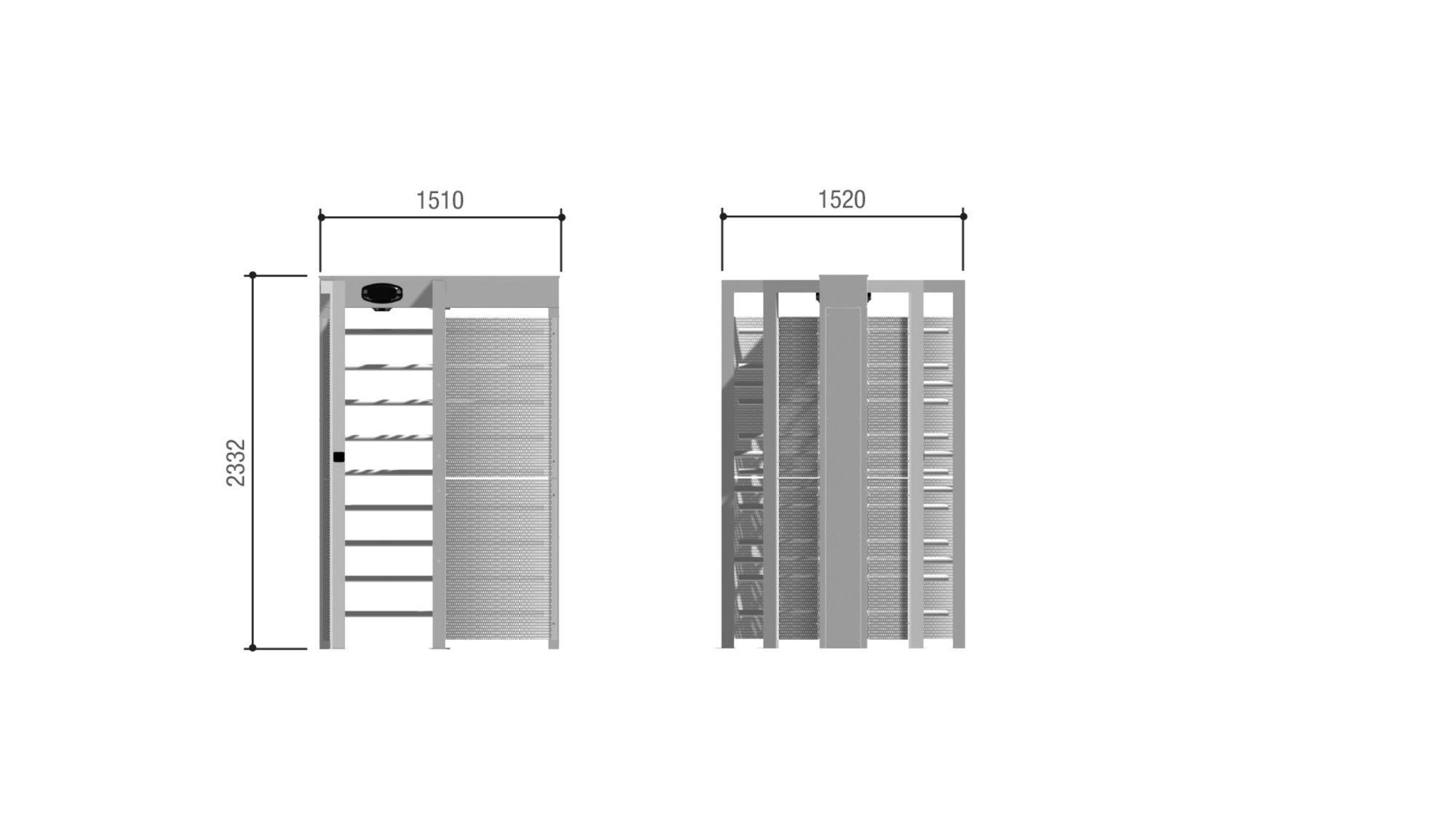

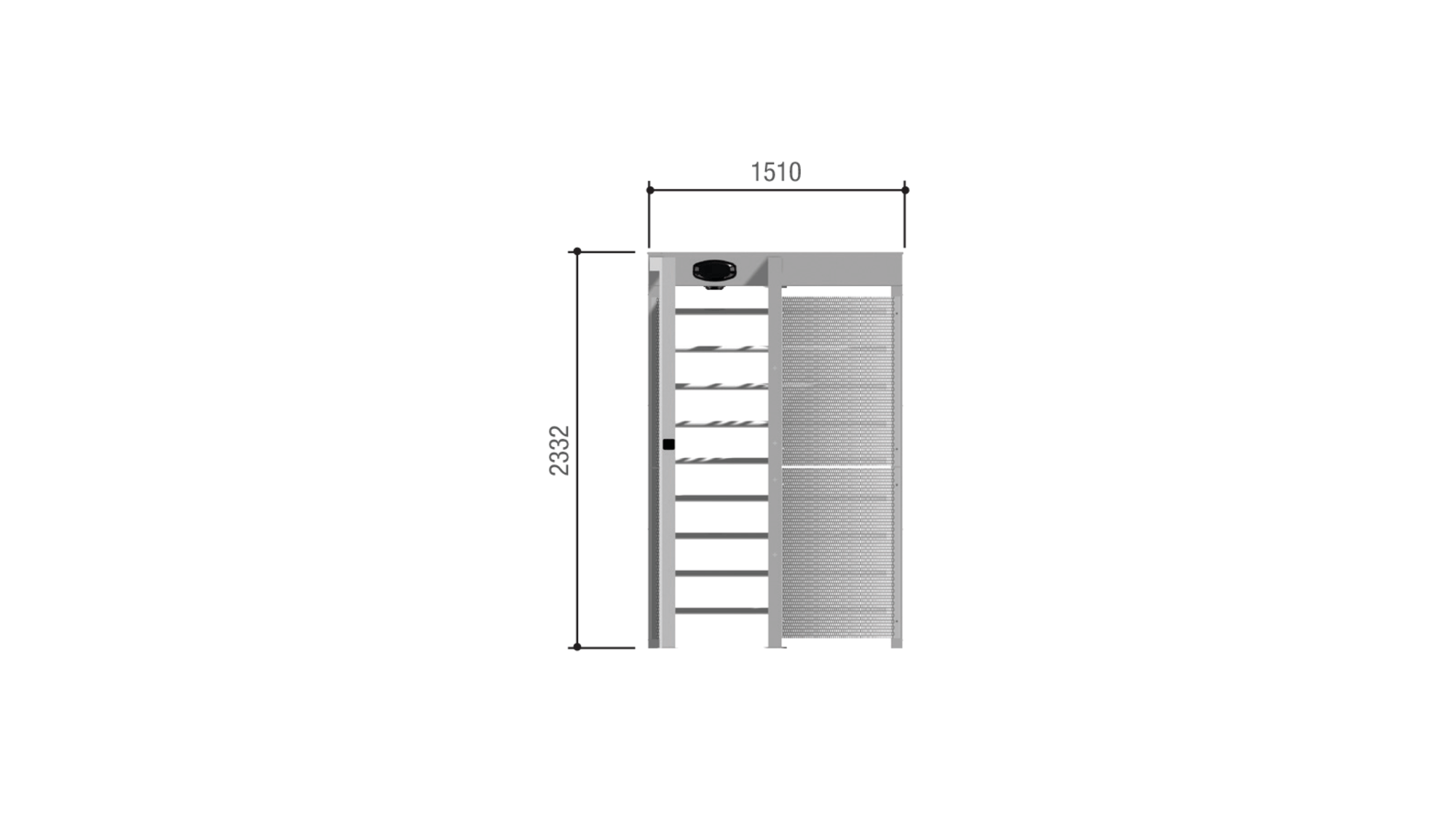

Bidirectional electromechanical full-height single turnstile with four 90° sectors - structure made of RAL 7035 coated galvanized steel, complete with control board and hydraulic brake, LED directional indicators, multifunction display and courtesy light.
Download FASCICOLO GUARDIAN 4 SETTORI MULTI (IT, EN, FR, RU)
Download GUARDIAN conformity declaration (CE)

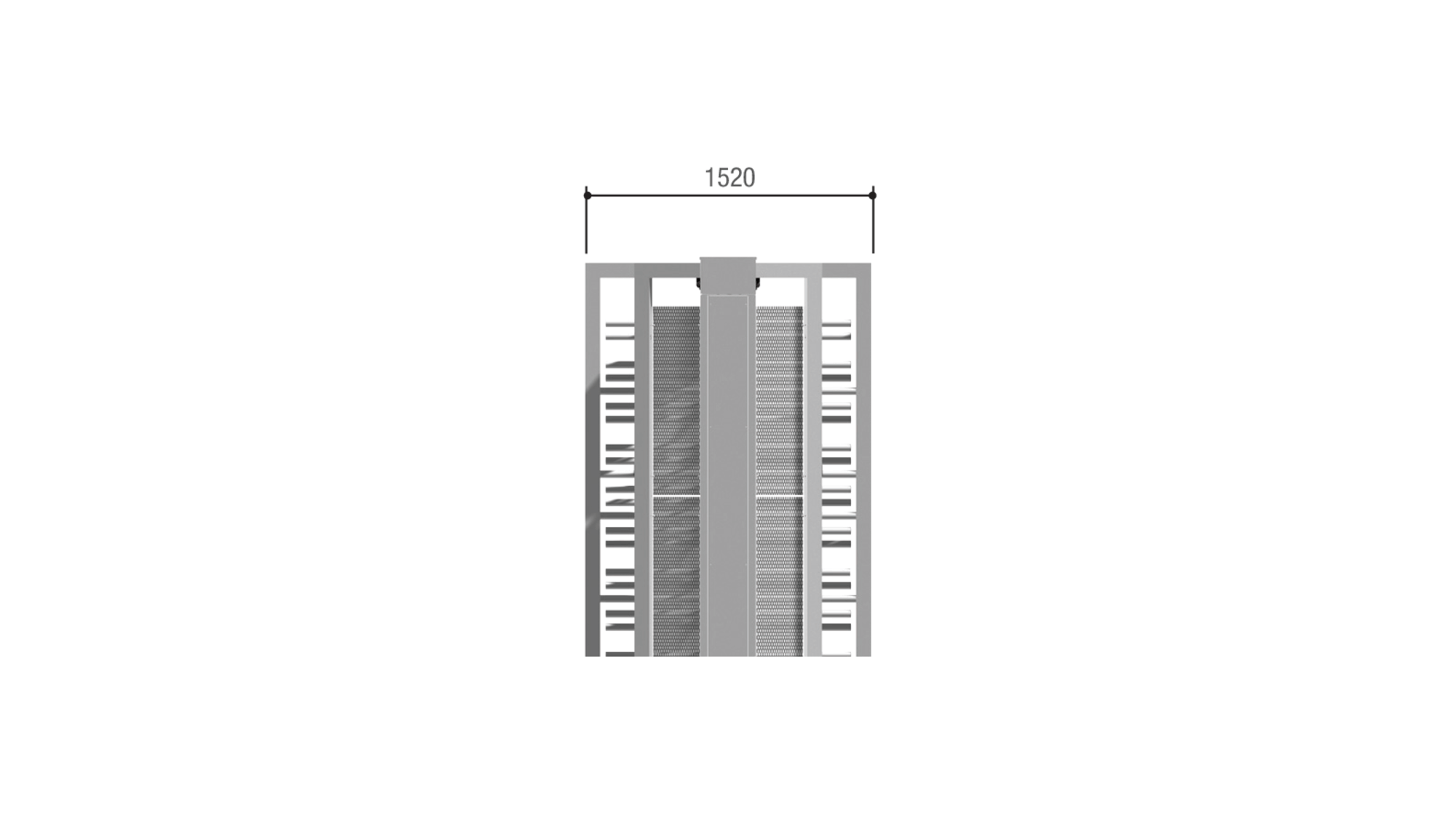

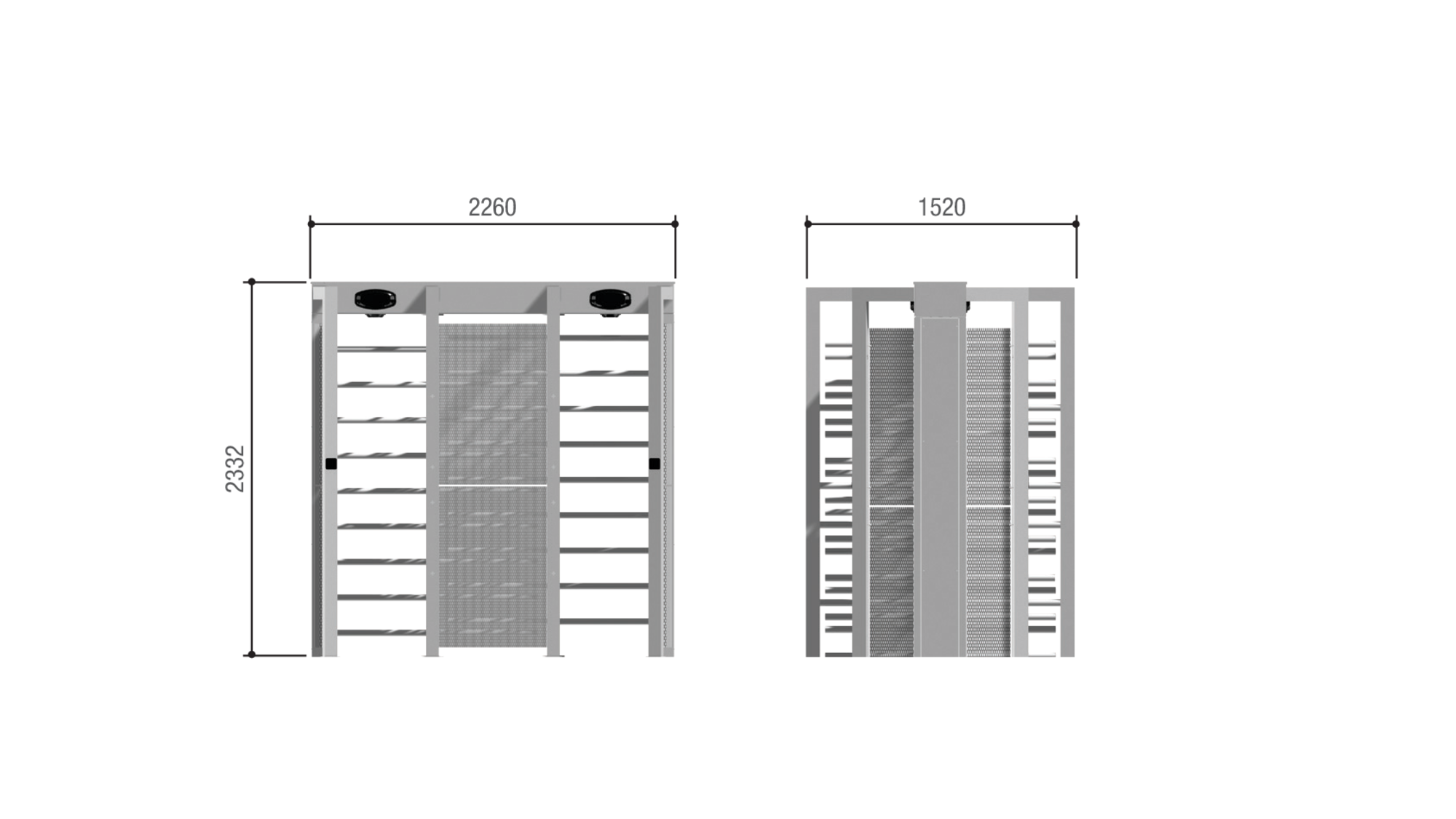

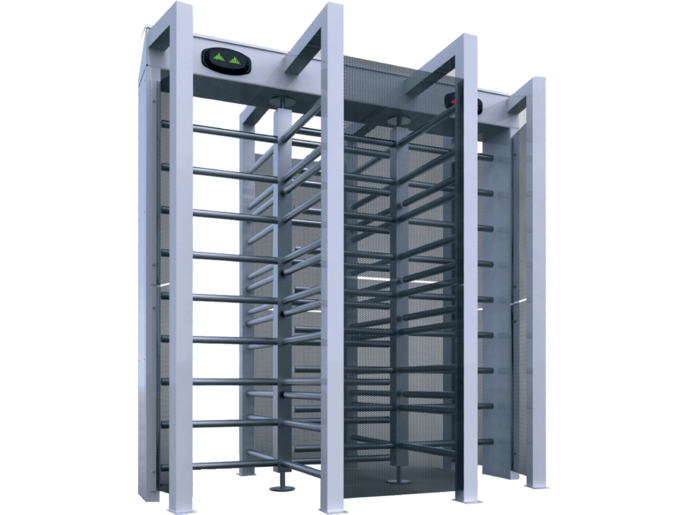

Bidirectional electromechanical full-height double turnstile with four 90° sectors - structure made of RAL 7035 coated galvanized steel, complete with control board and hydraulic brake, LED directional indicators, multifunction display and courtesy light.
Download FASCICOLO GUARDIAN 4 SETTORI MULTI (IT, EN, FR, RU)
Download GUARDIAN conformity declaration (CE)
