Um único dissuasor de alta segurança ONE50EVO consegue resistir aos impactos consecutivos de dois camiões de 7,5T a uma velocidade de 80 km/h. Após o impacto, o dissuasor mantém-se funcional e continua a garantir a segurança dos pontos de acesso.
O dissuasor de alta segurança ONE50EVO foi concebido para controlar os acessos a locais sensíveis e proteger os pontos de acesso estratégicos face a ataques terroristas.
CAME Urbaco is the first manufacturer in the world to have performed two crash tests on the same bollard according to the latest international standards.
The crash tests demonstrated the strength and high level of security of the ONE50EVO bollard, which remains operational even after having stopped several « ramming » trucks.

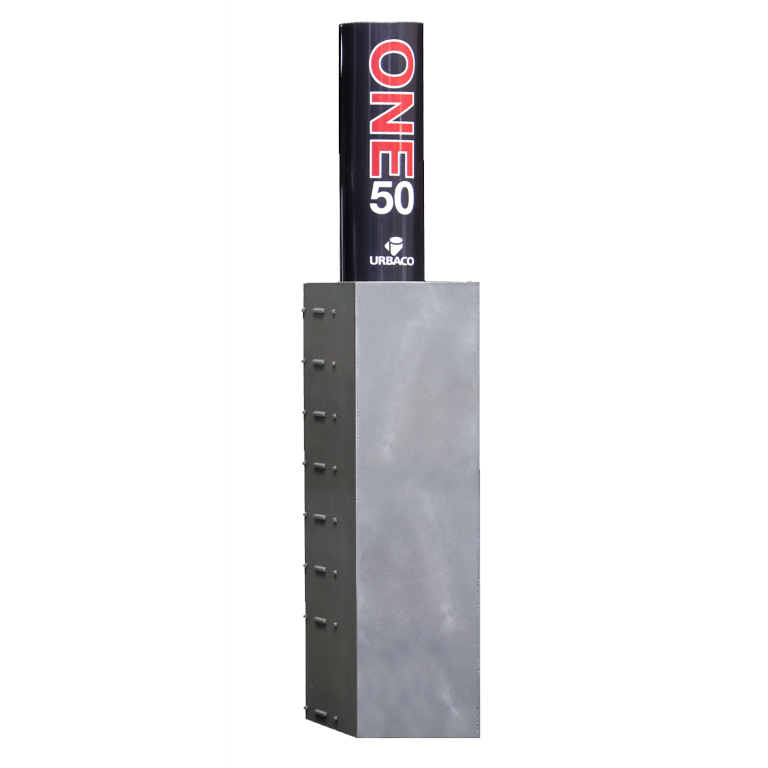

Rectractable ONE50 Evo
Use: Regular to intensive passages
Material: High-strength steel
Display device: Class II reflective band (white)
Illuminated ring: Leds (Red in Standard, White in Option)
Dimensions (mm): Ø325 x H1000 (Above ground)
Motorizations: Standard external hydraulic
External hydraulic E.F.O. (Emergency Fast Rising Operator)
Built-in hydraulic pump in motorisation
Standards: ISO EN 124 - Class F900 (up to 90 tonnes) approved / In compliance with NFP98-310 standard / In compliance with the French PMR decree
Design: CYLINDER
CYLINDER INOX
CUSTOMIZABLE
Crash test n°1: Certified IWA 14-1:2013 Bollard V/7200[N3C]/80/90:4,2*;
Impact energy: 1 776kJ
Certified PAS68:2013 Bollard V/7500[N3]/80/90:3,9/22,7*;
Impact energy: 1 776kJ
Crash test n°2: Certified IWA14-1:2013 Bollard V/7200[N2A]/80/90:2,9*;
Impact energy: 1 765kJ
