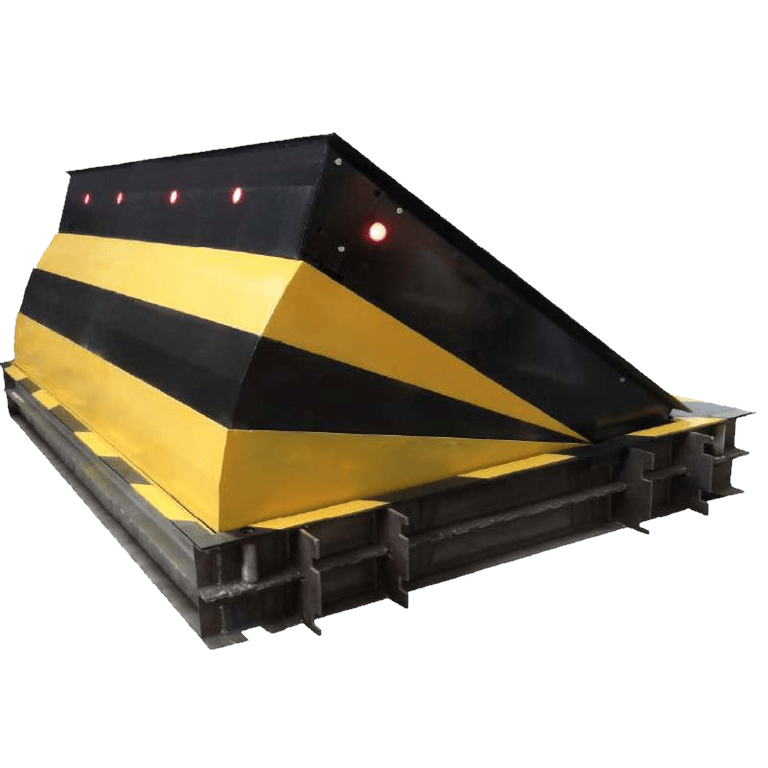

The products 3000mm x 800mm et 3000mm x 1200mm road blocker has been successfully crash tested and certified according to ASTM F2656-07 M50-P1 et ASTM F2656-07 M30-P1. There are impact level from M30 (K4) to M50 (K12), equivalent to a 6,8T truck travelling at 48km/h, 64km/h or 80km/h.
Characteristics
Standard road blocker set characteristics:
• LED indication
• Two units of power cables
• Power station with electronic controller and hydraulic unit
• Wired remote control unit
• Sliding protective curtain
Additional options:
• Hydraulic hose extension
• Wireless remote controls
• Traffic lights
• Heating device (for climates with bellow 0°C)
• Single channel induction loop detector
• Sound alarm
• EFO (Emergency Fast Rising Operator)
• Manual Pump unit
• Others (under demand)
Dimensions
Blocking length (mm): 1000 I 2000 I 3000 I 4000
Lifting height (mm): 800 (K4) I 1000 (K8) I 1200 (K12)
Installation depth (with foundation case): 450 (K4) I 550 (K8) I 600 (K12)
Motorizations: Standard external hydraulic
External hydraulic E.F.O. (Emergency Fast Rising Operator)
Illuminated indication: Leds include
