O dissuasor é gerido por um sistema de controlo de acessos acionado pelo utilizador (controlo remoto, cartão contactless, teclado, etc.) que abre/fecha as vias de acesso. Após a passagem do veículo, o dissuasor sobe automaticamente ou através da utilização de um controlo remoto.

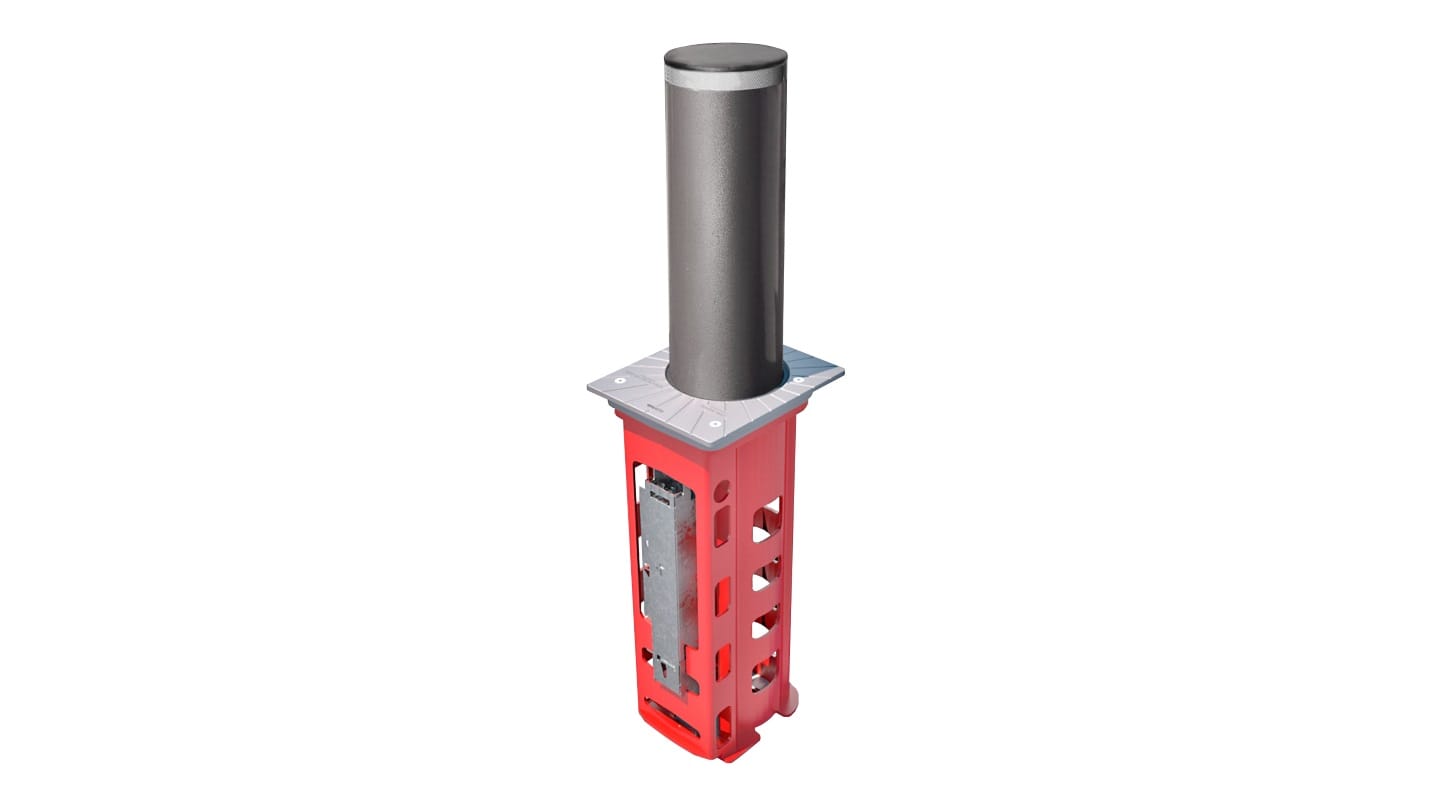

G6 - Automatic retractable bollard

Conception:    Monobloc® conception (Urbaco Patented). Comprises only three structural elements (casing, cover and bollard head, each cast in one piece) with no wear
Use:    Regular to intensive passages
Material:    ductile iron - Average thickness : 11 mm
Treatment:    Zinc-based primer as standard reinforcing corrosion-resistance
Finition:    Matt finish thermosetting polyester powder top coat (RAL7016 standard)
Display device:    Class II reflective band(white)
Impact resistance:    Ø200 : Middle (1,2T at 50km/h)
Ø250 / High (2,5T at 55km/h)
Reability:    4.5 million of operations without any failure neither part replacement
Dimensions (mm):    Ø120 x H500  I  Ø200 x H500  I  Ø250 x H500
Ø120 x H750  I  Ø200 x H750  I  Ø250 x H750

Standard:    ISO EN 124 – E600 Class – Accepted vertical load: 60T per axle / In compliance with NFP98-310 standard / In compliance with the French PMR decree
Design:    CYLINDER
CHÂTEAUNEUF


MOTORIZATIONS

Built-in hydraulic pump
Built-in hydraulic pump
External Hydraulic
External Hydraulic
Pneumatic
Pneumatic
