| MODELS | S5000 | S6000 | S7000 | S9000 |
|---|---|---|---|---|
| Protection rating (IP) | 54 | 54 | 54 | 54 |
| Power supply (V) | 12 - 24 AC - DC * | 12 - 24 AC - DC * | 12 - 24 AC - DC * | One GP23A 12 V DC BATTERY |
| Combinations | 16.777.216 | 1.679.616 | 1.679.616 | 1.562.500 |
| Radio signal frequency (Mhz) | - | - | - | 433,92 |
| Code digits | 8 max. | 6 max. | 6 max. | 8 max. |
| Battery type | - - | - - | - - | - - |
| Operating temperature (°C) | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 |
| Material | ALUMINUM – STEEL | ALUMINUM – STEEL | ALUMINUM – STEEL | ALUMINUM – STEEL |
Recess-mounted, keypad selector made of painted, galvanized steel, with front lighting. 16,777,216 combinations.
Download FASCICOLO S5000 MULTI4A A4 (IT,EN,FR,RU)
Download S5000 conformity declaration (CE)
Download S5000 conformity declaration (CE ROHS)

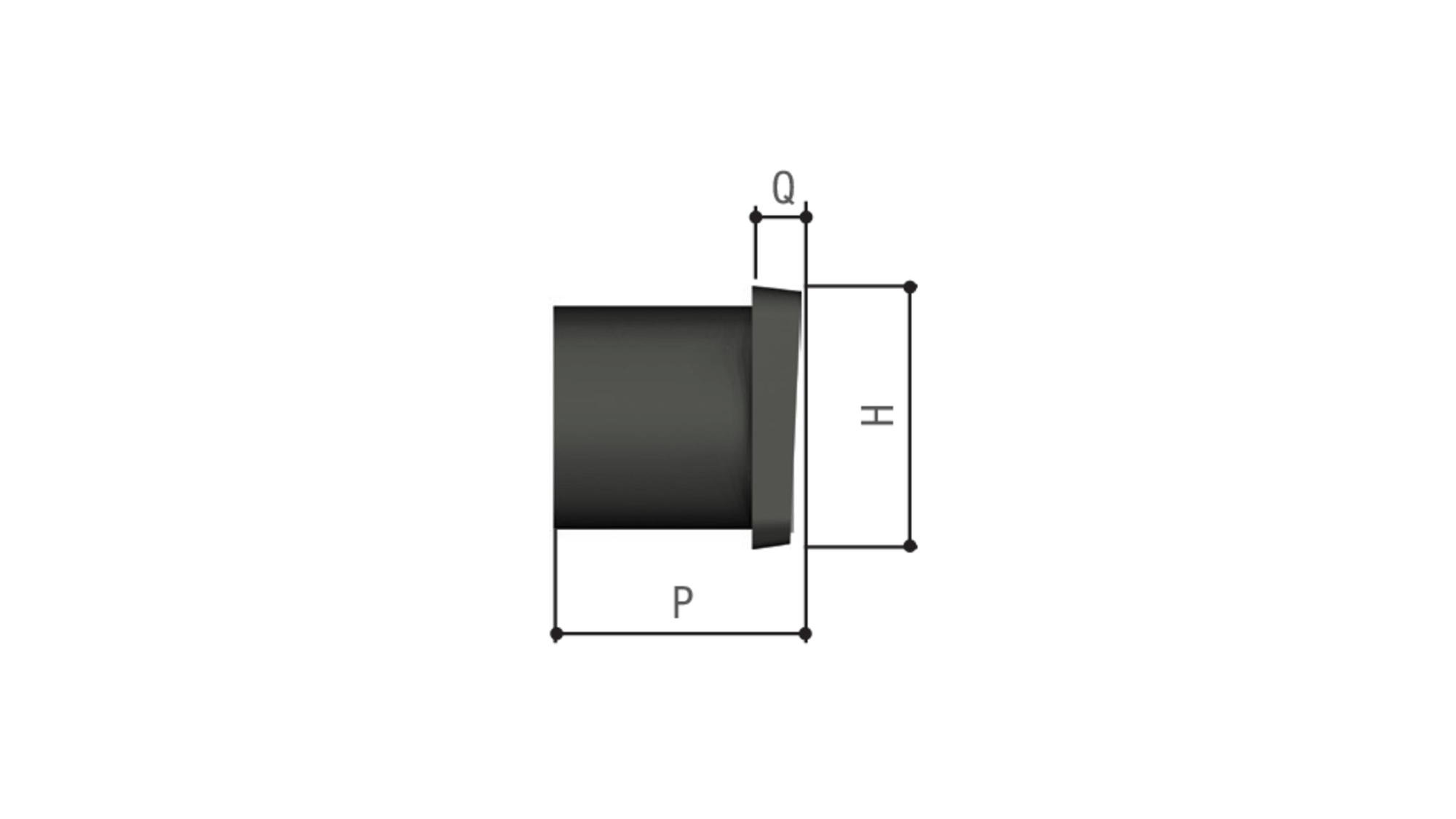

Recess-mounted keypad selector. 1,679,616 combinations.
Download FASCICOLO S6000/S7000 MULTI4A A4 (IT,EN,FR,RU)
Download S6000 conformity declaration (CE)
Download S7000. S6000 conformity declaration (CE ROHS)

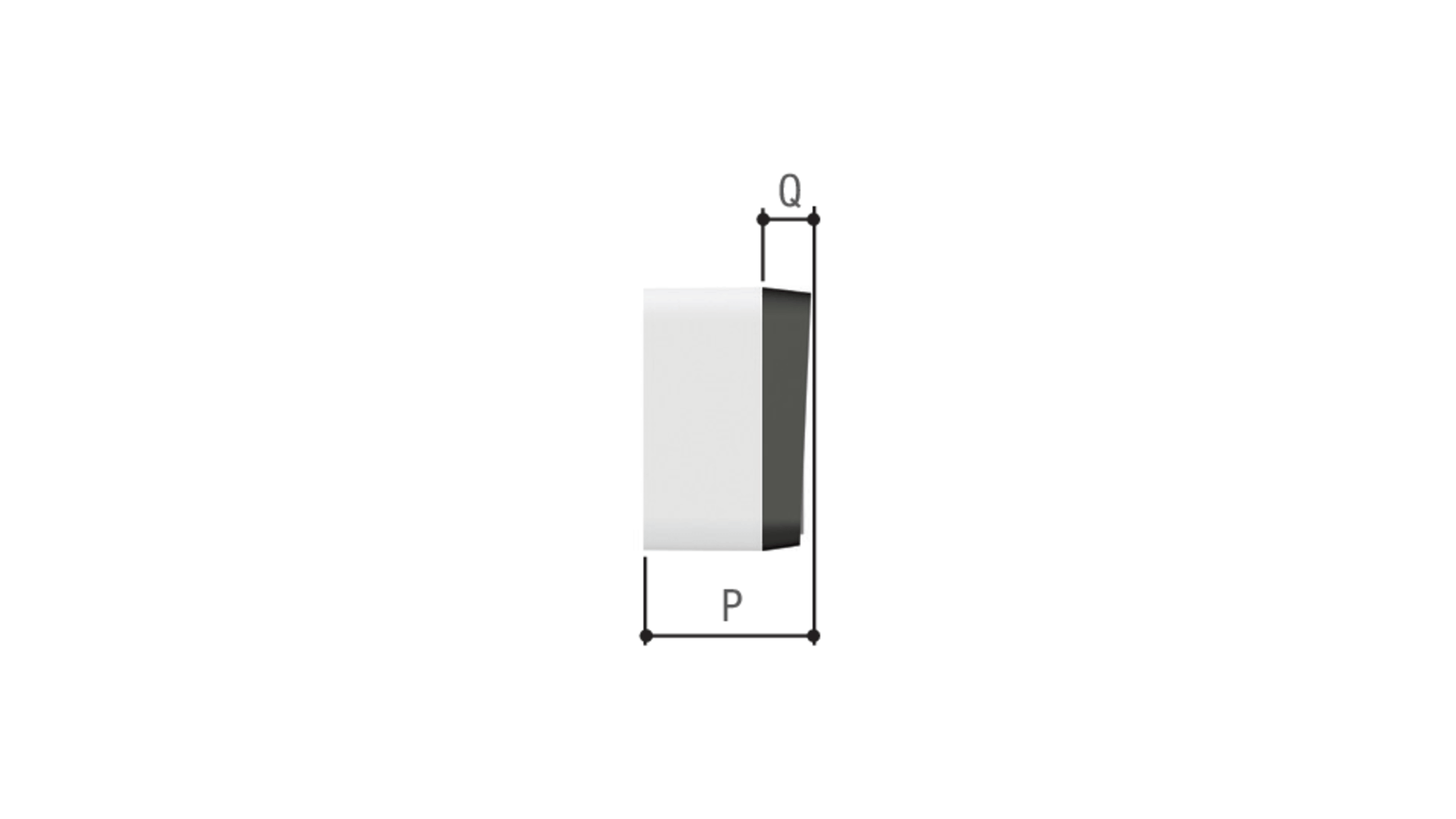

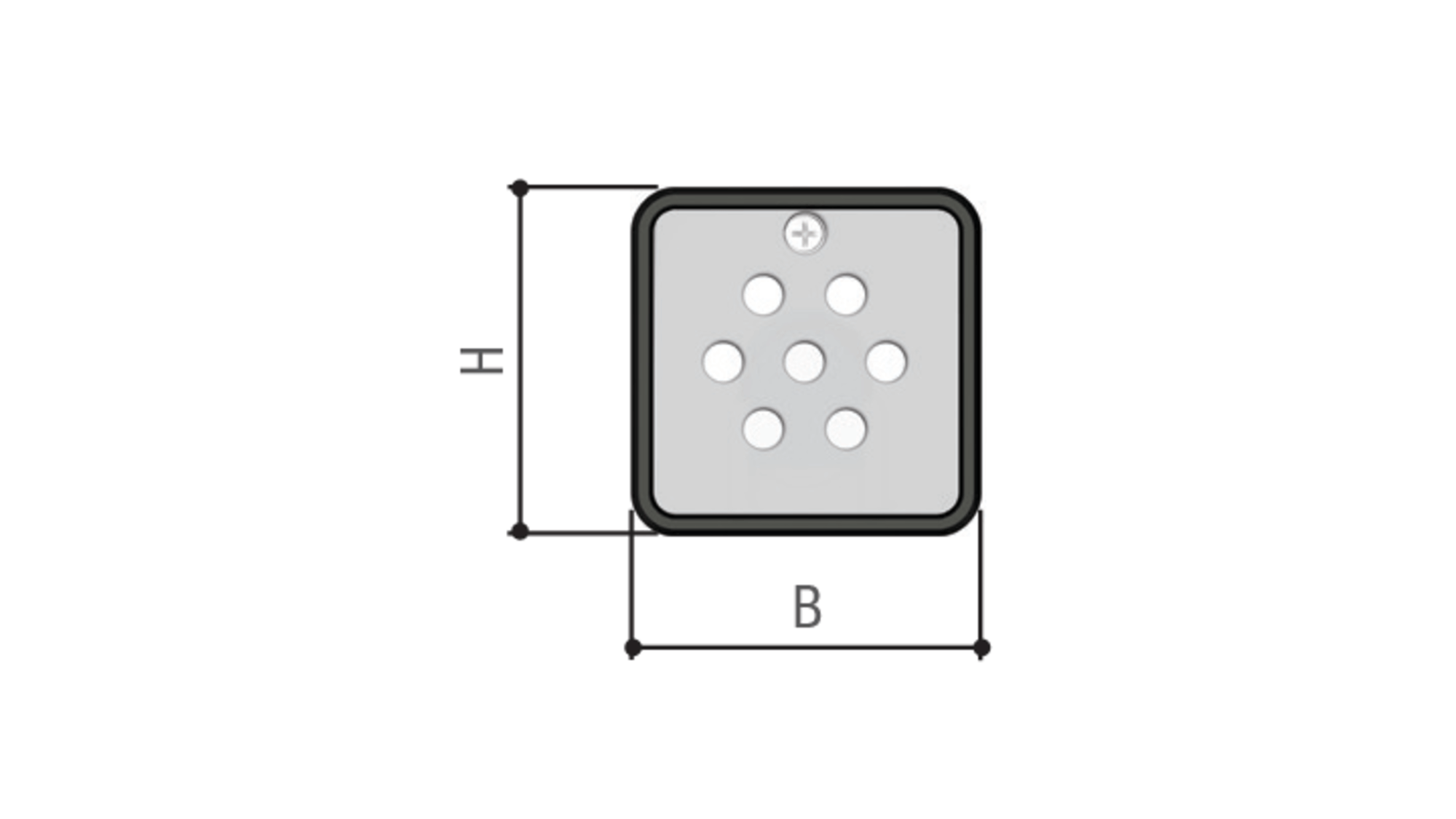

Surface-mounted keypad selector. 1,679,616 combinations.
Download FASCICOLO S6000/S7000 MULTI4A A4 (IT,EN,FR,RU)
Download S6000 conformity declaration (CE)
Download S7000. S6000 conformity declaration (CE ROHS)
Surface-mounted, 433.92 MHz, keypad selector with four memorizable codes and programming access password. 1,562,500 combinations (390,625 possible combinations for each code).
Download FASCICOLO S9000 MULTI4A A4 (IT, EN, FR, RU)
Download S9000 conformity declaration (CE RED)
S0002M - External, two-channel, 12 - 24 V AC - DC IP54 control card for keypads.
Download FASCICOLO S0001M/S0002M MULTI4A A3 (IT, EN, FR, RU)
Download S0001-2M conformity declaration (CE)
Download S0002M conformity declaration (CE ROHS)
433,92 MHz plug-in radio frequency card.
Download FASCICOLO AF315-AF43S-AF868 MULTI4A A5 (IT, EN, FR, RU)
Download AF43S. AF43SB conformity declaration (CE ROHS)
Download AF43S conformity declaration (CE RED)
Download AF43S conformity declaration (CE ROHS)
Two-channel 433.92 MHz surface-mounted IP54 12 - 24 V AC - DC receiver for storing up to 50 different users (codes), with TOP, TAM, ATOMO D, TWIN and TTS coding.
Download FASCICOLO RE432M-862M MULTI4A A4 (IT, EN, FR, RU)
Download RE432M conformity declaration (CE RED)
Download RE432M conformity declaration (CE ROHS)
Download RE432M RE862M conformity declaration (CE ROHS)
Post made of natural-finish, anodized aluminum.
Download FASCICOLO COLONNINA MULTI4A A4 (IT, EN, FR, RU)
Post made of black, anodized aluminum.
Download FASCICOLO COLONNINA MULTI4A A4 (IT, EN, FR, RU)
RBE4024 - Four-channel surface-mounted multi-user IP54 receiver module, 24 V AC - DC to store up to 3000 different users (codes), for TOP, TAM, ATOMO D, TWIN and TTS series.
Download FASCICOLO RBE40230-RBE4024 MULTI4 A5 (IT, EN, FR, RU)
Download RBE4024 conformity declaration (CE ROHS)
RBE4230 - Four-channel, external, multi-user IP54, 120 - 230 V AC for saving up to 3,000 different user codes, for the following series: TOP, TAM, ATOMO D, TWIN.
Download FASCICOLO RBE40230-RBE4024 MULTI4 A5 (IT, EN, FR, RU)
Download Radio declaration of conformity -
IP54, surface-mounted, four-channel, radio module, 12 - 24 V AC – DC.
Download FASCICOLO RBE4N MULTI12 (IT, EN, FR, DE, ES, NL, PT, PL, RU, HU, HR, UK)
Download RBE4N conformity declaration (CE RED)
Four-channel external radio module; IP54, 230 V AC.
Download FASCICOLO RBE42 MULTI4A A4 (IT, EN, FR, RU)
