Solution for applying in private homes and apartment buildings, on small and medium-sized gate posts
| MODELS | 801MB-0070 | 801MB-0050 | 801MB-0071 | 801MB-0110 | 801MB-0120 | 801MB-0111 | 801MB-0051 | 801MB-0121 | ||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LEAF OPENING (°) | A | B | D | E | C Max. | A | B | D | E | C Max. | A | B | D | E | C Max. | A | B | D | E | C Max. | A | B | D | E | C Max. | A | B | D | E | C Max. | A | B | D | E | C Max. | A | B | D | E | C Max. |
| 90 | 140 | 420 (490 with item 801XC-0070) | Min. 150 | 310 (410 with item 801XC-0070) | 150 (300 with item 801XC-0070) | 140 | 420 (490 with item 801XC-0070) | Min. 150 | 310 (410 with item 801XC-0070) | 150 (300 with item 801XC-0070) | 140 | 420 (490 con 801XC-0070) | Min. 150 | 310 (410 con 801XC-0070) | 150 (300 con 801XC-0070) | 140 | 420 (490 with item 801XC-0070) | Min. 150 | 310 (410 with item 801XC-0070) | 250 (300 with item 801XC-0070) | 140 | 420 (490 with item 801XC-0070) | Min. 150 | 310 (410 with item 801XC-0070) | 250 (300 with item 801XC-0070) | 140 | 420 (490 con 801XC-0070) | Min. 150 | 310 (410 con 801XC-0070) | 250 (300 con 801XC-0070) | 140 | 420 (490 con 801XC-0070) | Min. 150 | 310 (410 con 801XC-0070) | 150 (300 con 801XC-0070) | 140 | 420 (490 con 801XC-0070) | Min. 150 | 310 (410 con 801XC-0070) | 250 (300 con 801XC-0070) |
| 90 | 160 ÷ 180 | 380 (460 with item 801XC-0070) | Min. 150 | 310 (410 with item 801XC-0070) | 150 (300 with item 801XC-0070) | 160 ÷ 180 | 380 (460 with item 801XC-0070) | Min. 150 | 310 (410 with item 801XC-0070) | 150 (300 with item 801XC-0070) | 160 ÷ 180 | 380 (460 con 801XC-0070) | Min. 150 | 310 (410 con 801XC-0070) | 150 (300 con 801XC-0070) | 160 ÷ 180 | 380 (460 with item 801XC-0070) | Min. 150 | 310 (410 with item 801XC-0070) | 250 (300 with item 801XC-0070) | 160 ÷ 180 | 380 (460 with item 801XC-0070) | Min. 150 | 310 (410 with item 801XC-0070) | 250 (300 with item 801XC-0070) | 160 ÷ 180 | 380 (460 con 801XC-0070) | Min. 150 | 310 (410 con 801XC-0070) | 250 (300 con 801XC-0070) | 160 ÷ 180 | 380 (460 con 801XC-0070) | Min. 150 | 310 (410 con 801XC-0070) | 150 (300 con 801XC-0070) | 160 ÷ 180 | 380 (460 con 801XC-0070) | Min. 150 | 310 (410 con 801XC-0070) | 250 (300 con 801XC-0070) |
| 110 | 200 ÷ 220 | 400 (470 with item 801XC-0070) | Min. 150 | 310 (410 with item 801XC-0070) | 50 (300 with item 801XC-0070) | 200 ÷ 220 | 400 (470 with item 801XC-0070) | Min. 150 | 310 (410 with item 801XC-0070) | 50 (300 with item 801XC-0070) | 200 ÷ 220 | 400 (470 con 801XC-0070) | Min. 150 | 310 (410 con 801XC-0070) | 50 (300 con 801XC-0070) | 200 ÷ 220 | 400 (470 with item 801XC-0070) | Min. 150 | 310 (410 with item 801XC-0070) | 50 (300 with item 801XC-0070) | 200 ÷ 220 | 400 (470 with item 801XC-0070) | Min. 150 | 310 (410 with item 801XC-0070) | 50 (300 with item 801XC-0070) | 200 ÷ 220 | 400 (470 con 801XC-0070) | Min. 150 | 310 (410 con 801XC-0070) | 50 (300 con 801XC-0070) | 200 ÷ 220 | 400 (470 con 801XC-0070) | Min. 150 | 310 (410 con 801XC-0070) | 50 (300 con 801XC-0070) | 200 ÷ 220 | 400 (470 con 801XC-0070) | Min. 150 | 310 (410 con 801XC-0070) | 50 (300 con 801XC-0070) |
| MODELS | 801MB-0070 | 801MB-0050 | 801MB-0071 | 801MB-0110 | 801MB-0120 | 801MB-0111 | 801MB-0051 | 801MB-0121 |
|---|---|---|---|---|---|---|---|---|
| Protection rating (IP) | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 |
| Power supply (V - 50/60 Hz) | 230 AC | 230 AC | 230 AC | 230 AC | ||||
| Power supply to motor (V) | 24 DC | 24 DC | 24 DC | 24 DC | 24 DC | 24 DC | 24 DC | 24 DC |
| Absorption (A) | 4 Max. | 4 Max. | 4 Max. | 4 Max. | 4 Max. | 4 Max. | 4 Max. | 4 Max. |
| Power (W) | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
| Maneuvering time at 90° (s) | from 20 to 30 | from 20 to 30 | from 20 to 30 | from 20 to 30 | from 20 to 30 | from 20 to 30 | from 20 to 30 | from 20 to 30 |
| Cycles/Hour | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| Thrust (N) | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 |
| Operating temperature (°C) | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 |
FTX20DGC - Irreversible 24 V gearmotor featuring a control board with functions display, on-board radio decoding and hinged transmission arm with C Max. 150 mm for swing gates with up to 2 m leaves that weighs up to 200 kg. RAL7024-grey cover.
Download FASCICOLO FTX20DGC/DLC MULTI4 A5 (IT, EN, FR, RU)
Download FTX conformity declaration (CE)
FTX20DEC - Automazione irreversibile completa di scheda elettronica con display funzioni, decodifica radio incorporata e braccio snodato di trasmissione per cancelli a battente fino a 2 m per anta e C max. 150 mm. Cover grigio RAL7040.

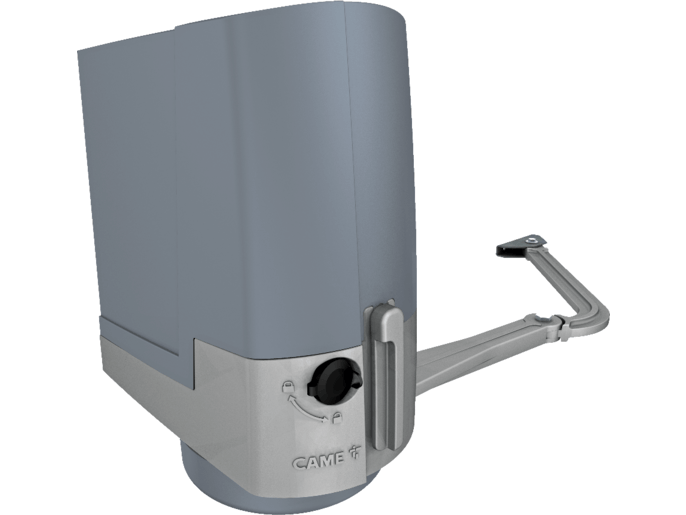

FTX20DLC - Irreversible 24 V gearmotor featuring a control board with functions display, on-board radio decoding and hinged transmission arm with C Max. 250 mm for swing gates with up to 2 m leaves that weighs up to 200 kg. RAL7024-grey cover.
Download FASCICOLO FTX20DGC/DLC MULTI4 A5 (IT, EN, FR, RU)
Download FTX conformity declaration (CE)
FTX20DCC - Automazione irreversibile completa di scheda elettronica con display funzioni, decodifica radio incorporata e braccio snodato di trasmissione per cancelli a battente fino a 2 m per anta e C max. 250 mm. Cover grigio RAL7040.
FTL20DGS - Irreversible 24 V operator with hinged transmission arm for swing gates with Max. C of 150 mm with leaves up to 2 m long that weighs up to 200 kg. RAL7024-gray cover.
Download FASCICOLO FTX20DGS/FTX20DLS MULTI4A A3R (IT, EN, FR, RU)
Download FTX conformity declaration (CE)
FTX20DES - Motoriduttore irreversibile con braccio di trasmissione snodato per cancelli a battente fino a 2 m per anta e C max. 150 mm. Cover grigio RAL7040.
FTX20DLS - Irreversible 24 V gearmotor with hinged transmission-arm with C Max. 250 mm for swing gates with up to 2 m leaves that weighs up to 200 kg. RAL7024-grey cover.
Download FASCICOLO FTX20DGS/FTX20DLS MULTI4A A3R (IT, EN, FR, RU)
Download FTX conformity declaration (CE)
FTX20DCS - Motoriduttore irreversibile con braccio di trasmissione snodato per cancelli a battente fino a 2 m per anta e C max. 250 mm. Cover grigio RAL7040.
Circuit board for emergency operation and battery charging.
Download FASCICOLO RLB MULTI4A A3 (IT, EN, FR, RU)
Download LB39 conformity declaration (CE)
Green Power module to disconnect the transformer for energy saving while the operator is not in use.
Download FASCICOLO RGP1 MULTI4A A3 (IT, EN, FR, RU)
Download RGP1 conformity declaration (CE)
Interface card for controlling two operators or for enabling the Came Remote Protocol.
Download FASCICOLO RSE MULTI (IT, EN, FR, DE, ES, NL)
Download RSE conformity declaration (CE)
Control board for decoding and access-control management via transponder selector.
Control board for decoding and access-control management via keypad selectors.
Single cylinder electric lock.
Download FASCICOLO LOCK81 / LOCK82 MULTI4A A5 (IT, EN, FR, RU)
Download LOCK conformity declaration (CE ROHS)
Double cylinder electric lock.
Download FASCICOLO LOCK81 / LOCK82 MULTI4A A5 (IT, EN, FR, RU)
Download LOCK conformity declaration (CE ROHS)
Straight drive arm and track with mechanical opening limit-switch.
Download FASCICOLO STYLO-BD MULTI4A A3 (IT, EN, FR, RU)
Case for remote release with customized key, plus pull-cord handle and control button. Cord length L = 5 m.
