SimpleKey 4 System Controller

SIMPLEKEY 4 SYSTEM CONTROLLER

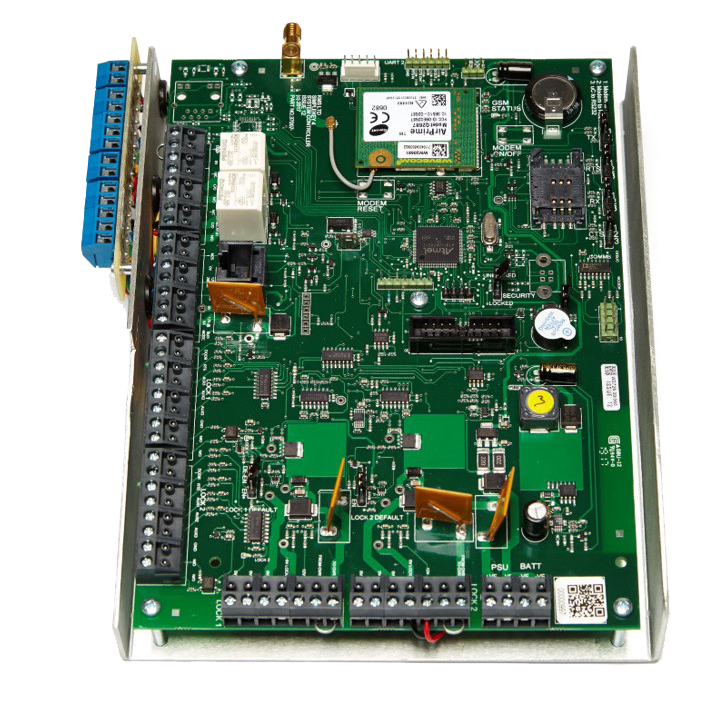

The SimpleKey 4 System Controller is the central component of the latest generation of the SimpleKey platform. Incorporating a number of innovative features enabling simpler installation, expansion and management. The SimpleKey 4 system controller has a built in GPRS modem for communications and connections for controlling the first two doors. The system can be easily expanded on a door by door basis using additional SimpleKey 4 Extension Kits on a free topography wiring bus.

System Controller - Features

Control for up to two doors, with lock outputs, door monitoring, emergency overrides and trades button control.
Multiple system controllers can be connected together and used at one location.
Real time GPRS communications with built in modem and pre-configured roaming SIM.
Bus based free topography architecture, utilising standard Cat 5 cabling for connection of additional components.
Optional detachable programming panel allowing local administration.
Cloud based management with individual QR code identification enabling simpler set-up and support.

Technical Information

Power Connections

12–15v input, 500mA (without auxiliary connections)
Optional battery back-up connection

Lock Outputs

2 lock outputs
N/O or N/C connection
Optional on-board power connection
Thermal cut-out protection

Monitoring and Control (2 door)

RTE connection
Door monitoring
Local emergency override
Global emergency override
Trades button control
2 programmable relay outputs

N.B; the above can be reprogrammed for other functions

Communication

Single coax connection to high gain aerial

Cabling

KMS Bus (used to connect the components is Cat 5 or above (open topography)
Lock – dependent on lock type and specification, (Twin 1mm²copper flex up to 1 Amp)

PCB Dimensions

210mm × 160mm × 50mm
