Key Features

  • Fully isolated system
  • Secured by Design compliant and tested
  • Remote lock release connector (SBD requirement)
  • Call waiting feature

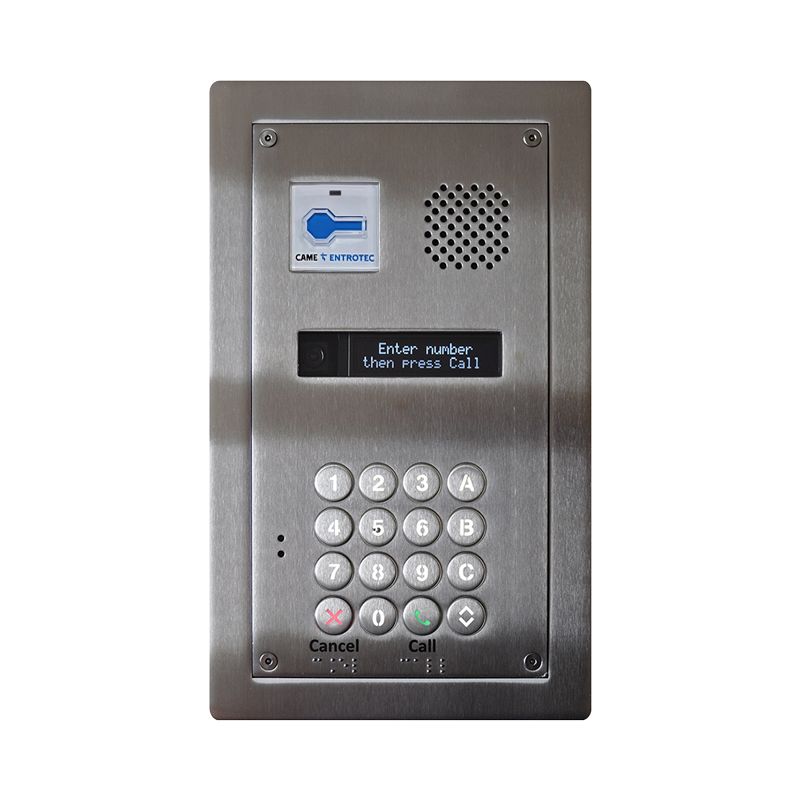

  • Stainless steel 2.5 BS316 Call panels
  • Type 17 or Type 23 panel sizes available
  • Multiple speech paths
  • Housed in IP66 steel cabinet with key locks
  • Optional DDA Blue / White, Yellow & Black tactile key & symbol reader
  • Controllers supplied in 8,16 and 24 way formats
  • Remote marshalling available in 8,16 and 24 way formats
  • Over 6000 flats on Apex system
  • Over 1000 digital and functional doors/system with configurable door zoning
  • DC system allowing for battery back-up, DC lock releases and maglocks (fused)

Key Features

continued...

  • Full handset isolation and switch adjustable time periods for all functions
  • Energy efficient White on Black OLED displaying panel instructions and call progress messages
  • Supplied with pressure sensitive buttons, vandal resistant buttons or DDA backlit keypad
  • Call reassurance tones at door panels with adjustable volume
  • Auto Dial features (dials without having to press CALL button)
  • Integrated coded access facility (10 codes)
  • Anti-tailgating function
  • Lock release times individually, adjustable between 1 & 60 seconds
  • Multi-block linkable for gated access systems
  • Auto GMT/BST timeclock for trades function
  • Modern OLED for block information and instructions
  • All overlap panels and bezelled back boxes have rounded corners

Optional Features

  • EntroNet Concierge System
  • Integrated proximity access control
  • Integrated panel camera or separate CCTV camera for video systems
  • Different colour and design finishes for panels and accessories (See back page for examples)
  • Full voice annunciations
  • Accessible features include use of different languages (4×4 keypad required)
  • Landing and lift control system

APEX and SimpleKey Web fully integrated solutions

CAME ENTROTEC and CAME KMS have been working closely to align systems and develop a comprehensive solution for a mix of private and public developments.

Fully integrating APEX door entry panels with the cloud-based SimpleKey Web access control system will enable both companies to collaboratively deliver a more complete solution for new build and existing developments.

FIND OUT MORE
T23-DIG T23-FUNC T17-DIG T17-FUNC
Box/Bezel Dimensions 289mm H x 174mm W x 64mm D 289mm H x 174mm W x 64mm D 398mm H x 182mm W x 64mm D 398mm H x 182mm W x 64mm D
Cutout Dimensions (minimum) 257mm H x 142mm W x 64mm D 257mm H x 142mm W x 64mm D 366mm H x 150mm W x 64mm D 366mm H x 150mm W x 64mm D
Display Organic Light-Emitting Diode (OLED) Organic Light-Emitting Diode (OLED) Organic Light-Emitting Diode (OLED) Organic Light-Emitting Diode (OLED)
System Supply Single Phase Mains Supply 230VAC @ 50Hz, Current Rated for Individual System Single Phase Mains Supply 230VAC @ 50Hz, Current Rated for Individual System Single Phase Mains Supply 230VAC @ 50Hz, Current Rated for Individual System Single Phase Mains Supply 230VAC @ 50Hz, Current Rated for Individual System
System Supply Output 13.8VDC - 18VDC, Rated for Individual System Requirements 13.8VDC - 18VDC, Rated for Individual System Requirements 13.8VDC - 18VDC, Rated for Individual System Requirements 13.8VDC - 18VDC, Rated for Individual System Requirements
Styles Overlap, bezelled or surface versions available Overlap, bezelled or surface versions available Overlap, bezelled or surface versions available Overlap, bezelled or surface versions available
Cabling CW1308 or Cat 5 CW1308 or Cat 5 CW1308 or Cat 5 CW1308 or Cat 5

Examples of the optional panel finishes available

Secured by Design Approved

As a Secured by Design Member Company, a range of CAME Entrotec’s Electronic Door Entry Systems and proximity access control systems, have been rigorously tested and certified to STS 202 BR 2 Level of Burglary Resistance, receiving Secured by Design Accreditation.

We have also tested and integrated our equipment with an increasing number of door manufacturers and security door sets to Pas24:2016, STS202 BR2, LPS1175 SR2 and SR3.

Contact us today for advice on system and design compliance with the latest security requirements for existing and new build dwellings.

FIND OUT MORE ABOUT SECURED BY DESIGN

Handsets

Apex is compatible with Entrotec ED3+ and ED4+ Audio handsets, EV and EV+ Video handsets and Vogue apartment stations.

Audio and Video handsets can also be mixed, with over 6000 handsets per system.

Accessories

A range of Door Entry accessories designed to work in conjunction with our Apex Door Entry System.

  • Fire Fighter Switches
  • Push to Exit Buttons
  • DDA Accessories
  • Controller Cabinet Accessories
  • Vandal Resistant Dome Camera
